ARMREST & VISOR
74221COVER, DOOR ARMREST, RH
74222COVER, DOOR ARMREST, LH
74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE
BLACK,TRIM0#,2#,4#
74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE
BLACK,TRIM0#,2#,4#
SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)
LUXURY&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM0#,2#,4#
74261COVER, REAR DOOR ARMREST, RH
74262COVER, REAR DOOR ARMREST, LH
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
BLACK,TRIM0#,2#,4#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
BLACK,TRIM0#,2#,4#
9046808048
main90468-08048

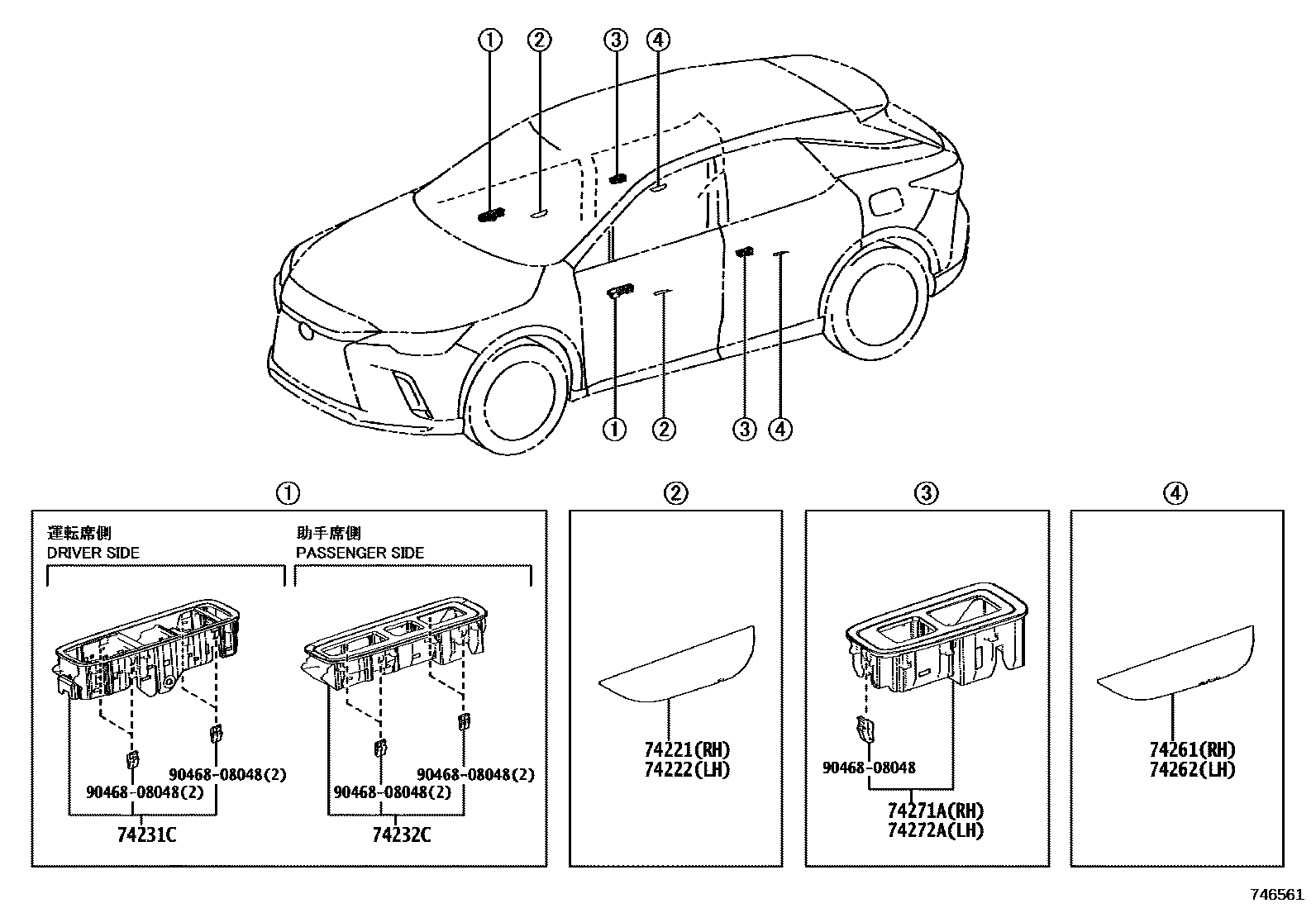

9 parts on this diagram · 2 diagrams in section
