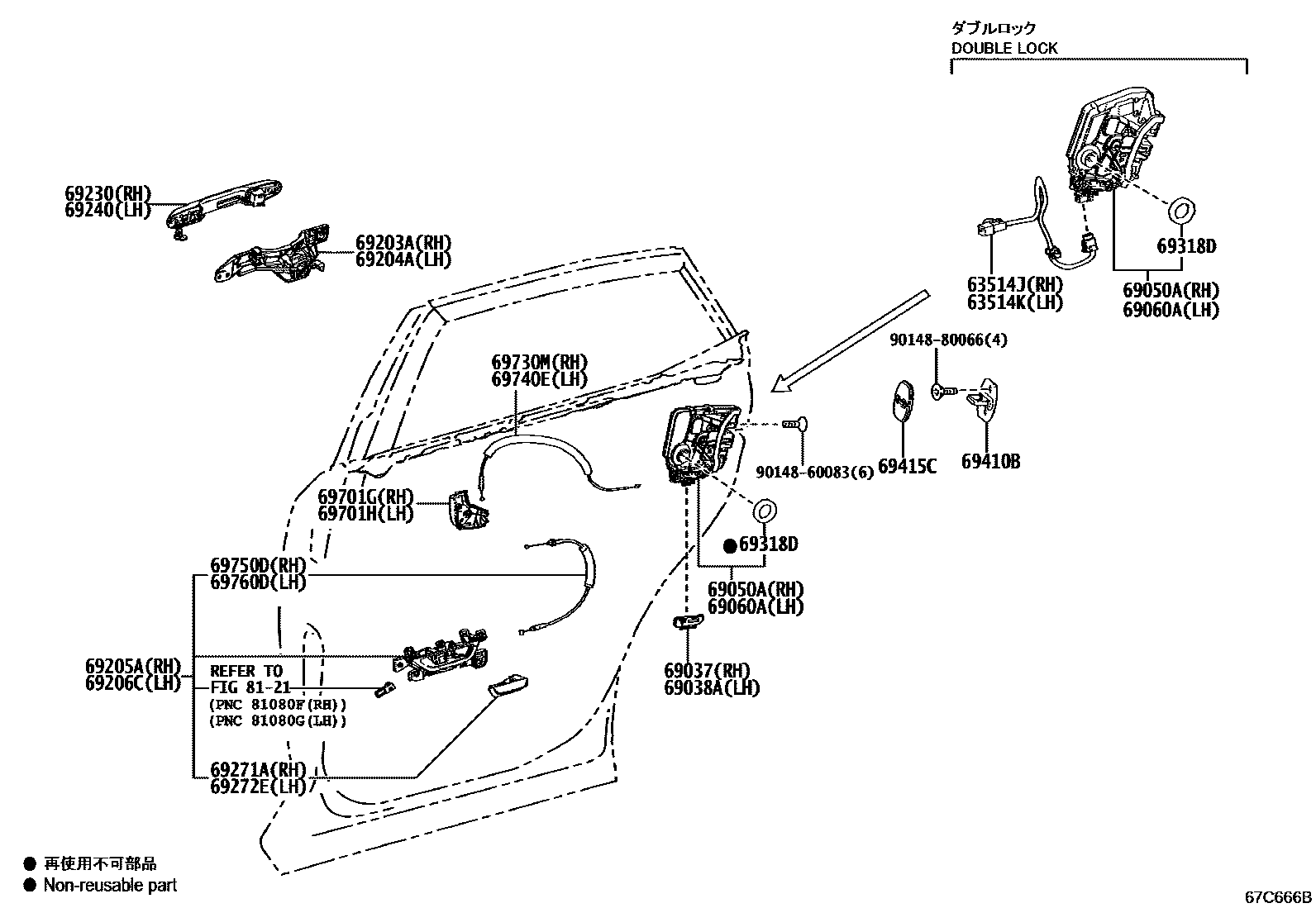

REAR DOOR LOCK & HANDLE

63514JWIRE, CONNECTOR, RH

main63514-48040iAALH15,16,TALA15,TALH17..EUR202211

63514KWIRE, CONNECTOR, LH

main63514-48050iAALH15,16,TALA15,TALH17..EUR202211

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-78010iAALH1#,SALA15,TALA1#,TALH17202211

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-78010iAALH1#,SALA15,TALA1#,TALH17202211

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-78030iAALH1#,SALA15,TALA1#,TALH17..CHI,GCC,GEN202211

INDIA SPEC

main69050-78040iAALH15,16,TALA15,TALH17..EUR202211

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-78030iAALH1#,SALA15,TALA1#,TALH17..CHI,GCC,GEN202211

INDIA SPEC

main69060-78040iAALH15,16,TALA15,TALH17..EUR202211

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-48080iAALH1#,SALA15,TALA1#,TALH17202211

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-48080iAALH1#,SALA15,TALA1#,TALH17202211

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69070-48021iAALH16..CHI202211-202509

main69070-48041iTALH17202211-202410

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

main69070-48130iAALH16..EUR,GEN;AALH10,15,SALA15,TALA1#202410

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69080-48021iAALH16..EUR,GEN;AALH10,15,SALA15,TALA1#202211-202509

main69080-48041iTALH17202211-202410

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

main69080-48120iTALH17202410

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-48150-A0iTALA15,TALH17..GCC202211-202302

WHITE NOVA GF.,083

sub69210-48152

sub69210-48151

main69210-48150-A1iAALH15,TALA15..GCC202211-202302

SONIC QUARTZ,085

sub69210-48152

sub69210-48151

main69210-48150-B1iAALH15,TALA15,TALH17..GCC202211-202302

SONIC IRIDIUM,1L2

sub69210-48152

sub69210-48151

main69210-48150-B2iAALH15,TALA15..GCC202211-202302

SONIC TITANIUM,1J7

sub69210-48152

sub69210-48151

main69210-48150-B3iAALH15,TALA15,TALH17..GCC202211-202302

SONIC CHROME,1L1

sub69210-48152

sub69210-48151

main69210-48150-C0iAALH15,TALA15,TALH17..GCC202211-202302

GRAPHITE BLACK GF.,223

sub69210-48152

sub69210-48151

main69210-48150-D0iAALH15,TALA15..GCC202211-202302

RED MC.CS.,3R1

sub69210-48152

sub69210-48151

main69210-48150-E0iAALH15,TALA15,TALH17..GCC202211-202302

SONIC COPPER,4Y5

sub69210-48152

sub69210-48151

main69210-48150-G0iAALH15,TALA15..GCC202211-202302

TERRANE KHAKI M.M.,6X4

sub69210-48152

sub69210-48151

main69210-48150-J0iAALH15,TALA15..GCC202211-202302

DEEP BLUE MC.,8X5

sub69210-48152

sub69210-48151

main69210-48150-J2iTALA15,TALH17..GCC202211-202302

HEAT BLUE CONTRAST LAYERI,8X1

sub69210-48152

sub69210-48151

main69210-48151-A0iTALA15,TALH17..GCC202303-202304

WHITE NOVA GF.,083

sub69210-48152

main69210-48151-A1iAALH15,TALA15..GCC202303-202304

SONIC QUARTZ,085

sub69210-48152

main69210-48151-B1iAALH15,TALA15,TALH17..GCC202303-202304

SONIC IRIDIUM,1L2

sub69210-48152

main69210-48151-B2iAALH15,TALA15..GCC202303-202304

SONIC TITANIUM,1J7

sub69210-48152

main69210-48151-B3iAALH15,TALA15,TALH17..GCC202303-202304

SONIC CHROME,1L1

sub69210-48152

main69210-48151-C0iAALH15,TALA15,TALH17..GCC202303-202304

GRAPHITE BLACK GF.,223

sub69210-48152

main69210-48151-D0iAALH15,TALA15..GCC202303-202304

RED MC.CS.,3R1

sub69210-48152

main69210-48151-E0iAALH15,TALA15,TALH17..GCC202303-202304

SONIC COPPER,4Y5

sub69210-48152

main69210-48151-G0iAALH15,TALA15..GCC202303-202304

TERRANE KHAKI M.M.,6X4

sub69210-48152

main69210-48151-J0iAALH15,TALA15..GCC202303-202304

DEEP BLUE MC.,8X5

sub69210-48152

main69210-48151-J2iTALA15,TALH17..GCC202303-202304

HEAT BLUE CONTRAST LAYERI,8X1

sub69210-48152

main69210-48152-A0iAALH15,TALA15,TALH17..GCC202304

WHITE NOVA GF.,083

main69210-48152-A1iAALH15,TALA15..GCC202304-202509

SONIC QUARTZ,085

main69210-48152-B1iAALH15,TALA15,TALH17..GCC202304

SONIC IRIDIUM,1L2

main69210-48152-B2iAALH15,TALA15..GCC202304

SONIC TITANIUM,1J7

main69210-48152-B3iAALH15,TALA15,TALH17..GCC202304

SONIC CHROME,1L1

main69210-48152-C0iAALH15,TALA15,TALH17..GCC202304

GRAPHITE BLACK GF.,223

main69210-48152-D0iAALH15,TALA15..GCC202304

RED MC.CS.,3R1

main69210-48152-E0iAALH15,TALA15,TALH17..GCC202304

SONIC COPPER,4Y5

main69210-48152-G0iAALH15,TALA15..GCC202304

TERRANE KHAKI M.M.,6X4

main69210-48152-J0iAALH15,TALA15..GCC202304

DEEP BLUE MC.,8X5

main69210-48152-J2iTALA15,TALH17..GCC202304

HEAT BLUE CONTRAST LAYERI,8X1

main69210-48160-A0iAALH15,16..EUR;TALA15,TALH17..CHI,EUR,GEN202211-202302

WHITE NOVA GF.,083

sub69210-48162

sub69210-48161

main69210-48160-A1iAALH1#,TALA1#..CHI,EUR,GEN202211-202302

SONIC QUARTZ,085

sub69210-48162

sub69210-48161

main69210-48160-B0iAALH1#,TALA1#..CHI,EUR,GEN202211-202302

SONIC TITANIUM,1J7

sub69210-48162

sub69210-48161

main69210-48160-B1iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202211-202302

SONIC CHROME,1L1

sub69210-48162

sub69210-48161

main69210-48160-B2iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202211-202302

SONIC IRIDIUM,1L2

sub69210-48162

sub69210-48161

main69210-48160-C0iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202211-202302

GRAPHITE BLACK GF.,223

sub69210-48162

sub69210-48161

main69210-48160-D0iAALH1#,TALA1#..CHI,EUR,GEN202211-202302

RED MC.CS.,3R1

sub69210-48162

sub69210-48161

main69210-48160-E0iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202211-202302

SONIC COPPER,4Y5

sub69210-48162

sub69210-48161

main69210-48160-G0iAALH1#,TALA1#..CHI,EUR,GEN202211-202302

TERRANE KHAKI M.M.,6X4

sub69210-48162

sub69210-48161

main69210-48160-J0iAALH15,16..EUR;TALA15,TALH17..CHI,EUR,GEN202211-202302

HEAT BLUE CONTRAST LAYERI,8X1

sub69210-48162

sub69210-48161

main69210-48160-J1iAALH1#,TALA1#..CHI,EUR,GEN202211-202302

DEEP BLUE MC.,8X5

sub69210-48162

sub69210-48161

main69210-48161-A0iAALH15,16..EUR;TALA15,TALH17..CHI,EUR,GEN202303-202304

WHITE NOVA GF.,083

sub69210-48162

main69210-48161-A1iAALH1#,TALA1#..CHI,EUR,GEN202303-202304

SONIC QUARTZ,085

sub69210-48162

main69210-48161-B0iAALH1#,TALA1#..CHI,EUR,GEN202303-202304

SONIC TITANIUM,1J7

sub69210-48162

main69210-48161-B1iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202303-202304

SONIC CHROME,1L1

sub69210-48162

main69210-48161-B2iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202303-202304

SONIC IRIDIUM,1L2

sub69210-48162

main69210-48161-C0iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202303-202304

GRAPHITE BLACK GF.,223

sub69210-48162

main69210-48161-D0iAALH1#,TALA1#..CHI,EUR,GEN202303-202304

RED MC.CS.,3R1

sub69210-48162

main69210-48161-E0iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202303-202304

SONIC COPPER,4Y5

sub69210-48162

main69210-48161-G0iAALH1#,TALA1#..CHI,EUR,GEN202303-202304

TERRANE KHAKI M.M.,6X4

sub69210-48162

main69210-48161-J0iAALH15,16..EUR;TALA15,TALH17..CHI,EUR,GEN202303-202304

HEAT BLUE CONTRAST LAYERI,8X1

sub69210-48162

main69210-48161-J1iAALH1#,TALA1#..CHI,EUR,GEN202303-202304

DEEP BLUE MC.,8X5

sub69210-48162

main69210-48162-A0iAALH1#,SALA15,TALA1#,TALH17..CHI,EUR,GEN202304

WHITE NOVA GF.,083

main69210-48162-A1iAALH1#,SALA15,TALA1#..CHI,EUR,GEN202304-202509

SONIC QUARTZ,085

main69210-48162-B0iAALH1#,SALA15,TALA1#..CHI,EUR,GEN202304

SONIC TITANIUM,1J7

main69210-48162-B1iAALH1#,SALA15,TALA1#,TALH17..CHI,EUR,GEN202304

SONIC CHROME,1L1

main69210-48162-B2iAALH1#,SALA15,TALA1#,TALH17..CHI,EUR,GEN202304

SONIC IRIDIUM,1L2

main69210-48162-C0iAALH1#,SALA15,TALA1#,TALH17..CHI,EUR,GEN202304

GRAPHITE BLACK GF.,223

main69210-48162-D0iAALH1#,SALA15,TALA1#..CHI,EUR,GEN202304

RED MC.CS.,3R1

main69210-48162-E0iAALH1#,SALA15,TALA1#,TALH17..CHI,EUR,GEN202304

SONIC COPPER,4Y5

main69210-48162-G0iAALH1#,SALA15,TALA1#..CHI,EUR,GEN202304

TERRANE KHAKI M.M.,6X4

main69210-48162-J0iAALH15,16..EUR;TALA15,TALH17..CHI,EUR,GEN202304

HEAT BLUE CONTRAST LAYERI,8X1

main69210-48162-J1iAALH1#,SALA15,TALA1#..CHI,EUR,GEN202304

DEEP BLUE MC.,8X5

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-48090-A0iTALA15,TALH17..GCC202211-202302

WHITE NOVA GF.,083

sub69220-48092

sub69220-48091

main69220-48090-A1iAALH15,TALA15..GCC202211-202302

SONIC QUARTZ,085

sub69220-48092

sub69220-48091

main69220-48090-B1iAALH15,TALA15,TALH17..GCC202211-202302

SONIC IRIDIUM,1L2

sub69220-48092

sub69220-48091

main69220-48090-B2iAALH15,TALA15..GCC202211-202302

SONIC TITANIUM,1J7

sub69220-48092

sub69220-48091

main69220-48090-B3iAALH15,TALA15,TALH17..GCC202211-202302

SONIC CHROME,1L1

sub69220-48092

sub69220-48091

main69220-48090-C0iAALH15,TALA15,TALH17..GCC202211-202302

GRAPHITE BLACK GF.,223

sub69220-48092

sub69220-48091

main69220-48090-D0iAALH15,TALA15..GCC202211-202302

RED MC.CS.,3R1

sub69220-48092

sub69220-48091

main69220-48090-E0iAALH15,TALA15,TALH17..GCC202211-202302

SONIC COPPER,4Y5

sub69220-48092

sub69220-48091

main69220-48090-G0iAALH15,TALA15..GCC202211-202302

TERRANE KHAKI M.M.,6X4

sub69220-48092

sub69220-48091

main69220-48090-J0iAALH15,TALA15..GCC202211-202302

DEEP BLUE MC.,8X5

sub69220-48092

sub69220-48091

main69220-48090-J2iTALA15,TALH17..GCC202211-202302

HEAT BLUE CONTRAST LAYERI,8X1

sub69220-48092

sub69220-48091

main69220-48091-A0iTALA15,TALH17..GCC202303-202304

WHITE NOVA GF.,083

sub69220-48092

main69220-48091-A1iAALH15,TALA15..GCC202303-202304

SONIC QUARTZ,085

sub69220-48092

main69220-48091-B1iAALH15,TALA15,TALH17..GCC202303-202304

SONIC IRIDIUM,1L2

sub69220-48092

main69220-48091-B2iAALH15,TALA15..GCC202303-202304

SONIC TITANIUM,1J7

sub69220-48092

main69220-48091-B3iAALH15,TALA15,TALH17..GCC202303-202304

SONIC CHROME,1L1

sub69220-48092

main69220-48091-C0iAALH15,TALA15,TALH17..GCC202303-202304

GRAPHITE BLACK GF.,223

sub69220-48092

main69220-48091-D0iAALH15,TALA15..GCC202303-202304

RED MC.CS.,3R1

sub69220-48092

main69220-48091-E0iAALH15,TALA15,TALH17..GCC202303-202304

SONIC COPPER,4Y5

sub69220-48092

main69220-48091-G0iAALH15,TALA15..GCC202303-202304

TERRANE KHAKI M.M.,6X4

sub69220-48092

main69220-48091-J0iAALH15,TALA15..GCC202303-202304

DEEP BLUE MC.,8X5

sub69220-48092

main69220-48091-J2iTALA15,TALH17..GCC202303-202304

HEAT BLUE CONTRAST LAYERI,8X1

sub69220-48092

main69220-48092-A0iAALH15,TALA15,TALH17..GCC202304

WHITE NOVA GF.,083

main69220-48092-A1iAALH15,TALA15..GCC202304-202509

SONIC QUARTZ,085

main69220-48092-B1iAALH15,TALA15,TALH17..GCC202304

SONIC IRIDIUM,1L2

main69220-48092-B2iAALH15,TALA15..GCC202304

SONIC TITANIUM,1J7

main69220-48092-B3iAALH15,TALA15,TALH17..GCC202304

SONIC CHROME,1L1

main69220-48092-C0iAALH15,TALA15,TALH17..GCC202304

GRAPHITE BLACK GF.,223

main69220-48092-D0iAALH15,TALA15..GCC202304

RED MC.CS.,3R1

main69220-48092-E0iAALH15,TALA15,TALH17..GCC202304

SONIC COPPER,4Y5

main69220-48092-G0iAALH15,TALA15..GCC202304

TERRANE KHAKI M.M.,6X4

main69220-48092-J0iAALH15,TALA15..GCC202304

DEEP BLUE MC.,8X5

main69220-48092-J2iTALA15,TALH17..GCC202304

HEAT BLUE CONTRAST LAYERI,8X1

main69220-48100-A0iAALH15,16..EUR;TALA15,TALH17..CHI,EUR,GEN202211-202302

WHITE NOVA GF.,083

sub69220-48102

sub69220-48101

main69220-48100-A1iAALH1#,TALA1#..CHI,EUR,GEN202211-202302

SONIC QUARTZ,085

sub69220-48102

sub69220-48101

main69220-48100-B0iAALH1#,TALA1#..CHI,EUR,GEN202211-202302

SONIC TITANIUM,1J7

sub69220-48102

sub69220-48101

main69220-48100-B1iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202211-202302

SONIC CHROME,1L1

sub69220-48102

sub69220-48101

main69220-48100-B2iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202211-202302

SONIC IRIDIUM,1L2

sub69220-48102

sub69220-48101

main69220-48100-C0iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202211-202302

GRAPHITE BLACK GF.,223

sub69220-48102

sub69220-48101

main69220-48100-D0iAALH1#,TALA1#..CHI,EUR,GEN202211-202302

RED MC.CS.,3R1

sub69220-48102

sub69220-48101

main69220-48100-E0iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202211-202302

SONIC COPPER,4Y5

sub69220-48102

sub69220-48101

main69220-48100-G0iAALH1#,TALA1#..CHI,EUR,GEN202211-202302

TERRANE KHAKI M.M.,6X4

sub69220-48102

sub69220-48101

main69220-48100-J0iAALH15,16..EUR;TALA15,TALH17..CHI,EUR,GEN202211-202302

HEAT BLUE CONTRAST LAYERI,8X1

sub69220-48102

sub69220-48101

main69220-48100-J1iAALH1#,TALA1#..CHI,EUR,GEN202211-202302

DEEP BLUE MC.,8X5

sub69220-48102

sub69220-48101

main69220-48101-A0iAALH15,16..EUR;TALA15,TALH17..CHI,EUR,GEN202303-202304

WHITE NOVA GF.,083

sub69220-48102

main69220-48101-A1iAALH1#,TALA1#..CHI,EUR,GEN202303-202304

SONIC QUARTZ,085

sub69220-48102

main69220-48101-B0iAALH1#,TALA1#..CHI,EUR,GEN202303-202304

SONIC TITANIUM,1J7

sub69220-48102

main69220-48101-B1iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202303-202304

SONIC CHROME,1L1

sub69220-48102

main69220-48101-B2iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202303-202304

SONIC IRIDIUM,1L2

sub69220-48102

main69220-48101-C0iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202303-202304

GRAPHITE BLACK GF.,223

sub69220-48102

main69220-48101-D0iAALH1#,TALA1#..CHI,EUR,GEN202303-202304

RED MC.CS.,3R1

sub69220-48102

main69220-48101-E0iAALH1#,TALA1#,TALH17..CHI,EUR,GEN202303-202304

SONIC COPPER,4Y5

sub69220-48102

main69220-48101-G0iAALH1#,TALA1#..CHI,EUR,GEN202303-202304

TERRANE KHAKI M.M.,6X4

sub69220-48102

main69220-48101-J0iAALH15,16..EUR;TALA15,TALH17..CHI,EUR,GEN202303-202304

HEAT BLUE CONTRAST LAYERI,8X1

sub69220-48102

main69220-48101-J1iAALH1#,TALA1#..CHI,EUR,GEN202303-202304

DEEP BLUE MC.,8X5

sub69220-48102

main69220-48102-A0iAALH1#,SALA15,TALA1#,TALH17..CHI,EUR,GEN202304

WHITE NOVA GF.,083

main69220-48102-A1iAALH1#,SALA15,TALA1#..CHI,EUR,GEN202304-202509

SONIC QUARTZ,085

main69220-48102-B0iAALH1#,SALA15,TALA1#..CHI,EUR,GEN202304

SONIC TITANIUM,1J7

main69220-48102-B1iAALH1#,SALA15,TALA1#,TALH17..CHI,EUR,GEN202304

SONIC CHROME,1L1

main69220-48102-B2iAALH1#,SALA15,TALA1#,TALH17..CHI,EUR,GEN202304

SONIC IRIDIUM,1L2

main69220-48102-C0iAALH1#,SALA15,TALA1#,TALH17..CHI,EUR,GEN202304

GRAPHITE BLACK GF.,223

main69220-48102-D0iAALH1#,SALA15,TALA1#..CHI,EUR,GEN202304

RED MC.CS.,3R1

main69220-48102-E0iAALH1#,SALA15,TALA1#,TALH17..CHI,EUR,GEN202304

SONIC COPPER,4Y5

main69220-48102-G0iAALH1#,SALA15,TALA1#..CHI,EUR,GEN202304

TERRANE KHAKI M.M.,6X4

main69220-48102-J0iAALH15,16..EUR;TALA15,TALH17..CHI,EUR,GEN202304

HEAT BLUE CONTRAST LAYERI,8X1

main69220-48102-J1iAALH1#,SALA15,TALA1#..CHI,EUR,GEN202304

DEEP BLUE MC.,8X5

69271AHANDLE, REAR DOOR INSIDE, RH

main69271-48020iAALH1#,SALA15,TALA1#,TALH17202211

69272EHANDLE, REAR DOOR INSIDE, LH

main69272-48020iAALH1#,SALA15,TALA1#,TALH17202211

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iAALH1#,SALA15,TALA1#,TALH17202211

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33030iAALH1#,SALA15,TALA1#,TALH17202211

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-60020iAALH1#,SALA15,TALA1#,TALH17202211

69701GBELLCRANK SUB-ASSY, REAR DOOR LOCK CONTROL, UPPER, RH

main69701-48030iAALH1#,SALA15,TALA1#,TALH17202211

69701HBELLCRANK SUB-ASSY, REAR DOOR LOCK CONTROL, UPPER, LH

main69701-48040iAALH1#,SALA15,TALA1#,TALH17202211

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-48110iAALH1#,SALA15,TALA1#,TALH17202211

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-48110iAALH1#,SALA15,TALA1#,TALH17202211

69750DCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69750-48130iTALH17202211-202509

main69750-48190iTALH17202410

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

69760DCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69750-48130iTALH17202211-202509

main69750-48190iTALH17202410

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

8121

9014860083

main90148-60083

9014880066

main90148-80066

26 parts on this diagram · 1 diagram in section
