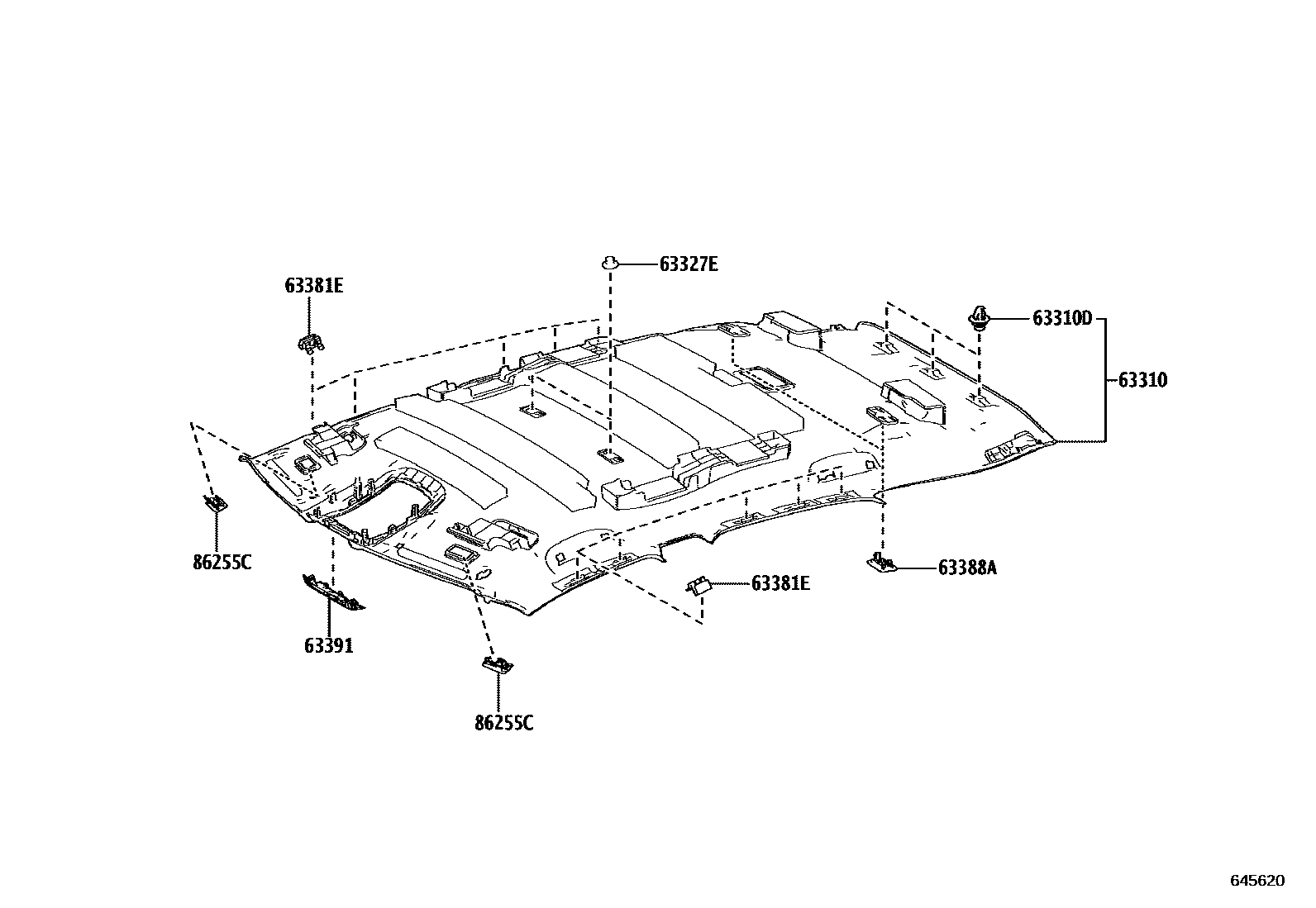

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1MOON ROOF 0003 1PANORAMA ROOF

63310HEADLINING ASSY, ROOF

main63310-48720-A0iTALA10;TALA15..GCC202211-202410

WHITE,TRIM00,01,02,03

main63310-48720-A0iTALA15..EUR,GEN202211-202410

WHITE,TRIM0#

main63310-48720-C0iTALA15..GCC202211-202410

BLACK,TRIM2#,3#,4#

main63310-48720-C0iTALA15..GCC202211-202410

BLACK,TRIM04,1#,2#,3#,4#

main63310-48720-C0iTALA15..GCC202211-202410

BLACK,TRIM1#,2#,4#

main63310-48720-C0iTALA15..GCC202211-202410

BLACK,TRIM0#,2#,3#,4#

main63310-48720-C0iTALH17..GCC202211-202410

BLACK,TRIM1#,2#,3#,4#

main63310-48721-A1iTALA10202410

FROMAGE,TRIM0#

main63310-48721-A1iTALA10202410

FROMAGE,TRIM01,02,03

main63310-48721-C0iTALH17..EUR,GEN202410

BLACK,TRIM2#,4#

main63310-48721-C0iTALH17..EUR,GEN202410

BLACK,TRIM0#,2#,3#

main63310-48721-C0iTALA15..EUR,GEN202410

BLACK,TRIM04,2#,3#,4#

main63310-48730-A0iAALH1#..EUR,GCC,GEN202211-202410

WHITE,TRIM0#

main63310-48730-C0iAALH1#..EUR,GCC,GEN202211-202410

BLACK,TRIM1#,2#,4#

main63310-48731-A1iAALH1#..EUR,GEN202410

FROMAGE,TRIM0#

main63310-48731-C0iAALH1#..EUR,GEN202410

BLACK,TRIM2#,4#

main63310-48740-A0iTALA15202211-202410

MOON ROOF-WITH(TILT & SLIDE),WHITE,TRIM0#

main63310-48740-A0iTALA15202211-202410

MOON ROOF-WITH(TILT & SLIDE),WHITE,TRIM00,01,02,03

main63310-48740-C0iTALH17..EUR,GCC,GEN202211-202410

MOON ROOF-WITH(TILT & SLIDE),BLACK,TRIM0#,2#,3#,4#

main63310-48740-C0iTALH17..CHI202211-202410

BLACK,TRIM0#,2#,3#,4#

main63310-48740-C0iTALH17..CHI202211-202410

MOON ROOF-WITH(TILT & SLIDE),BLACK,TRIM04,1#,2#,3#,4#

main63310-48740-C0iTALH17..CHI202211-202410

MOON ROOF-WITH(TILT & SLIDE),BLACK,TRIM1#,2#,4#

main63310-48741-A1iTALA15..EUR,GEN202410

MOON ROOF-WITH(TILT & SLIDE),FROMAGE,TRIM0#

main63310-48741-A1iTALA10202410

MOON ROOF-WITH(TILT & SLIDE),FROMAGE,TRIM01,02,03

main63310-48741-A1iTALA10202410

FROMAGE,TRIM0#

main63310-48741-A1iTALA10202410

FROMAGE,TRIM01,02,03

main63310-48741-C0iTALH17..CHI,GCC202410

MOON ROOF-WITH(TILT & SLIDE),BLACK,TRIM04,2#,3#,4#

main63310-48741-C0iTALA15..GCC202410

BLACK,TRIM04,2#,3#,4#

main63310-48741-C0iTALA15..GCC202410

BLACK,TRIM0#,2#,3#

main63310-48741-C0iTALA15..GCC202410

BLACK,TRIM2#,4#

main63310-48741-C0iTALA15..GCC202410

MOON ROOF-WITH(TILT & SLIDE),BLACK,TRIM2#,4#

main63310-48741-C0iTALA15..GCC202410

MOON ROOF-WITH(TILT & SLIDE),BLACK,TRIM0#,2#,3#

main63310-48750-A0iAALH1#..CHI202211-202410

MOON ROOF-WITH(TILT & SLIDE),WHITE,TRIM0#

main63310-48750-A0iAALH1#..EUR,GCC,GEN202211-202410

WHITE,TRIM0#

main63310-48750-C0iAALH1#..EUR,GCC,GEN202211-202410

MOON ROOF-WITH(TILT & SLIDE),BLACK,TRIM1#,2#,4#

main63310-48750-C0iAALH1#..CHI202211-202410

BLACK,TRIM1#,2#,4#

main63310-48751-A1iAALH1#..CHI,GCC202410

FROMAGE,TRIM0#

main63310-48751-A1iAALH1#..EUR,GEN202410

MOON ROOF-WITH(TILT & SLIDE),FROMAGE,TRIM0#

main63310-48751-C0iAALH1#..EUR,GEN202410

MOON ROOF-WITH(TILT & SLIDE),BLACK,TRIM2#,4#

main63310-48751-C0iAALH1#..CHI,GCC202410

BLACK,TRIM2#,4#

main63310-48760-A0iTALA10202211-202410

MOON ROOF-WITH(PANORAMA ROOF),WHITE,TRIM00,01,02,03

main63310-48760-A0iTALA15202211-202410

MOON ROOF-WITH(PANORAMA ROOF),WHITE,TRIM0#

main63310-48760-C0iTALH17202211-202410

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM04,1#,2#,3#,4#

main63310-48760-C0iTALH17202211-202410

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM1#,2#,4#

main63310-48760-C0iTALA15202211-202410

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM0#,2#,3#,4#

main63310-48761-A1iTALA15202410

MOON ROOF-WITH(PANORAMA ROOF),FROMAGE,TRIM01,02,03

main63310-48761-A1iTALA15202410

MOON ROOF-WITH(PANORAMA ROOF),FROMAGE,TRIM0#

main63310-48761-C0iTALA15202410

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM04,2#,3#,4#

main63310-48761-C0iTALH17202410

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM0#,2#,3#

main63310-48761-C0iTALH17202410

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2#,4#

main63310-48770-A0iAALH1#202211-202410

MOON ROOF-WITH(PANORAMA ROOF),WHITE,TRIM0#

main63310-48770-C0iAALH1#202211-202410

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM1#,2#,4#

main63310-48771-A1iAALH1#202410

MOON ROOF-WITH(PANORAMA ROOF),FROMAGE,TRIM0#

main63310-48771-C0iAALH1#202410

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2#,4#

63310DCLIP, ROOF HEADLINING

main90467-09245iAALH1#,SALA15,TALA1#,TALH17202211

63327EFASTENER, ROOF HEADLINING, NO.1

main63327-30070iAALH1#,TALA1#,TALH17..EUR,GEN202211-202410

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-30120iAALH1#,SALA15,TALA1#,TALH17202211

63388ACOVER, ROOF HEADLINING HOLDER

main63388-78010-A0iTALA15202211-202410

WHITE,TRIM00,01,02,03

main63388-78010-A0iTALA15202211-202410

WHITE,TRIM0#

main63388-78010-A1iTALA15202410

FROMAGE,TRIM01,02,03

main63388-78010-A1iSALA15,TALA10202410

FROMAGE,TRIM0#

main63388-78010-C0iTALA10202211

BLACK,TRIM0#,2#,3#,4#

main63388-78010-C0iTALA10202211

BLACK,TRIM04,1#,2#,3#,4#

main63388-78010-C0iTALA10202211

BLACK,TRIM1#,2#,4#

main63388-78010-C0iSALA15202410

BLACK,TRIM2#,4#

63391TRIM, ROOF HEADLINING, FRONT

main63391-48020iAALH15,TALA15,TALH17..GCC202211-202410

main63391-48040iAALH1#,SALA15,TALH17..CHI202211-202410

MOON ROOF-WITH(TILT & SLIDE)

main63391-48040iAALH15,TALA15,TALH17..GCC202211-202410

MOON ROOF-WITH(PANORAMA ROOF)

main63391-48040iAALH15,TALA15,TALH17..GCC202410

86255CCASE, MICROPHONE, RH

main86255-48020-A0iAALH1#202211-202410

WHITE,TRIM0#

main86255-48020-A1iAALH1#202410

FROMAGE,TRIM0#

main86255-48020-C0iAALH1#202211

BLACK,TRIM2#,4#

main86255-78020-A0iTALA15202211-202410

WHITE,TRIM0#

main86255-78020-A0iTALA10202211-202410

WHITE,TRIM00,01,02,03

main86255-78020-A1iTALA15202410

FROMAGE,TRIM0#

main86255-78020-A1iSALA15,TALA10202410

FROMAGE,TRIM01,02,03

main86255-78020-C0iSALA15202410

BLACK,TRIM2#,4#

main86255-78020-C0iTALA10202211

BLACK,TRIM1#,2#,4#

main86255-78020-C0iTALA10202211

BLACK,TRIM04,1#,2#,3#,4#

main86255-78020-C0iTALH17202211

BLACK,TRIM0#,2#,3#,4#

7 parts on this diagram · 3 diagrams in section
