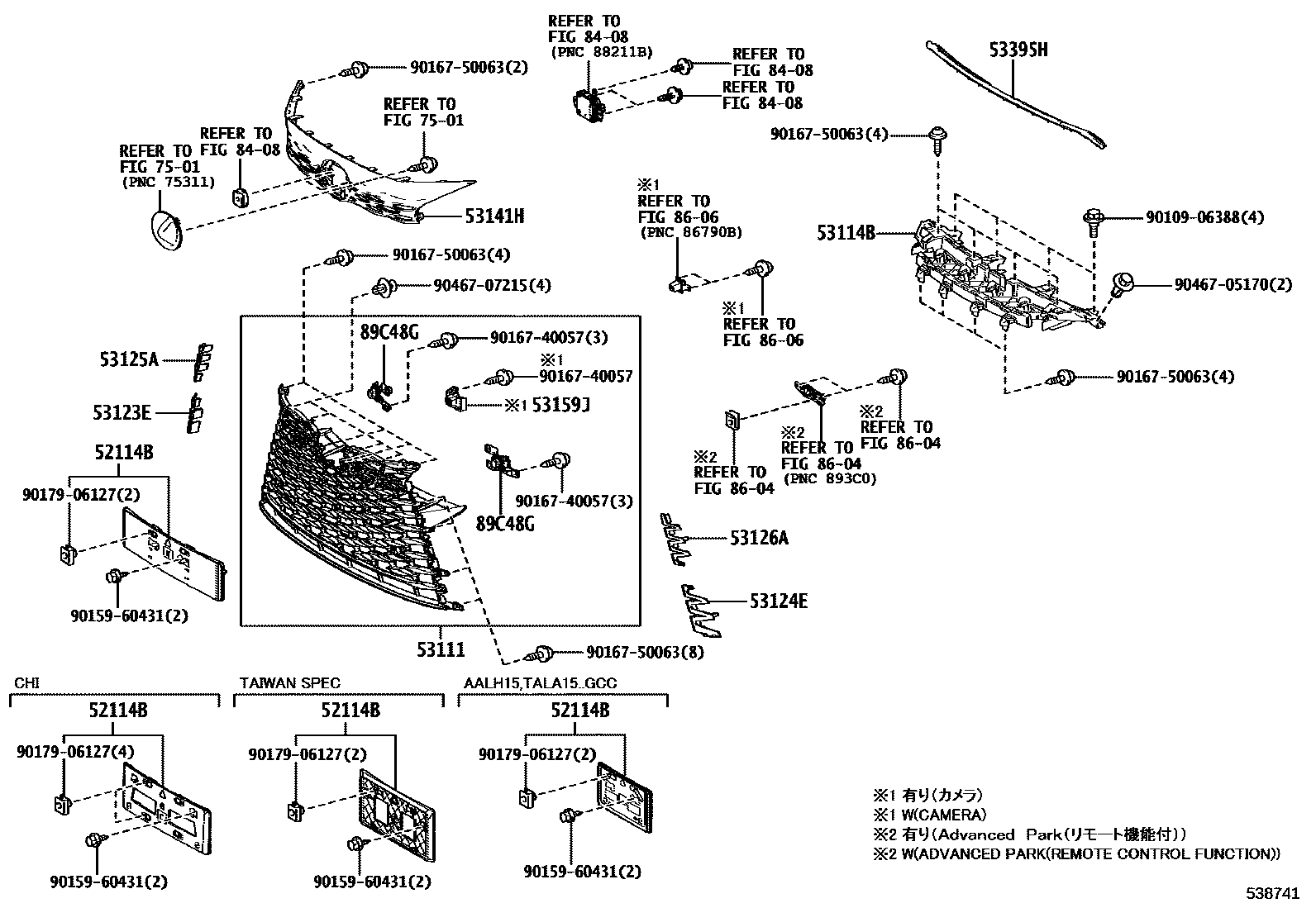

RADIATOR GRILLE
52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING
TAIWAN SPEC
F SPORT
F SPORT
TAIWAN SPEC&F SPORT
53111GRILLE, RADIATOR
NO PAINT REQ.
NO PAINT REQ.,BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST)
NO PAINT REQ.
NO PAINT REQ.,F SPORT DESIGN&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
53114BGRILLE, RADIATOR, UPPER
53123EMOULDING, RADIATOR GRILLE, LOWER RH
53124EMOULDING, RADIATOR GRILLE, LOWER LH
53125AMOULDING, RADIATOR GRILLE, CENTER RH
53126AMOULDING, RADIATOR GRILLE, CENTER LH
53141HGARNISH, RADIATOR GRILLE
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
53159JSEAL, RADIATOR GRILLE
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
53395HSEAL, HOOD TO RADIATOR GRILLE
7501
8408
8604
8606
89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER
RH
LH
F SPORT&ADVANCED PARK-WITH,RH
LH
9010906388
main90109-06388
9015960431
main90159-60431
9016740057
main90167-40057
9016750063
main90167-50063
9017906127
main90179-06127
9046705170
main90467-05170
9046707215
main90467-07215
22 parts on this diagram · 2 diagrams in section
