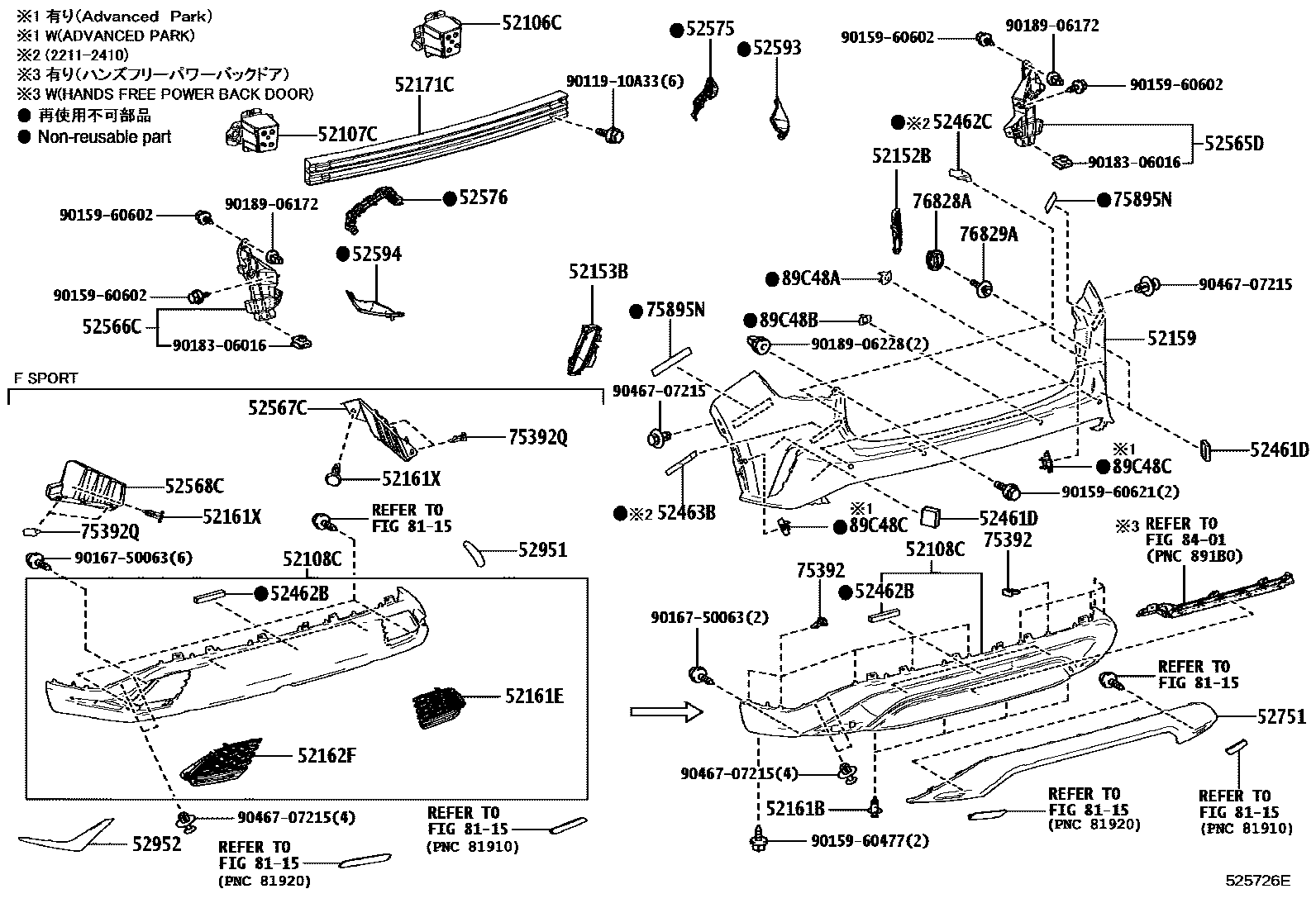

REAR BUMPER & BUMPER STAY
52106CEXTENSION SUB-ASSY, REAR BUMPER, RH
52107CEXTENSION SUB-ASSY, REAR BUMPER, LH
52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER
NO PAINT REQ.
PAINT REQ.
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52159COVER, REAR BUMPER
PAINT REQ.
52161BPIECE, REAR BUMPER
52161EEXTENSION, REAR BUMPER SIDE, RH
F SPORT
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
F SPORT&ADVANCED PARK-WITH
52161XPIECE, REAR BUMPER
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
52162FEXTENSION, REAR BUMPER SIDE, LH
F SPORT
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
F SPORT&ADVANCED PARK-WITH
52171CREINFORCEMENT, REAR BUMPER
52461DCUSHION, REAR BUMPER
52462BPAD, REAR BUMPER
F SPORT
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
F SPORT&ADVANCED PARK-WITH
52462CPAD, REAR BUMPER, RH
52463BPAD, REAR BUMPER, LH
52565DRETAINER, REAR BUMPER, LOWER RH
52566CRETAINER, REAR BUMPER, LOWER LH
52567CRETAINER, REAR BUMPER LOWER SIDE, RH
F SPORT
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
F SPORT&ADVANCED PARK-WITH
52568CRETAINER, REAR BUMPER LOWER SIDE, LH
F SPORT
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
F SPORT&ADVANCED PARK-WITH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52593SILENCER, REAR BUMPER, RH
52594SILENCER, REAR BUMPER, LH
52751MOULDING, REAR BUMPER
NOT APPLICABLE
F SPORT,NOT APPLICABLE
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH,NOT APPLICABLE
F SPORT&ADVANCED PARK-WITH,NOT APPLICABLE
52951GUARD, SIDE BUMPER, RH
52952GUARD, SIDE BUMPER, LH
75392RETAINER, OUTSIDE MOULDING
75392QRETAINER, OUTSIDE MOULDING, NO.2
F SPORT
F SPORT&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
F SPORT&ADVANCED PARK-WITH
75895NTAPE, MOULDING, NO.1
76828ARETAINER, BACK DOOR GARNISH, NO.3
76829ARETAINER, BACK DOOR GARNISH
8115
8401
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
9011910A33
9015960477
9015960602
9015960621
9016750063
9018306016
9018906172
9018906228
9046707215
45 parts on this diagram · 2 diagrams in section
