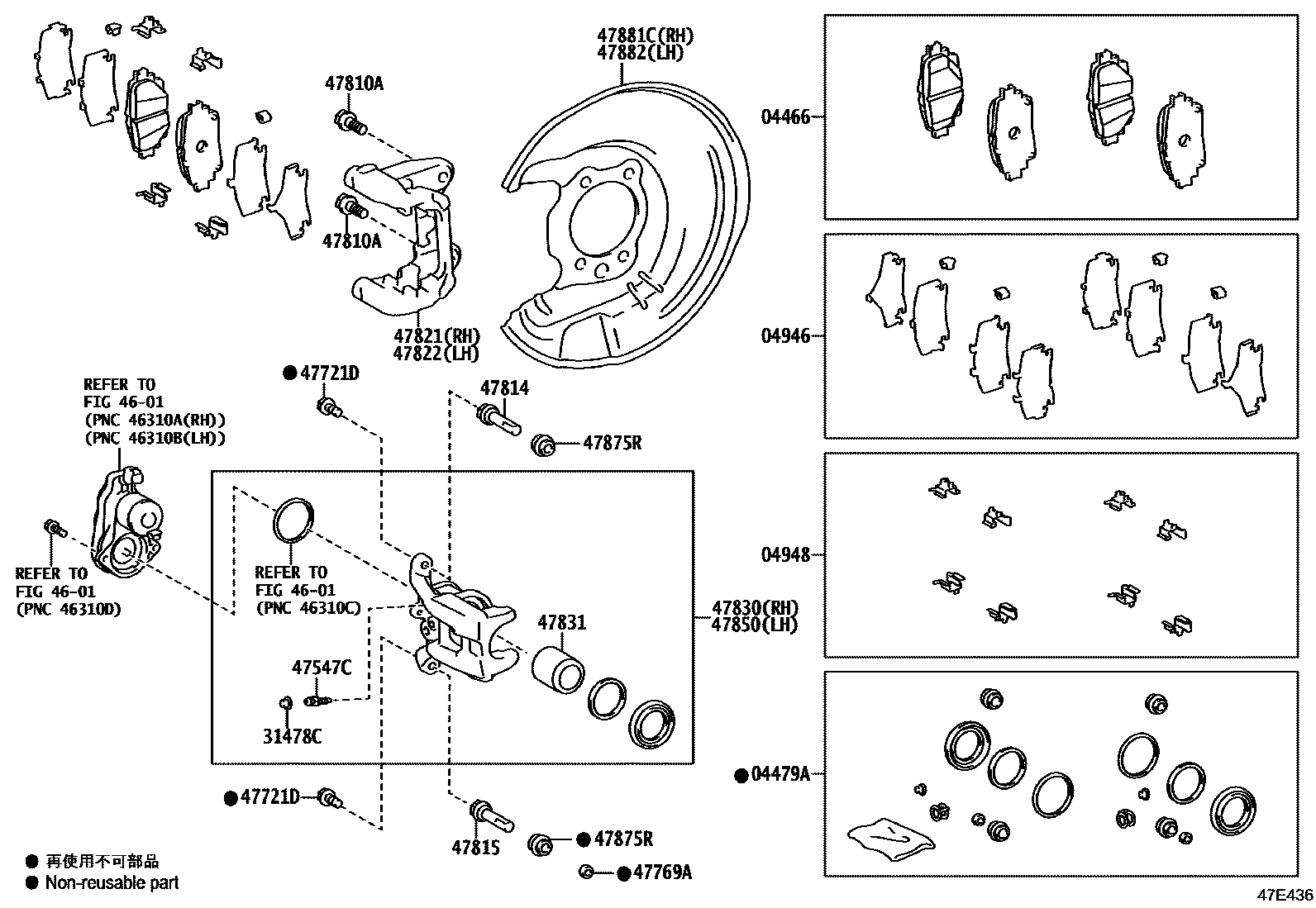

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-48170iAALH1#,SALA15,TALA1#,TALH17202211

MARK NBK D6363-FF

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-58031iAALH1#,SALA15,TALA1#,TALH17202211

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48140iAALH1#,SALA15,TALA1#202211

main04946-48150iTALH17202211

04948FITTING KIT, DISC BRAKE, REAR

main04948-12071iAALH1#,SALA15,TALA1#202211

main04948-48120iTALH17202211

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAALH1#,SALA15,TALA1#,TALH17202211

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAALH1#,SALA15,TALA1#,TALH17202211

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iAALH1#,SALA15,TALA1#,TALH17202211

*8-1.00PX23-12.5

sub90016-AA614

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iAALH1#,SALA15,TALA1#,TALH17202211

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-14218iAALH1#,SALA15,TALA1#,TALH17202211

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iAALH1#,SALA15,TALA1#,TALH17202211

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iAALH1#,SALA15,TALA1#,TALH17202211

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-48160iAALH1#,SALA15,TALA1#202211

main47821-48170iTALH17202211

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-48160iAALH1#,SALA15,TALA1#202211

main47822-48170iTALH17202211

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-48160iAALH1#,SALA15,TALA1#202211

main47830-48170iTALH17202211

47831PISTON, REAR DISC BRAKE

main47831-30460iAALH1#,SALA15,TALA1#,TALH17202211

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-48160iAALH1#,SALA15,TALA1#202211

main47850-48170iTALH17202211

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iAALH1#,SALA15,TALA1#,TALH17202211

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-48020iAALH1#,SALA15,TALA1#,TALH17202211

47882COVER, DISC BRAKE DUST, REAR LH

main47882-48020iAALH1#,SALA15,TALA1#,TALH17202211

20 parts on this diagram · 1 diagram in section
