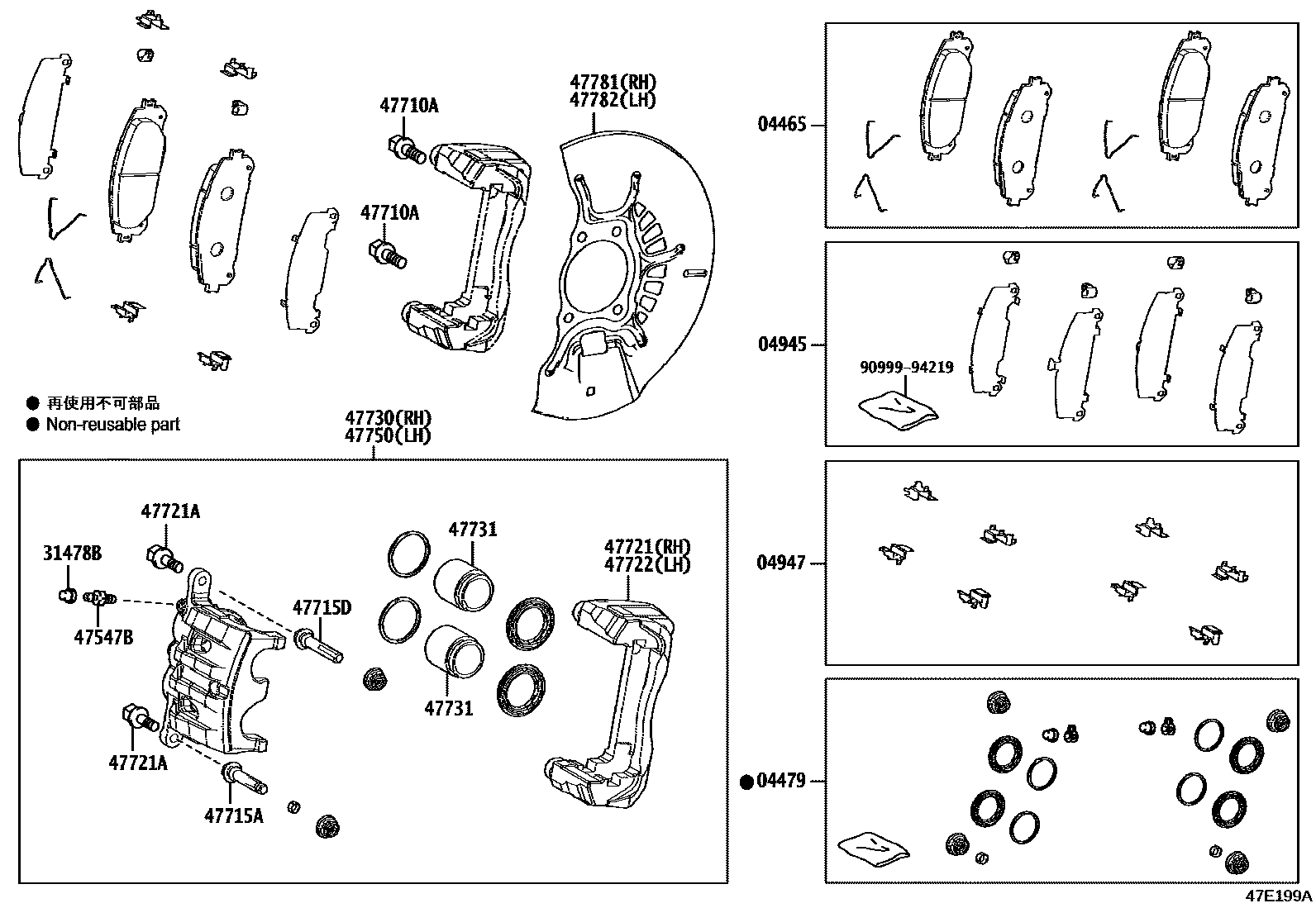

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1PNC 04465=MARK ADVICS VC084H 0003 1PNC 04465=MARK AKEBONO NS380H0004 1 0005 1F SPORT 0006 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-48250iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MARK ADVICS VC084H

main04465-48250iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MARK ADVICS VC084H,UKRAINE SPEC

main04465-48250iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MARK ADVICS VC084H,AZERBAIJAN SPEC

main04465-48250iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MARK ADVICS VC084H,GEORGIA SPEC

main04465-48250iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MARK ADVICS VC084H,INDIA SPEC

main04465-48250iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MARK ADVICS VC084H,MONGOLIA SPEC

main04465-48250iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MARK ADVICS VC084H,MOLDOVA SPEC

main04465-48260iAALH16..CHI,GEN;AALH15,TALA15..GCC202211

MARK ADVICS VC115

main04465-48270iTALH17..CHI,GCC,GEN202211

MARK ADVICS VC115-FG

main04465-48270iTALH17..CHI,GCC,GEN202211

MARK ADVICS VC115-FG,KAZAKHSTAN SPEC

main04465-48270iTALH17..CHI,GCC,GEN202211

MARK ADVICS VC115-FG,UKRAINE SPEC

main04465-48270iTALH17..CHI,GCC,GEN202211

MARK ADVICS VC115-FG,AZERBAIJAN SPEC

main04465-48270iTALH17..CHI,GCC,GEN202211

MARK ADVICS VC115-FG,GEORGIA SPEC

main04465-48270iTALH17..CHI,GCC,GEN202211

MARK ADVICS VC115-FG,INDIA SPEC

main04465-48270iTALH17..CHI,GCC,GEN202211

MARK ADVICS VC115-FG,MONGOLIA SPEC

main04465-48270iTALH17..CHI,GCC,GEN202211

MARK ADVICS VC115-FG,MOLDOVA SPEC

main04465-48270iTALH17..CHI,GCC,GEN202211

MARK ADVICS VC115-FG,KYRGYZSTAN SPEC

main04465-48270iTALH17..CHI,GCC,GEN202211

MARK ADVICS VC115-FG,ARMENIA SPEC

main04465-48270iTALH17..CHI,GCC,GEN202211

MARK ADVICS VC115-FG,F SPORT

main04465-48280iTALH17..EUR202211

MARK AK NS 380H

main04465-78030iAALH15,16..EUR202211

MARK AKEBONO NS380H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48210iAALH15,16..EUR202211

main04478-48220iTALA15;AALH1#,SALA15,TALA10..CHI,GCC,GEN202211

UKRAINE SPEC

main04478-48220iTALA15;AALH1#,SALA15,TALA10..CHI,GCC,GEN202211

AZERBAIJAN SPEC

main04478-48220iTALA15;AALH1#,SALA15,TALA10..CHI,GCC,GEN202211

GEORGIA SPEC

main04478-48220iTALA15;AALH1#,SALA15,TALA10..CHI,GCC,GEN202211

INDIA SPEC

main04478-48220iTALA15;AALH1#,SALA15,TALA10..CHI,GCC,GEN202211

MONGOLIA SPEC

main04478-48220iTALA15;AALH1#,SALA15,TALA10..CHI,GCC,GEN202211

MOLDOVA SPEC

main04478-48240iTALH17202211

F SPORT

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48200iAALH16;TALA15..GCC;AALH15..EUR,GCC202211

main04945-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

UKRAINE SPEC

main04945-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

AZERBAIJAN SPEC

main04945-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

GEORGIA SPEC

main04945-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

INDIA SPEC

main04945-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MONGOLIA SPEC

main04945-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MOLDOVA SPEC

main04945-48220iTALH17..CHI,GCC,GEN202211

KAZAKHSTAN SPEC

main04945-48220iTALH17..CHI,GCC,GEN202211

UKRAINE SPEC

main04945-48220iTALH17..CHI,GCC,GEN202211

AZERBAIJAN SPEC

main04945-48220iTALH17..CHI,GCC,GEN202211

GEORGIA SPEC

main04945-48220iTALH17..CHI,GCC,GEN202211

INDIA SPEC

main04945-48220iTALH17..CHI,GCC,GEN202211

MONGOLIA SPEC

main04945-48220iTALH17..CHI,GCC,GEN202211

MOLDOVA SPEC

main04945-48220iTALH17..CHI,GCC,GEN202211

KYRGYZSTAN SPEC

main04945-48220iTALH17..CHI,GCC,GEN202211

ARMENIA SPEC

main04945-48220iTALH17..CHI,GCC,GEN202211

F SPORT

main04945-48230iTALH17..EUR202211

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48090iAALH1#,SALA15,TALA1#202211

main04947-48100iTALH17202211

F SPORT

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iTALH17202211

F SPORT

main31478-30010iAALH1#,SALA15,TALA1#202211

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAALH1#,SALA15,TALA1#202211

main47547-50010iTALH17202211

F SPORT

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14212iAALH1#,SALA15,TALA1#,TALH17202211

*14-1.5PX35.5-31

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-48200iAALH1#,SALA15,TALA1#202211

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-48200iAALH1#,SALA15,TALA1#202211

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48220iAALH16;TALA15..GCC;AALH15..EUR,GCC202211

main47721-48240iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

UKRAINE SPEC

main47721-48240iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

AZERBAIJAN SPEC

main47721-48240iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

GEORGIA SPEC

main47721-48240iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

INDIA SPEC

main47721-48240iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MONGOLIA SPEC

main47721-48240iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MOLDOVA SPEC

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA605iAALH1#,TALA1#202211-202306

main90015-AA608iAALH1#,SALA15,TALA1#202306

*10-1.00PX23-9.4

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-48190iAALH16;TALA15..GCC;AALH15..EUR,GCC202211

main47722-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

UKRAINE SPEC

main47722-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

AZERBAIJAN SPEC

main47722-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

GEORGIA SPEC

main47722-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

INDIA SPEC

main47722-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MONGOLIA SPEC

main47722-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MOLDOVA SPEC

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48220iAALH16;TALA15..GCC;AALH15..EUR,GCC202211

main47730-48240iAALH15..LHD..EUR202211

UKRAINE SPEC

main47730-48240iAALH15..LHD..EUR202211

AZERBAIJAN SPEC

main47730-48240iAALH15..LHD..EUR202211

GEORGIA SPEC

main47730-48240iAALH15..LHD..EUR202211

INDIA SPEC

main47730-48240iAALH15..LHD..EUR202211

MONGOLIA SPEC

main47730-48240iAALH15..LHD..EUR202211

MOLDOVA SPEC

main47730-48270iTALH17202211

47731PISTON, FRONT DISC BRAKE

main47731-48200iAALH1#,SALA15,TALA1#202211

main47731-48260iTALH17202211

F SPORT

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48190iAALH16;TALA15..GCC;AALH15..EUR,GCC202211

main47750-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

UKRAINE SPEC

main47750-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

AZERBAIJAN SPEC

main47750-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

GEORGIA SPEC

main47750-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

INDIA SPEC

main47750-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MONGOLIA SPEC

main47750-48210iTALA15..EUR,GEN;AALH10,15,SALA15,TALA10..CHI,GEN202211

MOLDOVA SPEC

main47750-48240iTALH17202211

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42060iAALH1#,SALA15,TALA1#202211

main47781-48060iTALH17202211

F SPORT

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42060iAALH1#,SALA15,TALA1#202211

main47782-48060iTALH17202211

F SPORT

9099994219

main90999-94219

18 parts on this diagram · 6 diagrams in section
