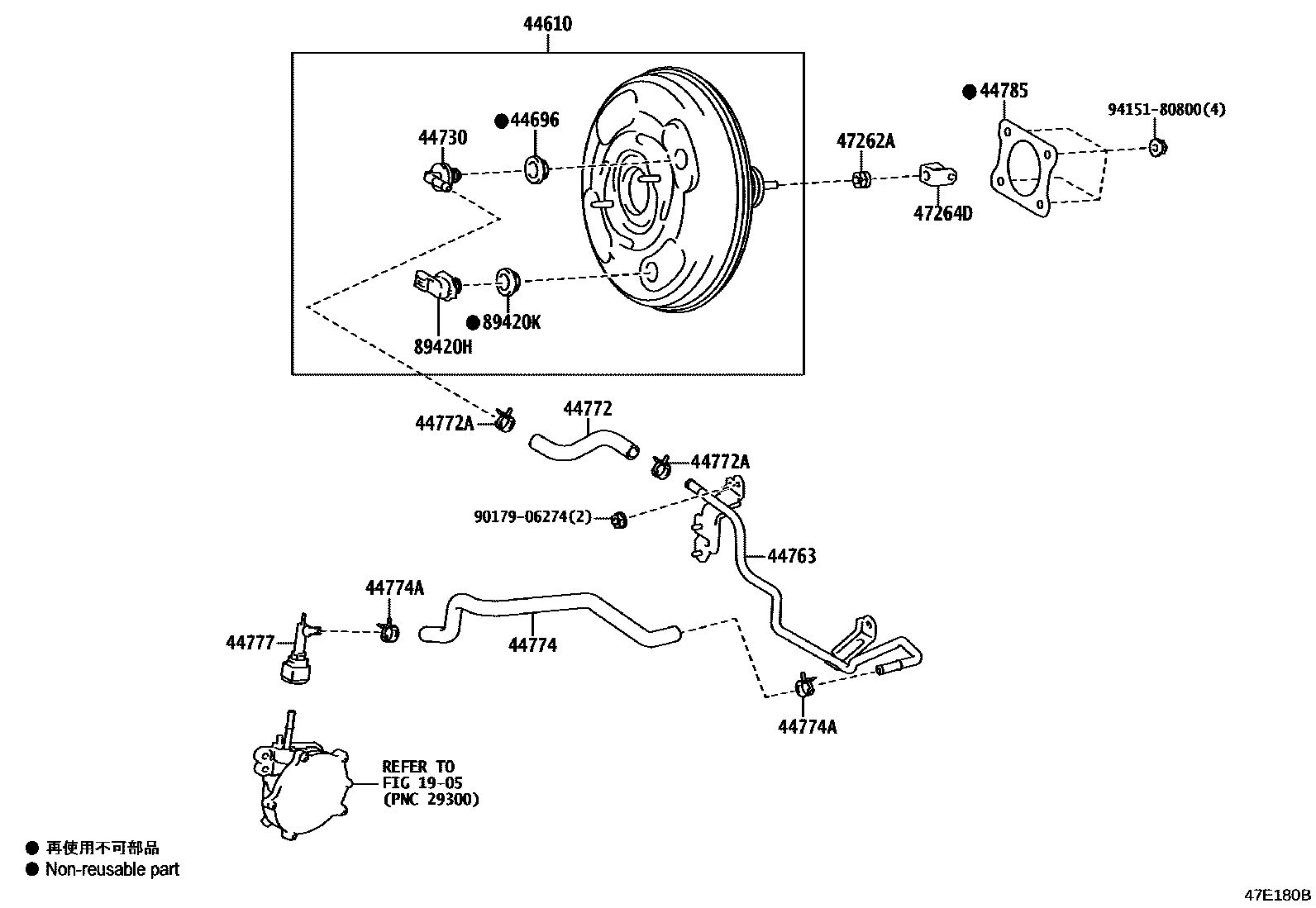

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-48560iSALA15,TALA1#..LHD202211

main44610-48570iTALA1#..RHD202211

44696GROMMET, CHECK VALVE

main90480-24439iSALA15,TALA1#202211

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30060iSALA15,TALA1#..LHD202211

main44730-52010iTALA1#..RHD202211

44763TUBE, BOOSTER VACUUM

main44763-48030iTALA1#..RHD202211

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-42100iTALA1#..RHD202211

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iTALA1#..RHD202211

44774HOSE, UNION TO CONNECTOR TUBE

main44774-78020iTALA1#..RHD202211

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iTALA1#..RHD202211

44777CONNECTOR, VACUUM HOSE, NO.1

main29612-25010iSALA15,TALA1#202211

44785GASKET, BRAKE BOOSTER

main44785-12040iSALA15,TALA1#202211

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main90179-10065iSALA15,TALA1#202211

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-42020iSALA15,TALA1#202211

89420HSENSOR ASSY, VACUUM

main89421-71040iSALA15,TALA1#202211

89420KGROMMET, VACUUM SENSOR

main90480-24439iSALA15,TALA1#202211

9017906274

main90179-06274

9415180800

main94151-80800

17 parts on this diagram · 2 diagrams in section
