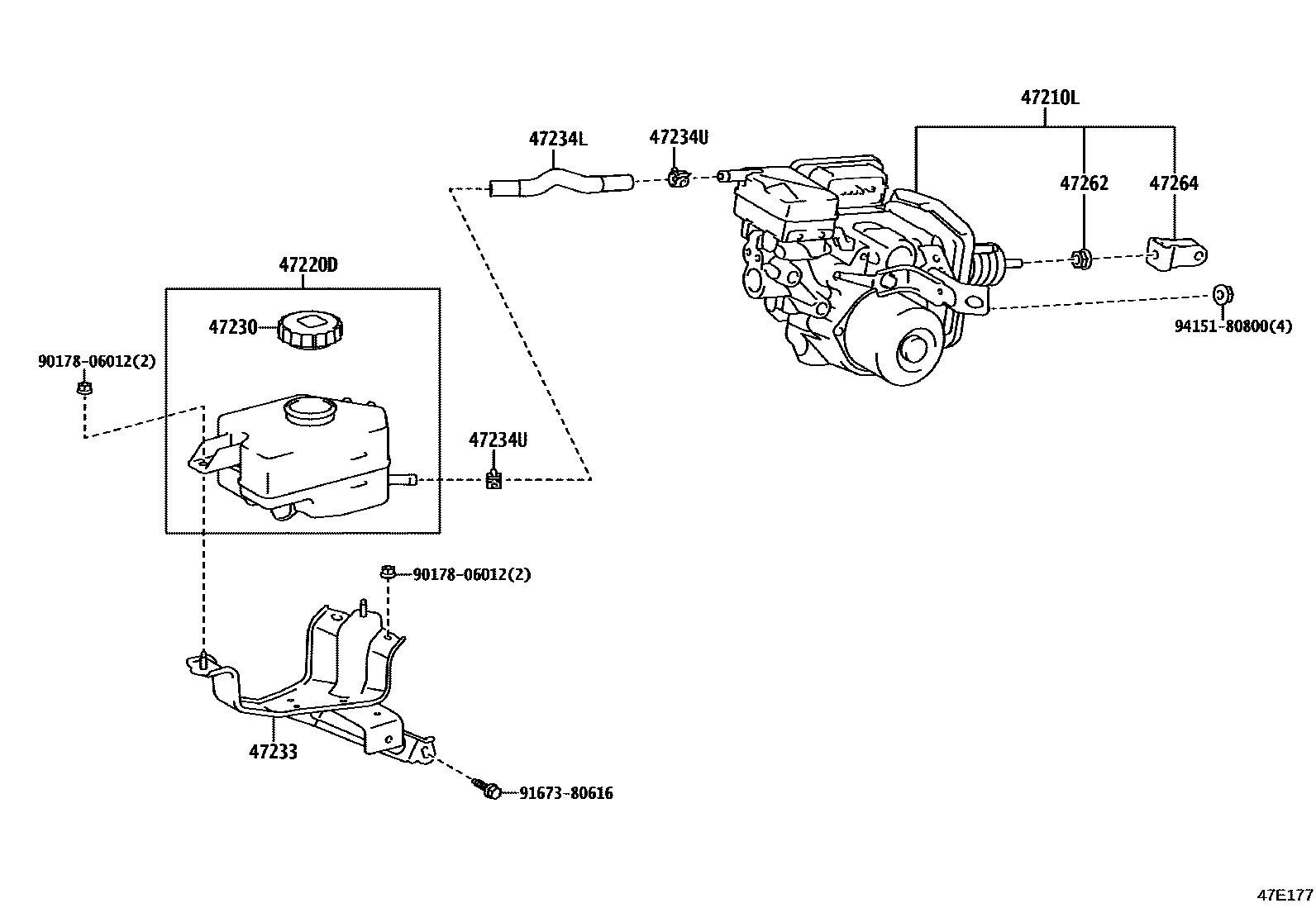

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-48120iAALH1#..CHI202211-202308

main47050-48140iTALH17..CHI202211-202308

main47050-48160iAALH1#..LHD..(EUR,GCC,GEN)202211-202308

main47050-48190iTALH17..LHD..(EUR,GCC,GEN)202211-202308

main47050-48220iAALH10,15..RHD202211-202308

main47050-48270iTALH17..RHD202211-202308

main47050-48340iAALH16..RHD202211-202308

main47050-48450iAALH1#..CHI202308-202409

main47050-48460iTALH17..CHI202308-202409

main47050-48470iAALH1#..LHD..(EUR,GCC,GEN)202308-202409

main47050-48480iTALH17..LHD..(EUR,GCC,GEN)202308-202409

main47050-48490iAALH10,15..RHD202308-202409

main47050-48500iTALH17..RHD202308-202409

main47050-48530iAALH16..RHD202308-202409

main47050-48620iAALH1#..CHI202409

main47050-48630iTALH17..CHI202409

main47050-48640iAALH1#..LHD..(EUR,GCC,GEN)202409

main47050-48650iTALH17..LHD..(EUR,GCC,GEN)202409

main47050-48660iAALH10,15..RHD202409

main47050-48670iTALH17..RHD202409

main47050-48680iAALH16..RHD202409

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-48330iSALA15,TALA1#202211

main47220-48350iAALH1#,TALH17..RHD202211

main47220-48360iAALH1#,TALH17..LHD202211

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iAALH1#,SALA15,TALA1#,TALH17202211

47233BRACKET, RESERVOIR

main47233-48250iTALA1#..RHD202211

main47233-48260iSALA15,TALA1#..LHD202211

main47233-48270iAALH1#..RHD202211

main47233-48280iAALH1#,TALH17..LHD202211

main47233-48290iTALH17..RHD202211

47234LHOSE, RESERVOIR, NO.1

main47234-48350iTALA1#..RHD202211

main47234-48360iSALA15,TALA1#..LHD202211

main47234-48370iAALH1#,TALH17..RHD202211

main47234-48380iAALH1#,TALH17..LHD202211

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-41501iAALH1#,SALA15,TALA1#,TALH17202211

47262NUT, MASTER CYLINDER PUSH ROD

main90179-10065iAALH1#..CHI202211-202409

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-48030iAALH1#,TALH17202211

9017806012

main90178-06012

9167380616

main91673-80616

9415180800

main94151-80800

11 parts on this diagram · 5 diagrams in section
