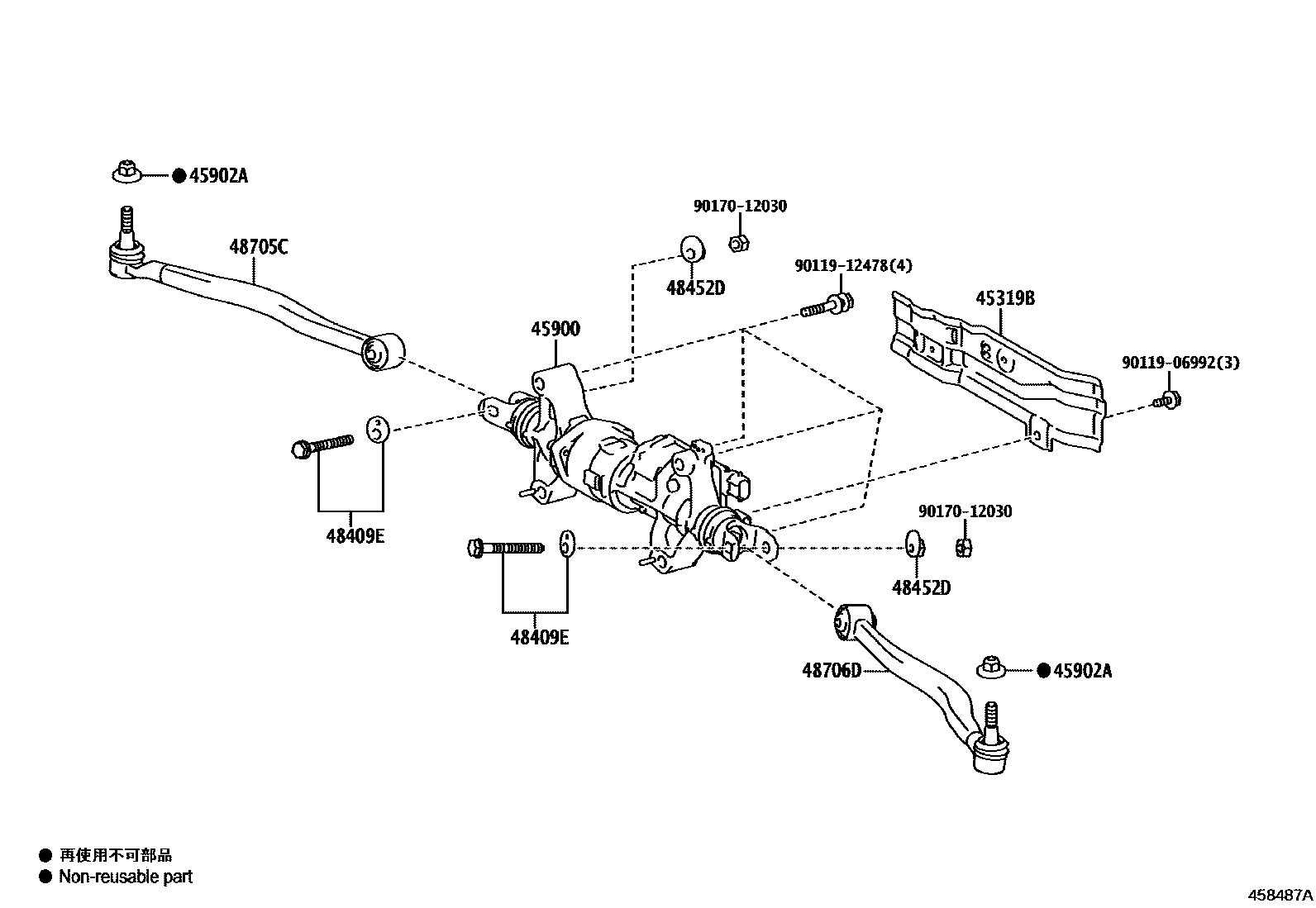

REAR STEERING GEAR (4WS)

45319BINSULATOR, STEERING GEAR HEAT

main45319-48010iTALH17202211

45900LINK ASSY, REAR STEERING

main45900-48010iTALH17202211-202307

sub45900-48011

main45900-48011iTALH17202308

45902ANUT, CASTLE(FOR REAR STEERING TIE ROD END)

main90177-14006iTALH17202211

48409ECAM SUB-ASSY, TOE ADJUST

main48409-48040iTALH17202211

48452DPLATE, TOE ADJUST

main48452-50040iTALH17202211

48705CLINK SUB-ASSY SET, TOE CONTROL, RH

main48705-48020iTALH17202211

48706DLINK SUB-ASSY SET, TOE CONTROL, LH

main48706-48020iTALH17202211

9011906992

main90119-06992

9011912478

main90119-12478

9017012030

main90170-12030

10 parts on this diagram · 1 diagram in section
