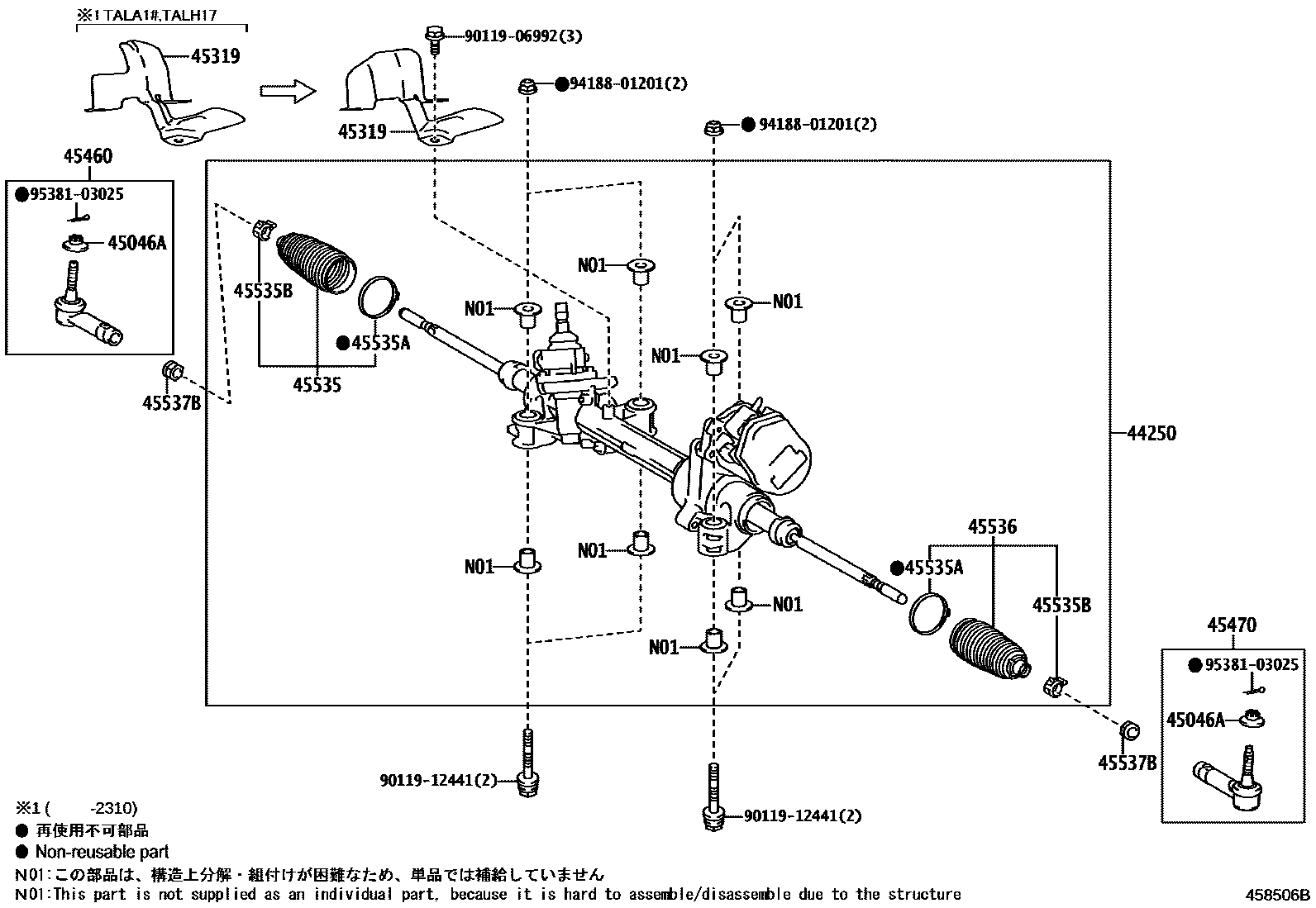

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-48170iAALH1#,TALA1#..LHD202211-202409

*614

main44250-48171iAALH1#,SALA15,TALA1#..LHD202409

*614

main44250-48180iTALH17..LHD¥128,000202211-202409

*614

main44250-48181iTALH17..LHD202409

*614

main44250-48200iAALH1#,TALA1#..RHD¥128,000202211-202409

*614

main44250-48201iAALH1#,TALA1#..RHD202409

*614

main44250-48210iTALH17..RHD¥128,000202211-202409

*614

main44250-48211iTALH17..RHD202409

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015iAALH1#,SALA15,TALA1#,TALH17¥190202211

45319INSULATOR, STEERING GEAR HEAT

main45319-42020iAALH1#..LHD202211

main45319-42030iAALH1#..RHD¥540202211

main45319-78010iSALA15,TALA1#,TALH17..LHD202211

main45319-78020iTALA1#,TALH17..RHD¥610202211-202310

45460ROD ASSY, TIE, RH

main45460-49135iAALH1#,SALA15,TALA1#,TALH17¥2,440202211

45470ROD ASSY, TIE, LH

main45460-49135iAALH1#,SALA15,TALA1#,TALH17¥2,440202211

45535BOOT, STEERING RACK, NO.1

main45535-49095iAALH1#,SALA15,TALA1#,TALH17¥790202211

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-06030iAALH1#,SALA15,TALA1#,TALH17¥220202211

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iAALH1#,SALA15,TALA1#,TALH17¥180202211

45536BOOT, STEERING RACK, NO.2

main45535-49095iAALH1#,SALA15,TALA1#,TALH17¥790202211

45537BNUT, RACK END LOCK

main90178-16001iAALH1#,SALA15,TALA1#,TALH17¥120202211

9011906992

main90119-06992¥60

9011912441

main90119-12441¥360

9418801201

main94188-01201¥160

9538103025

main95381-03025¥130

14 parts on this diagram · 2 diagrams in section
