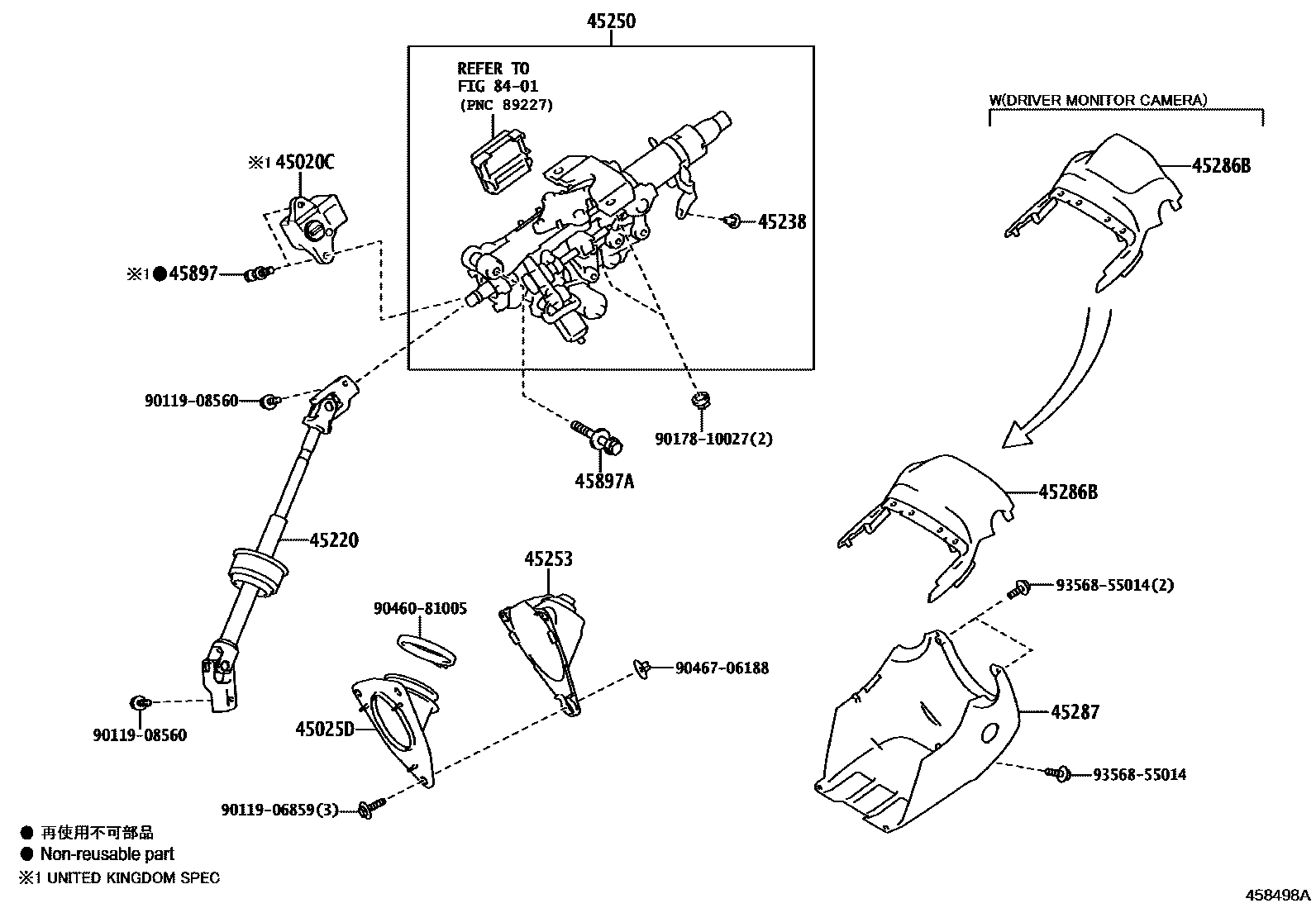

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-60880iTALH17..LHD..EUR202211-202509

RUSSIA SPEC

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-48110iAALH1#,SALA15,TALA1#,TALH17202211

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-48220iAALH1#,SALA15,TALA1#,TALH17..LHD202211

main45220-48260iAALH1#,TALA1#,TALH17..RHD202211

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iAALH1#,SALA15,TALA1#,TALH17202211

45250COLUMN ASSY, STEERING

main45250-46050iTALA15..GCC,GEN;AALH1#,TALA10,TALH17..EUR,GCC,GEN202211

main45250-48430iTALH17..LHD..EUR202211-202509

RUSSIA SPEC

main45250-48440iAALH1#,SALA15,TALH17..CHI202211

45253COVER, STEERING COLUMN HOLE

main45253-48070iAALH1#,SALA15,TALA1#,TALH17202211

45286BCOVER, STEERING COLUMN, UPR

main45286-78030-C0iTALA15202211-202509

BLACK,TRIM0#,1#,2#,4#

main45286-78030-C0iTALH17..CHI,GCC,GEN202211

BLACK,TRIM0#,1#,2#,3#,4#

main45286-78030-C0iTALH17..CHI,GCC,GEN202211-202509

BLACK,TRIM0#,2#,3#,4#

main45286-78030-C0iSALA15202410

BLACK,TRIM0#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45024-60060-C0iAALH15,16..EUR202211-202509

BLACK,TRIM0#,2#,4#

main45024-60060-C0iAALH15,16..EUR202211-202509

BLACK,TRIM0#,2#,3#

main45024-60060-C0iTALA15202211

BLACK,TRIM0#,2#,3#,4#

45897BOLT, STEERING LOCK SET

main45897-12020iTALA15..EUR202211-202509

RUSSIA SPEC

45897ABOLT, TILT STEERING PAWL SET

main90119-10A34iAALH1#,SALA15,TALA1#,TALH17202211

8401

9011906859

main90119-06859

9011908560

main90119-08560

9017810027

main90178-10027

9046081005

main90460-81005

9046706188

main90467-06188

9356855014

main93568-55014

17 parts on this diagram · 2 diagrams in section
