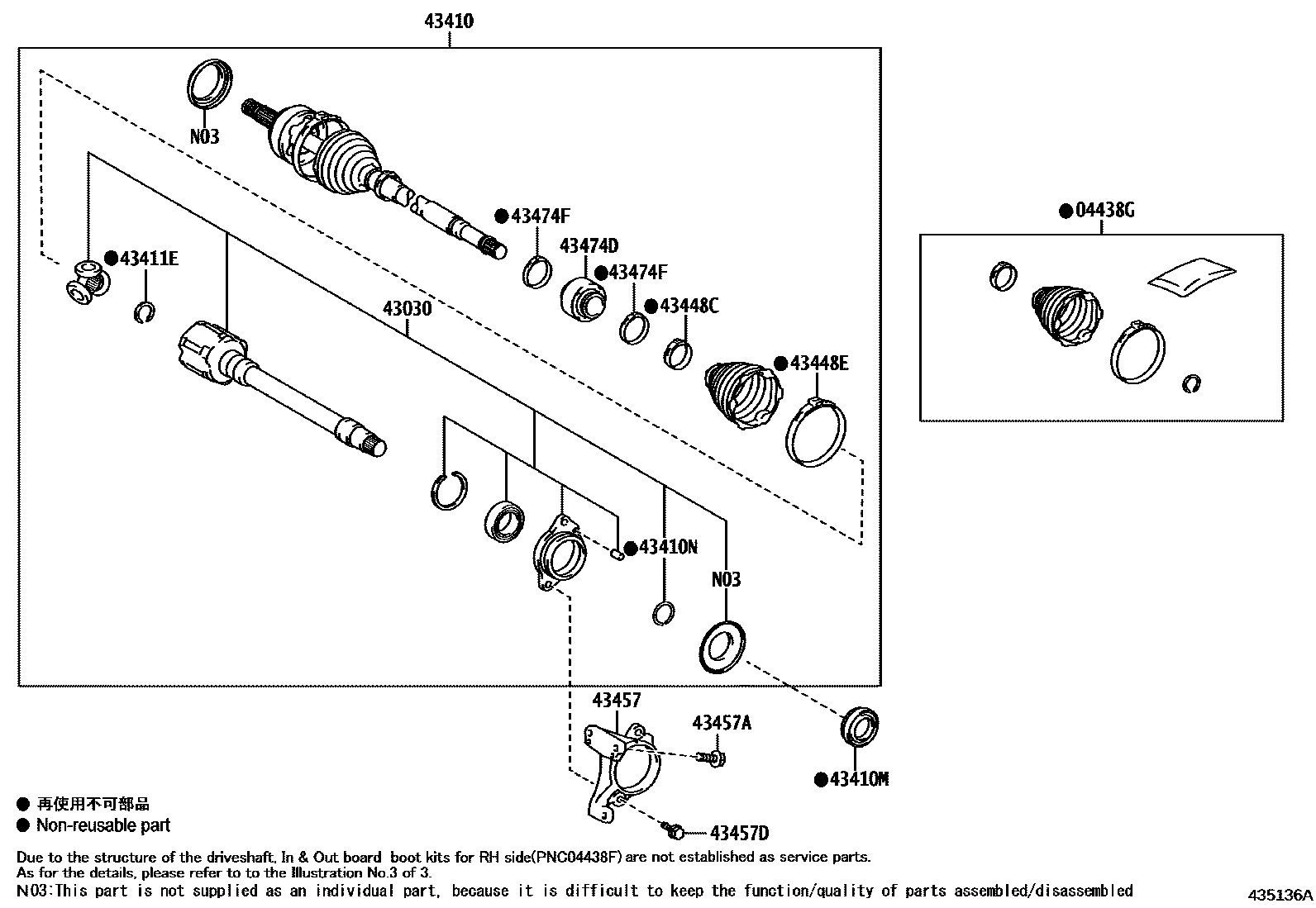

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1LH 0005 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-48190iAALH1#,SALA15,TALA1#,TALH17¥4,150202211

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-48100iSALA15,TALA15¥22,000202211

main43030-48110iAALH1#,TALA10¥22,000202211

main43030-48120iTALH17..GEN¥22,900202211

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-48210iSALA15,TALA15¥53,800202211

main43410-48220iAALH1#,TALA10¥53,800202211

main43410-48230iTALH17..GEN¥53,800202211

main43410-48240iTALH17..CHI,EUR,GCC202211

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40046iAALH1#,TALA10,TALH17¥470202211

main90316-34001iSALA15,TALA15¥450202211

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-42030iAALH1#,TALA10,TALH17¥90202211

main90520-33008iSALA15,TALA15¥110202211

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-42040iAALH1#,SALA15,TALA1#,TALH17¥40202211

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-48240iAALH1#,SALA15,TALA1#,TALH17¥380202211

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-48270iAALH1#,SALA15,TALA1#,TALH17¥630202211

43457BRACKET, DRIVE SHAFT BEARING

main43457-33050iAALH1#,TALA10,TALH17¥3,520202211

main43457-42190iSALA15,TALA15¥3,240202211

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10381iAALH1#,SALA15,TALA1#,TALH17¥100202211

*10-1.25PX32-30

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10361iAALH1#,TALA10,TALH17¥110202211

main90119-10461iSALA15,TALA15¥200202211

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-42070iAALH1#,SALA15,TALA1#,TALH17¥2,480202211

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-42240iAALH1#,SALA15,TALA1#,TALH17¥220202211

13 parts on this diagram · 5 diagrams in section
