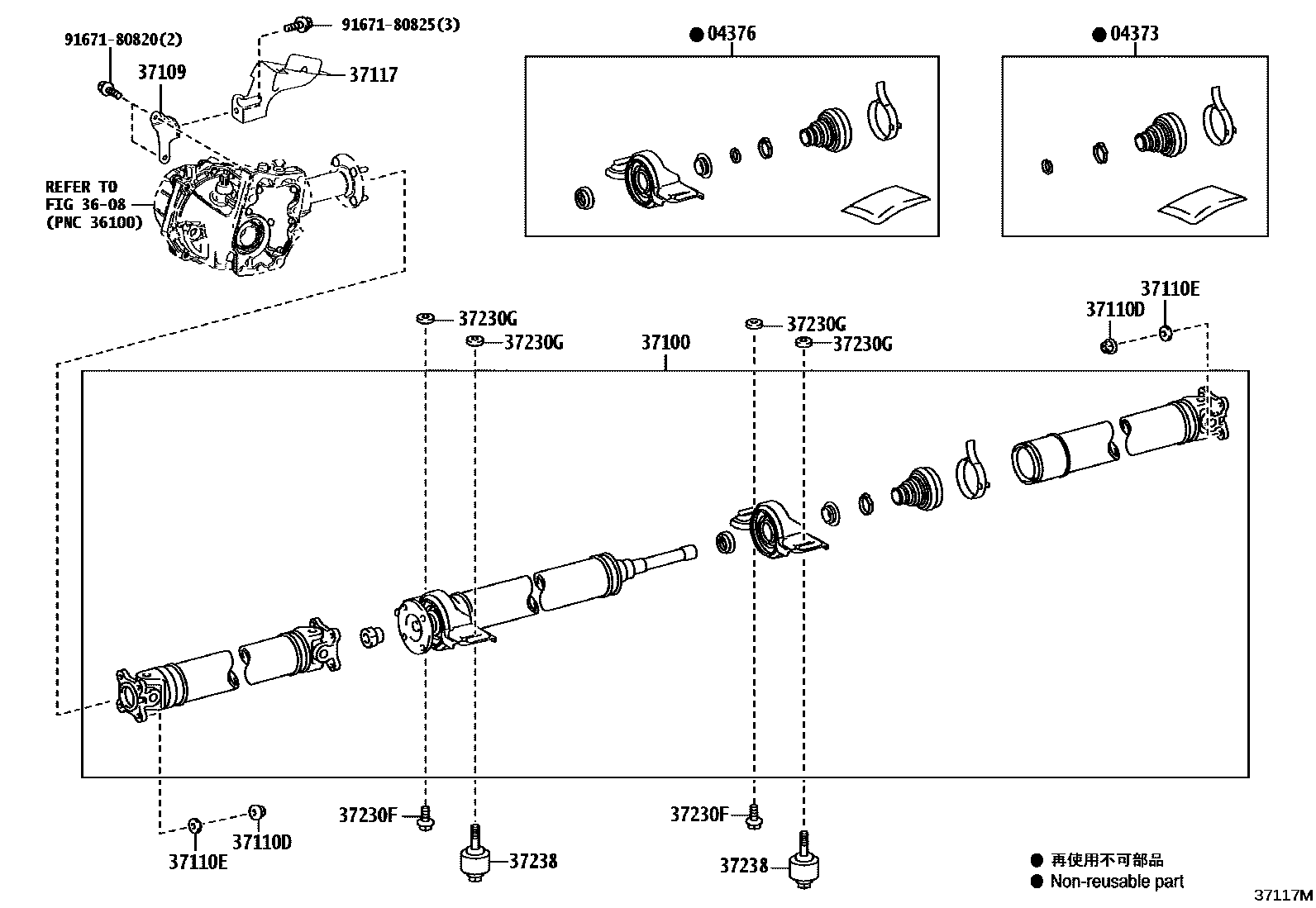

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

04373BOOT KIT, UNIVERSAL

main04373-48010iSALA15,TALA15202211-202411

main04373-48011iSALA15,TALA15202412

04376BEARING KIT, CENTER SUPPORT

main04376-48010iSALA15,TALA15202211-202411

main04376-48011iSALA15,TALA15202412

3608

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-48080iSALA15,TALA15202211

37109BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1

main37109-42010iSALA15,TALA15202211

37110DNUT (FOR PROPELLER SHAFT)

main90178-10007iSALA15,TALA15202211

37110EWASHER (FOR PROPELLER SHAFT)

main90560-10102iSALA15,TALA15202211

37117INSULATOR, PROPELLER SHAFT HEAT

main37117-48020iSALA15202410

main37117-78010iTALA15202211

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444iSALA15,TALA15202211

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iSALA15,TALA15202211

T=4.5

main90201-10083iSALA15,TALA15202211

T=6.5

main90201-10084iSALA15,TALA15202211

T=9.0

main90201-10123iSALA15,TALA15202211

T=2.0

37238DAMPER, CENTER SUPPORT BEARING

main37209-10010iSALA15,TALA15202211

9167180820

main91671-80820

9167180825

main91671-80825

13 parts on this diagram · 2 diagrams in section
