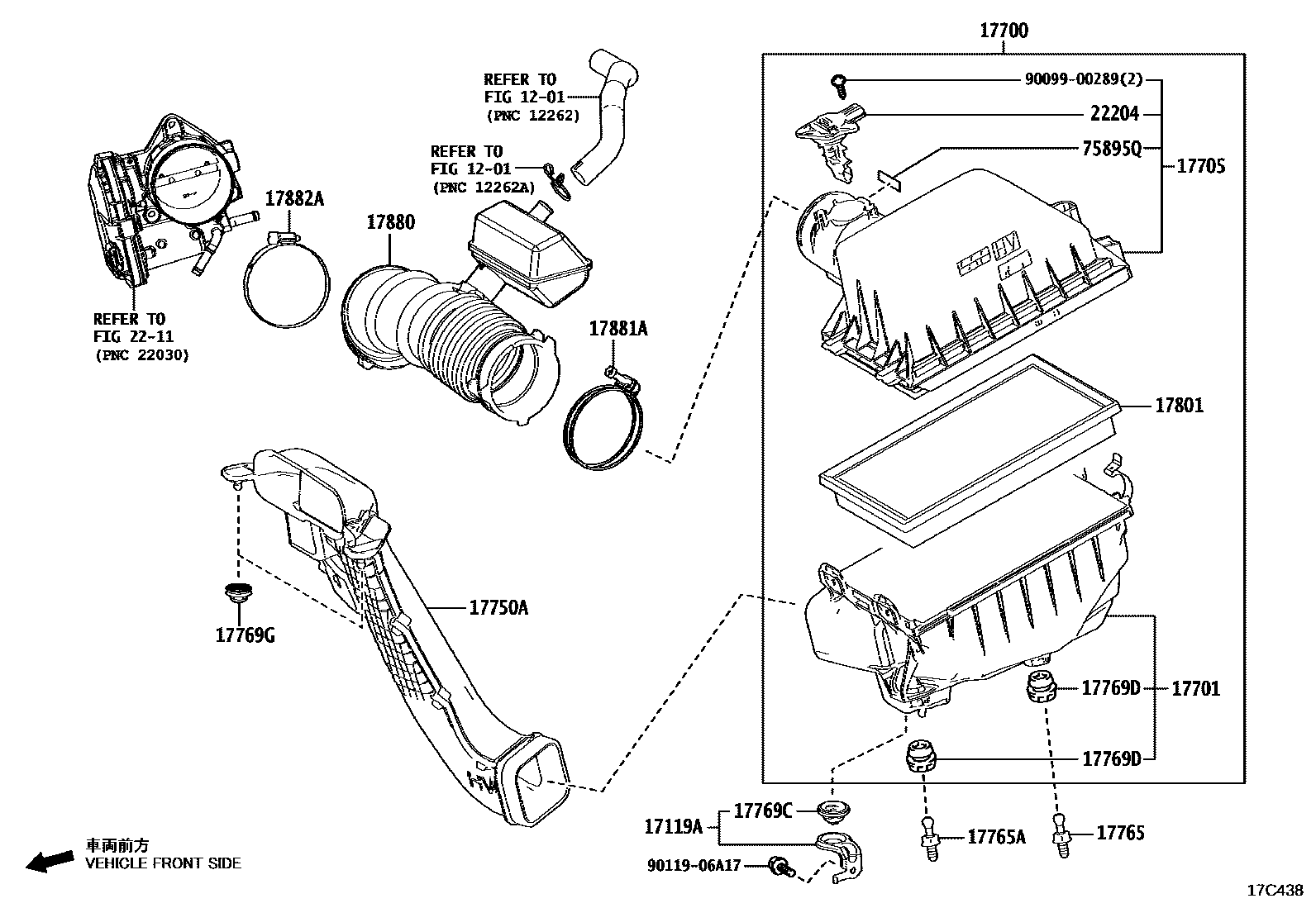

AIR CLEANER
1201
17119ABRACKET, AIR CLEANER
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17750AINLET ASSY, AIR CLEANER
17765STAY, AIR CLEANER, NO.1
17765ASTAY, AIR CLEANER, NO.1
17769SUPPORT, AIR CLEANER
17769CSUPPORT, AIR CLEANER, NO.1
17769DSUPPORT, AIR CLEANER, NO.2
17769GSUPPORT, AIR CLEANER, NO.3
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(J)
(L)
17880HOSE ASSY, AIR CLEANER
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
75895QTAPE, MOULDING, NO.1
9009900289
main90099-00289
9011906A17
main90119-06A17
22 parts on this diagram · 11 diagrams in section
