MANIFOLD
1104
12611BCOVER, ENGINE, NO.1
1708
17141MANIFOLD, EXHAUST
*114=TOYOTA/25160/Y,MARK=P
*114=TOYOTA/25180/Y
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS),MARK=63
MONGOLIA SPEC&EXHAUST EMISSION CONTROL-EURO6B, WITHOUT(ON BOARD DIAGNOSIS),MARK=63
MOLDOVA SPEC&EXHAUST EMISSION CONTROL-EURO6B, WITHOUT(ON BOARD DIAGNOSIS),MARK=63
AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS),MARK=63
MARK=63
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS),MARK=63
AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
MONGOLIA SPEC&EXHAUST EMISSION CONTROL-EURO6B, WITHOUT(ON BOARD DIAGNOSIS)
KYRGYZSTAN SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
ARMENIA SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
MOLDOVA SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
MONGOLIA SPEC&EXHAUST EMISSION CONTROL-EURO6B, WITHOUT(ON BOARD DIAGNOSIS)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211
2501
8404
9012610033
main90126-10033
9017708003
main90177-08003
9017810029
main90178-10029
9046708155
main90467-08155
9155180614
main91551-80614
9167180835
main91671-80835
9167381025
main91673-81025

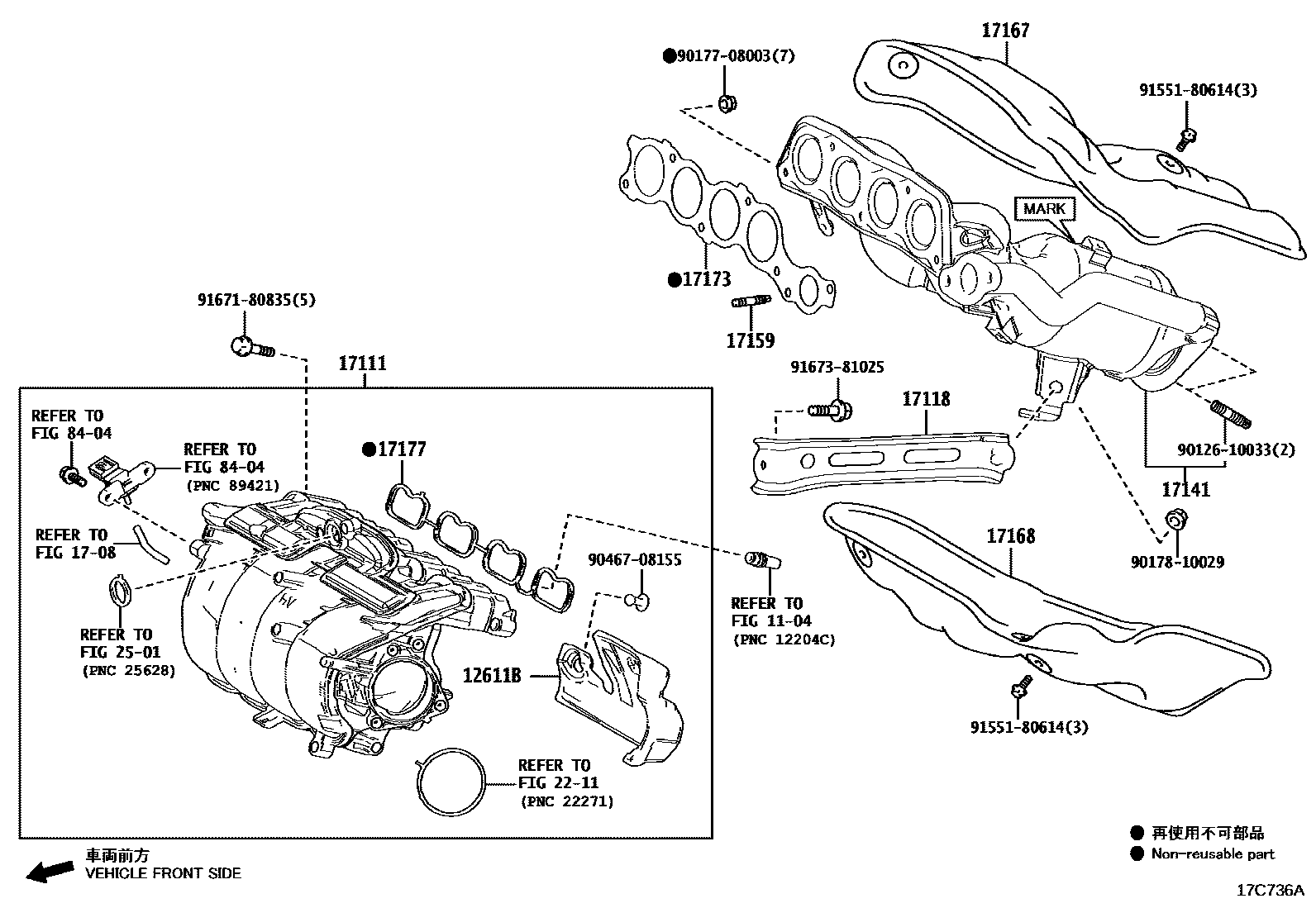

21 parts on this diagram · 9 diagrams in section
