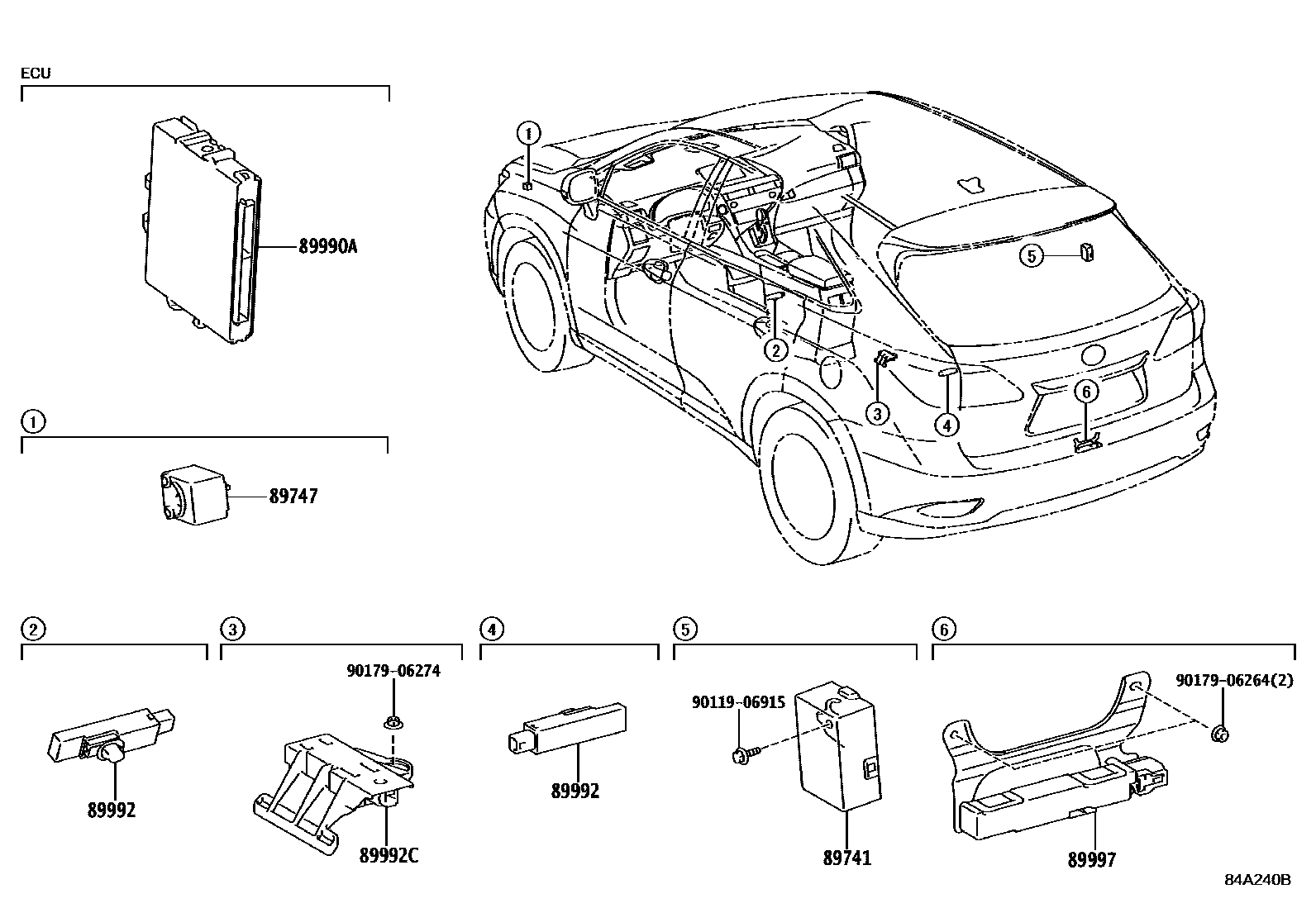

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1 0004 1

89741RECEIVER, DOOR CONTROL

main89740-48080iGGL15,GYL1#200812-201001

sub89740-48081

main89740-48081iAGL10,GGL15,GYL1#201002-201010

sub89740-48082

main89740-48082iAGL10,GGL15,GYL1#201011-201509

sub89740-48083

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iAGL10,GGL15,GYL1#200812-201203

89990ACOMPUTER ASSY, SMART KEY

main89990-48051iGGL15..RHD200812-200906

sub89990-48052

main89990-48052iAGL10,GGL15..RHD200907-201105

sub89990-48330

main89990-48053iAGL10,GGL15..RHD201108-201203

sub89990-48054

main89990-48061iGGL15..LHD200812-200906

sub89990-48062

main89990-48062iAGL10,GGL15..LHD..EUR200907-201105

GCC SPEC

sub89990-48340

main89990-48062iAGL10,GGL15..LHD..EUR200907-201105

MOROCCO SPEC

sub89990-48340

main89990-48063iGGL15..GCC201108-201203

MOROCCO SPEC

sub89990-48064

main89990-48063iAGL10,GGL15..LHD..EUR201108-201203

GCC SPEC

sub89990-48064

main89990-48071iGYL15..RHD200903-201008

sub89990-48190

main89990-48081iGYL15..LHD200903-201105

sub89990-48360

main89990-48083iGYL1#..LHD201108-201203

sub89990-48084

main89990-48130iGGL15..GCC200907-201107

sub89990-48131

main89990-48131iGGL15..GCC201108-201203

sub89990-48132

main89990-48190iGYL1#..RHD201008-201105

sub89990-48350

main89990-48191iGYL1#..RHD201108-201203

sub89990-48192

main89990-48210iGYL15..GCC201203-201307

sub89990-48211

main89990-48211iGYL15..GCC201308-201405

P/N LABEL=8999048211

sub89990-48590

main89990-48212iGYL15..GCC201405

P/N LABEL=8999048212

sub89990-48213

main89990-48230iAGL10,GGL15..RHD201203-201307

sub89990-48231

main89990-48231iAGL10,GGL15..RHD201308-201407

P/N LABEL=8999048231

sub89990-48510

main89990-48232iAGL10,GGL15..RHD201407

P/N LABEL=8999048232

sub89990-48233

main89990-48240iAGL10,GGL15..LHD..EUR201203-201307

GCC SPEC

sub89990-48241

main89990-48240iGGL15..GCC201203-201307

LATIN AMERICA SPEC W/O(CHILE)

sub89990-48241

main89990-48241iGGL15..GCC201308-201406

LATIN AMERICA SPEC W/O(CHILE),P/N LABEL=8999048241

sub89990-48620

main89990-48241iAGL10,GGL15..LHD..EUR201308-201406

P/N LABEL=8999048241

sub89990-48620

main89990-48241iAGL10,GGL15..LHD..EUR201308-201406

GCC SPEC,P/N LABEL=8999048241

sub89990-48620

main89990-48242iAGL10,GGL15..LHD..EUR201406

GCC SPEC,P/N LABEL=8999048242

sub89990-48243

main89990-48242iGGL15..GCC201406

LATIN AMERICA SPEC W/O(CHILE),P/N LABEL=8999048242

sub89990-48243

main89990-48242iGGL15..GCC201406

P/N LABEL=8999048242

sub89990-48243

main89990-48250iGYL1#..RHD201203-201307

sub89990-48251

main89990-48251iGYL1#..RHD201308-201407

P/N LABEL=8999048251

sub89990-48520

main89990-48252iGYL1#..RHD201407

P/N LABEL=8999048252

sub89990-48253

main89990-48260iGYL15..GCC201203-201307

GCC SPEC

sub89990-48261

main89990-48260iGYL1#..LHD..EUR201203-201307

LATIN AMERICA SPEC W/O(CHILE)

sub89990-48261

main89990-48261iGYL1#..LHD..EUR201308-201407

GCC SPEC,P/N LABEL=8999048261

sub89990-48630

main89990-48261iGYL15..GCC201308-201407

P/N LABEL=8999048261

sub89990-48630

main89990-48261iGYL15..GCC201308-201407

LATIN AMERICA SPEC W/O(CHILE),P/N LABEL=8999048261

sub89990-48630

main89990-48262iGYL15..GCC201407

P/N LABEL=8999048262

sub89990-48263

main89990-48262iGYL1#..LHD..EUR201407

GCC SPEC,P/N LABEL=8999048262

sub89990-48263

main89990-48262iGYL1#..LHD..EUR201407

LATIN AMERICA SPEC W/O(CHILE),P/N LABEL=8999048262

sub89990-48263

main89990-48310iGGL15..GCC201203-201307

sub89990-48311

main89990-48311iGGL15..GCC201308-201405

P/N LABEL=8999048311

sub89990-48570

main89990-48312iGGL15..GCC201405

P/N LABEL=8999048312

sub89990-48313

main89990-48330iAGL10,GGL15..RHD201105-201108

sub89990-48053

main89990-48340iAGL10,GGL15..LHD..EUR201105-201108

GCC SPEC

sub89990-48063

main89990-48340iGGL15..GCC201105-201108

MOROCCO SPEC

sub89990-48063

main89990-48350iGYL1#..RHD201105-201108

sub89990-48191

main89990-48360iGYL1#..LHD201105-201108

sub89990-48083

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-48120iAGL10,GGL15,GYL1#200812-201107

sub899A0-47010

main899A0-47010iAGL10,GGL15,GYL1#201108-201203

89992COSCILLATOR, INDOOR ELECTRICAL KEY, NO.2

main89992-48100iAGL10,GGL15200812-201203

main89992-48110iGYL1#200903-201203

89997ANTENNA, ELECTRICAL KEY

main89997-48050iAGL10,GGL15,GYL1#200812-201203

9011906915

main90119-06915

9017906264

main90179-06264

9017906274

main90179-06274

9 parts on this diagram · 4 diagrams in section
