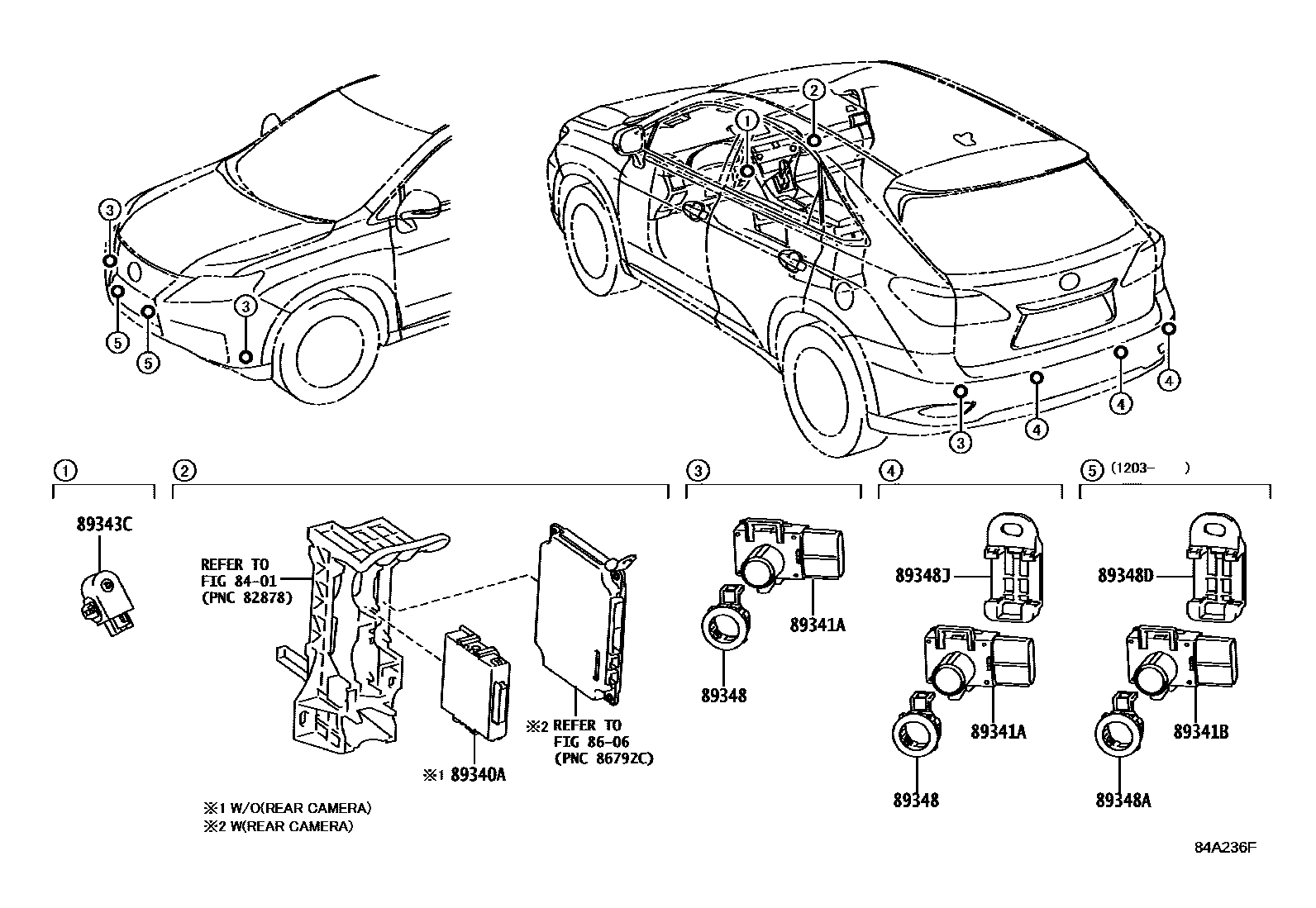

CLEARANCE & BACK SONAR

8401

8606

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-48010supersedes 89340-48020i200812-201203

CLEARANCE & BACK SONAR-WITH

main89340-48030supersedes 89340-48020i201203

CLEARANCE & BACK SONAR-WITH

89341ASENSOR, ULTRASONIC, NO.1

main89341-33190-A2×6i201203-201212

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89341-33190-A3×6i201203-201212

ULTRA LUXURY PACKAGE&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,QUARTZ WHITE CS.,078

main89341-33190-B7×6i201203-201212

CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9

main89341-33190-B9×6i201203-201212

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,PLATI

main89341-33190-C3×6i201203-201212

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89341-33190-C4×6i201203-201212

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89341-33190-D3×6i201203-201212

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,GARNET RED MC.,3S0

main89341-33190-E3×6i201203-201212

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,SLEEK ECRU ME.,4U7

main89341-33190-E5×6i201203-201212

CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3

main89341-33190-J5×6i201203-201212

ULTRA LUXURY PACKAGE&HEADLAMP-LED & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,LAPIS LAZUL

main89341-33210×6i201408-201509

AUSTRALIA SPEC&ULTRA LUXURY PACKAGE&RADIANT AERO STYLE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)

main89341-33210-A2×6i201301-201509

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89341-33210-A3×6i201301-201509

CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083

main89341-33210-A4×6i201301-201308

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,QUARTZ WHITE CS.,078

main89341-33210-B5×6i201301-201509

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,MERCU

main89341-33210-B6×6i201301-201509

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,PLATI

main89341-33210-B7×6i201408-201509

AUSTRALIA SPEC&LUXURY PACKAGE&RADIANT AERO STYLE&CLEARANCE & BACK SONAR-WITH,GRAYM.M.,077 ,1J4 ,212 ,217 ,3S0 ,4U7 ,4V3

main89341-33210-C2×6i201408-201509

AUSTRALIA SPEC&ULTRA LUXURY PACKAGE&RADIANT AERO STYLE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,BLACK,212

main89341-33210-C3×6i201301-201509

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89341-33210-D1×6i201301-201509

ULTRA LUXURY PACKAGE&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,GARNET RED MC.,3S0

main89341-33210-E6×6i201301-201509

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,SLEEK ECRU ME.,4U7

main89341-33210-E7×6i201301-201509

CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3

main89341-33210-J5×6i201301-201509

ULTRA LUXURY PACKAGE&HEADLAMP-LED & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,LAPIS LAZUL

main89341-48010-A0×6i200812-201203

EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

sub89341-60030

main89341-48010-A1×6i200903-201203

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,QUARTZ WHITE C.S.,078

sub89341-60030

main89341-48010-B0×6i200812-201108

EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0

sub89341-60030

main89341-48010-B4×6i200812-201203

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1

sub89341-60030

main89341-48010-C0×6i200812-201203

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,BLACK,212

sub89341-60030

main89341-48010-C4×6i200910-201203

CLEARANCE & BACK SONAR-WITH,BLACK OPAL MC.,214

sub89341-60030

main89341-48010-C5×6i201008-201203

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,STARLIGHTBLACK GF.,217

sub89341-60030

main89341-48010-D0×6i200812-201203

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1

sub89341-60030

main89341-48010-E0×6i200812-201008

EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,BEIGE ME.,4T1

sub89341-60030

main89341-48010-E1×6i200812-201008

EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,SABLE M.M.,4T5

sub89341-60030

main89341-48010-E4×6i201008-201203

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,SLEEK ECRU ME.,4U7

sub89341-60030

main89341-48010-J0×6i200812-201008

EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,DK.BLUE MC. CC.,8U0

sub89341-60030

main89341-48010-J1×6i200812-201203

EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9

sub89341-60030

main89341-48010-P3×6i201108-201203

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9

sub89341-60030

89341BSENSOR, ULTRASONIC, NO.2

main89341-33190-A2×2i201203-201212

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89341-33190-A3×2i201203-201212

ULTRA LUXURY PACKAGE&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,QUARTZ WHITE CS.,078

main89341-33190-B7×2i201203-201212

CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9

main89341-33190-B9×2i201203-201212

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,PLATI

main89341-33190-C3×2i201203-201212

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89341-33190-C4×2i201203-201212

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89341-33190-D3×2i201203-201212

ULTRA LUXURY PACKAGE&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,GARNET RED MC.,3S0

main89341-33190-E3×2i201203-201212

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,SLEEK ECRU ME.,4U7

main89341-33190-E5×2i201203-201212

CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3

main89341-33190-J5×2i201203-201212

ULTRA LUXURY PACKAGE&HEADLAMP-LED & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,LAPIS LAZUL

main89341-33210×2i201408-201509

AUSTRALIA SPEC&ULTRA LUXURY PACKAGE&RADIANT AERO STYLE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)

main89341-33210-A2×2i201408-201509

AUSTRALIA SPEC&ULTRA LUXURY PACKAGE&RADIANT AERO STYLE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,

main89341-33210-A3×2i201301-201509

CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083

main89341-33210-B5×2i201301-201509

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,MERCU

main89341-33210-B6×2i201301-201509

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,PLATI

main89341-33210-B7×2i201408-201509

AUSTRALIA SPEC&LUXURY PACKAGE&RADIANT AERO STYLE&CLEARANCE & BACK SONAR-WITH,GRAYM.M.,077 ,1J4 ,212 ,217 ,3S0 ,4U7 ,4V3

main89341-33210-C2×2i201301-201509

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89341-33210-C3×2i201301-201509

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89341-33210-D1×2i201408-201509

AUSTRALIA SPEC&ULTRA LUXURY PACKAGE&RADIANT AERO STYLE&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,GARNET RED MC.,3S0

main89341-33210-E6×2i201301-201509

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,SLEEK ECRU ME.,4U7

main89341-33210-E7×2i201301-201509

CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3

main89341-33210-J5×2i201301-201509

ULTRA LUXURY PACKAGE&HEADLAMP-LED & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,LAPIS LAZUL

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-72010i201408

AUSTRALIA SPEC&LUXURY PACKAGE&RADIANT AERO STYLE&CLEARANCE & BACK SONAR-WITH

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-33060-A3×6i200812-201203

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89348-33060-A5×6i200903-201203

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,QUARTZ WHITE C.S.,078

main89348-33060-B7×6i200812-201108

EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0

main89348-33060-C1×6i200812-201203

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,BLACK,212

main89348-33060-C3×6i200910-201203

CLEARANCE & BACK SONAR-WITH,BLACK OPAL MC.,214

main89348-33060-C4×6i201008-201203

EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,STARLIGHTBLACK GF.,217

main89348-33060-D4×6i200812-201203

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1

main89348-33060-E4×6i200812-201008

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,BEIGE ME.,4T1

main89348-33060-E6×6i200812-201008

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,SABLE M.M.,4T5

main89348-33060-J6×6i200812-201008

EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,DK.BLUE MC. CC.,8U0

main89348-33060-J7×6i201008-201203

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9

main89348-33060-L0×6i201008-201203

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,SLEEK ECRU ME.,4U7

main89348-33060-P2×6i200812-201203

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1

main89348-33060-P9×6i201108-201203

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9

main89348-33100×6i201408-201509

AUSTRALIA SPEC&ULTRA LUXURY PACKAGE&RADIANT AERO STYLE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)

main89348-33100-A2×6i201408-201509

AUSTRALIA SPEC&ULTRA LUXURY PACKAGE&RADIANT AERO STYLE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,

main89348-33100-A3×6i201203-201308

ULTRA LUXURY PACKAGE&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,QUARTZ WHITE CS.,078

main89348-33100-A5×6i201308-201401

LIMITED PACKAGE-EUROPE LCA2&CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083

main89348-33100-B7×6i201203-201509

CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9

main89348-33100-B8×6i201408-201509

AUSTRALIA SPEC&ULTRA LUXURY PACKAGE&RADIANT AERO STYLE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER

main89348-33100-C2×6i201408-201509

AUSTRALIA SPEC&ULTRA LUXURY PACKAGE&RADIANT AERO STYLE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,BLACK,212

main89348-33100-C3×6i201203-201509

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89348-33100-D1×6i201203-201509

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,GARNET RED MC.,3S0

main89348-33100-E3×6i201203-201509

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,SLEEK ECRU ME.,4U7

main89348-33100-E4×6i201203-201509

CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3

main89348-33100-J4×6i201203-201509

ULTRA LUXURY PACKAGE&HEADLAMP-LED & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,LAPIS LAZUL

main89348-33100-P0×6i201408-201509

AUSTRALIA SPEC&LUXURY PACKAGE&RADIANT AERO STYLE&CLEARANCE & BACK SONAR-WITH,GRAYM.M.,077 ,1J4 ,212 ,217 ,3S0 ,4U7 ,4V3

89348ARETAINER, ULTRASONIC SENSOR, NO.2

main89348-33100×2i201408-201509

AUSTRALIA SPEC&ULTRA LUXURY PACKAGE&RADIANT AERO STYLE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)

main89348-33100-A2×2i201408-201509

AUSTRALIA SPEC&ULTRA LUXURY PACKAGE&RADIANT AERO STYLE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,

main89348-33100-A3×2i201203-201308

ULTRA LUXURY PACKAGE&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,QUARTZ WHITE CS.,078

main89348-33100-A5×2i201308-201509

CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083

main89348-33100-B7×2i201203-201509

CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9

main89348-33100-B8×2i201408-201509

AUSTRALIA SPEC&ULTRA LUXURY PACKAGE&RADIANT AERO STYLE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER

main89348-33100-C2×2i201408-201509

AUSTRALIA SPEC&ULTRA LUXURY PACKAGE&RADIANT AERO STYLE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,BLACK,212

main89348-33100-C3×2i201408-201509

BRUNEI SPEC&RADIANT AERO STYLE&CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89348-33100-D1×2i201203-201509

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&CLEARANCE & BACK SONAR-WITH,GARNET RED MC.,3S0

main89348-33100-E3×2i201408-201509

RADIANT AERO STYLE&CLEARANCE & BACK SONAR-WITH,SLEEK ECRU ME.,4U7

main89348-33100-E4×2i201203-201509

CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3

main89348-33100-J4×2i201203-201509

ULTRA LUXURY PACKAGE&HEADLAMP-LED & AFS&LEXUS LOGO PLATE-FRONT ILLUMINATED(LED)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH,LAPIS LAZUL

main89348-33100-P0×2i201408-201509

AUSTRALIA SPEC&LUXURY PACKAGE&RADIANT AERO STYLE&CLEARANCE & BACK SONAR-WITH,GRAYM.M.,077 ,1J4 ,212 ,217 ,3S0 ,4U7 ,4V3

89348DCLIP, ULTRASONIC SENSOR

main89348-33090×3i200812-201203

89348JCLIP, ULTRASONIC SENSOR

main89348-33090×3i201203-201509

CLEARANCE & BACK SONAR-WITH

10 parts on this diagram · 2 diagrams in section
