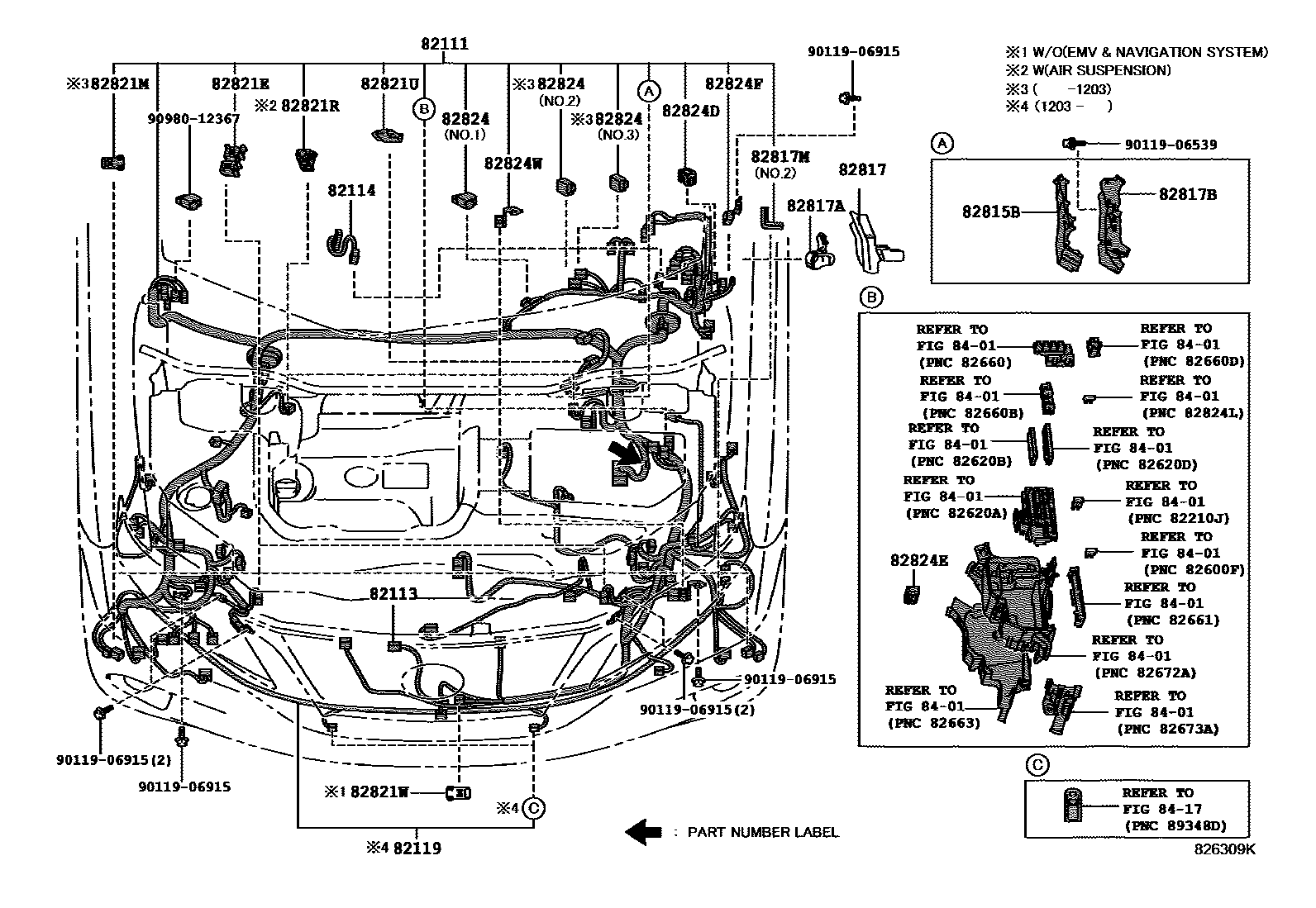

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
82113WIRE, ENGINE ROOM, NO.3
EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
82114WIRE, ENGINE ROOM, NO.4
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)
82119WIRE, SENSOR
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
82815BCOVER, WIRING HARNESS PROTECTOR
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82817MPROTECTOR, WIRING HARNESS, NO.12
NO.1
NO.1
NO.2
82821ECOVER, CONNECTOR
82821MCOVER, CONNECTOR
82821RCOVER, CONNECTOR
SUSPENSION-AIR SUSPENTION&HEADLAMP-LED & AFS
82821UCOVER, CONNECTOR
82821WCOVER, CONNECTOR
82824CONNECTOR, WIRING HARNESS
NO.3
NO.2
NO.1
82824DCONNECTOR, WIRING HARNESS
82824ECONNECTOR, WIRING HARNESS
82824FCONNECTOR, WIRING HARNESS
82824WCONNECTOR, WIRING HARNESS
8401
8417
9011906539
main90119-06539
9011906915
main90119-06915
9098012367
main90980-12367
24 parts on this diagram · 24 diagrams in section
