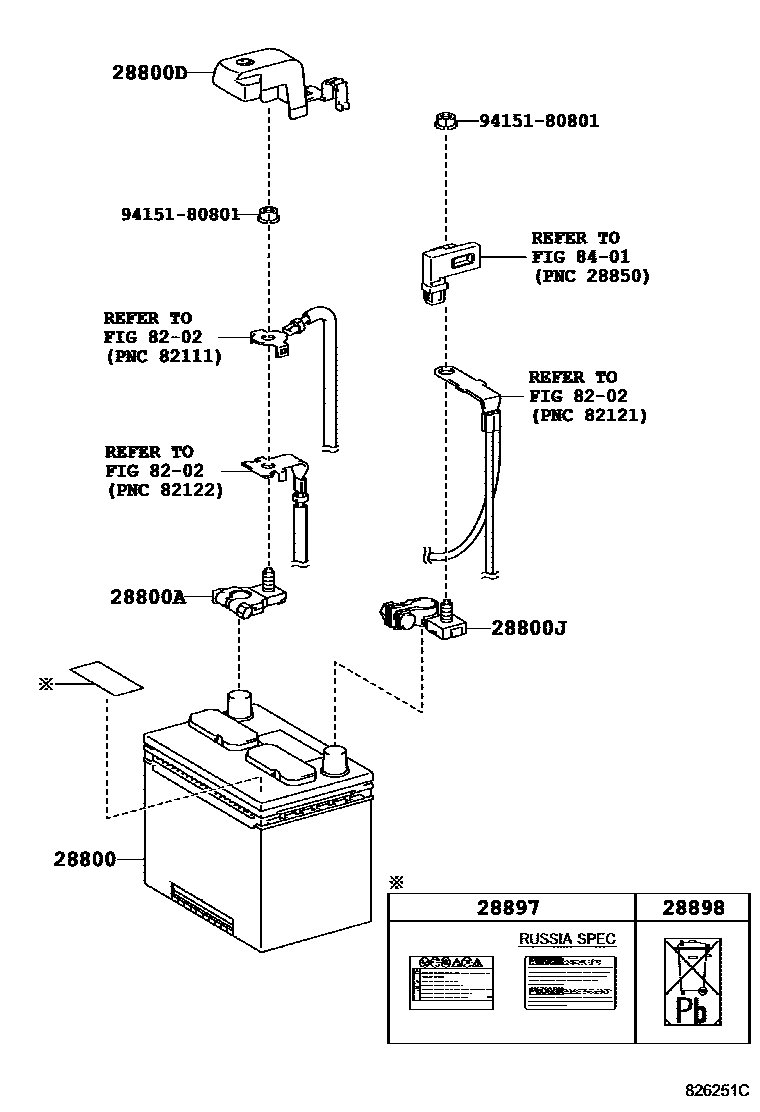

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-17121i1ARFE,2GRFE..AGL10,GGL15200812-201204

80D26L

sub28800-38080

main28800-31290i2GRFXE..GYL1#200903-201509

S55D23L

sub28800-31291

main28800-38080i1ARFE,2GRFE..AGL10,GGL15201204-201509

80D26L

sub28800-38081

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GRFXE..GYL1#200903-201203

main90982-05062i1ARFE,2GRFE..AGL10,GGL15200812-201203

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-52060i1ARFE,2GRFE..AGL10,GGL15200812-201203

28800JTERMINAL, BATTERY NEGATIVE

main90982-06060i1ARFE,2GRFE..AGL10,GGL15200812-201203

28897PLATE, BATTERY CAUTION

main28897-31010i2GRFE..GGL15..LHD..EUR201203

BEIJING SPEC

sub28897-38060

main28897-31010i1ARFE..AGL10..LHD201008-201203

sub28897-38060

main28897-31010i1ARFE..AGL10..LHD201203

CHINA(EXCEPT BEIJING) SPEC

sub28897-38060

28898PLATE, BATTERY

main28898-46020i1ARFE..AGL10..RHD;2GRFE..GGL15..EUR201203

BRAZIL SPEC

main28898-46020i1ARFE..AGL10..RHD;2GRFE..GGL15..EUR200812-201203

8202

8401

9415180801

main94151-80801

9 parts on this diagram · 5 diagrams in section
