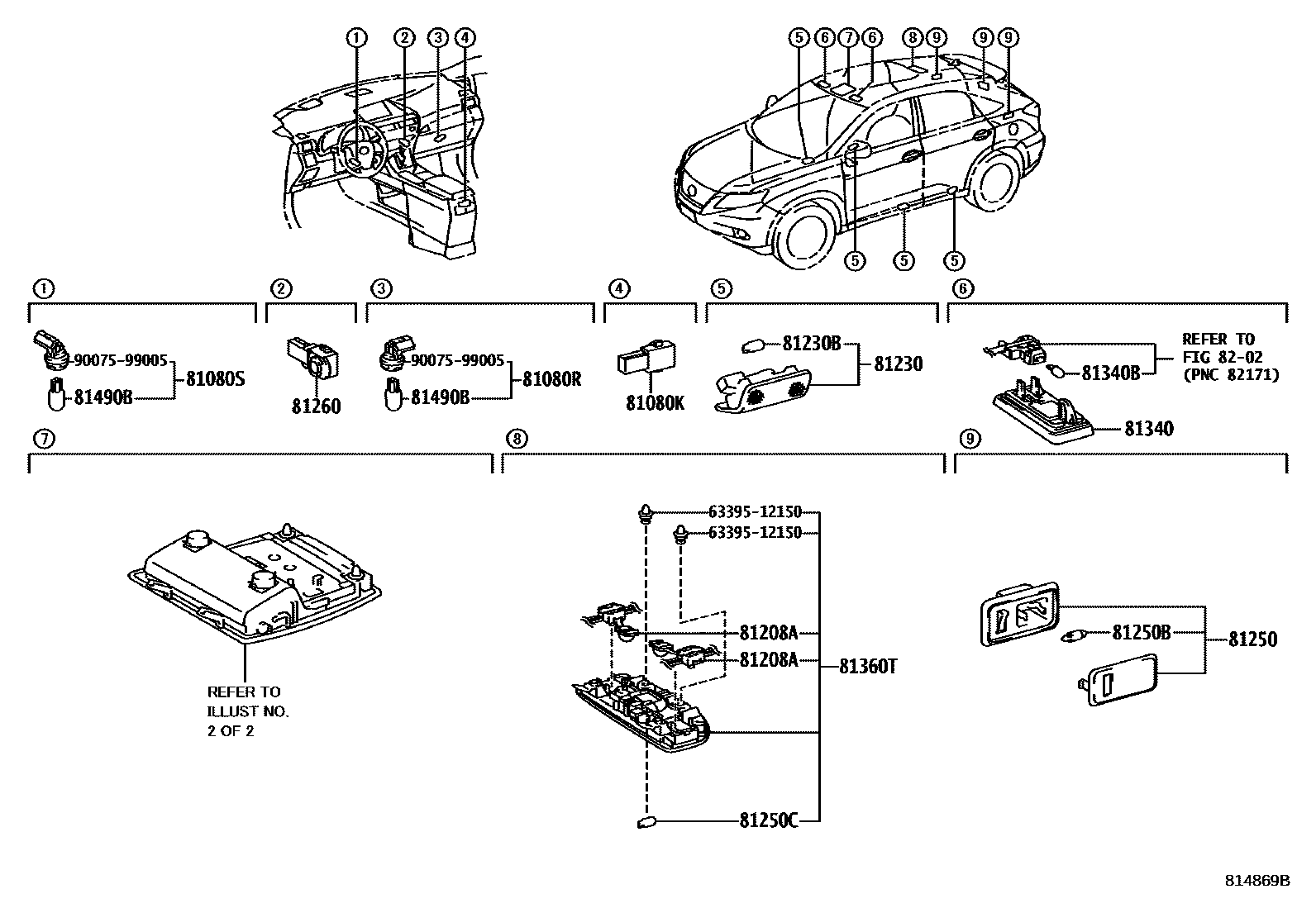

INTERIOR LAMP
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81208LAMP SUB-ASSY, MAP
81208ALAMP SUB-ASSY, MAP, NO.2
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
12V 5W
81250CBULB, SPOT LAMP
12V 8W
81260LAMP ASSY, GLOVE BOX
81340LAMP ASSY, VANITY
IVORY,TRIM0#
IVORY,TRIM0#,40
LT.GRAY,TRIM1#,2#,3#,40
LT.GRAY,TRIM1#,20,3#,40
LT.GRAY,TRIM10,20,30,40
LT.GRAY,TRIM1#,2#
BLACK,TRIM21,22
BLACK,TRIM11,21,22,31,41
BLACK,TRIM22
81340BBULB (FOR VANITY LAMP)
12V 8W
81360TLAMP ASSY, SPOT
IVORY,TRIM0#
IVORY,TRIM0#,40
LT.GRAY,TRIM10,20,30,40
LT.GRAY,TRIM1#,2#,3#,40
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,20,30,40
LT.GRAY,TRIM1#,2#,30,40
BLACK,TRIM11,21,22,31,32,41
BLACK,TRIM22,32
BLACK,TRIM32
BLACK,TRIM11,21,22,31,41
81490BBULB (FOR FOOT LAMP)
12V 3.8W
8202
6339512150CLIP, ROOF HEADLINING TRIM
9007599005
18 parts on this diagram · 3 diagrams in section
