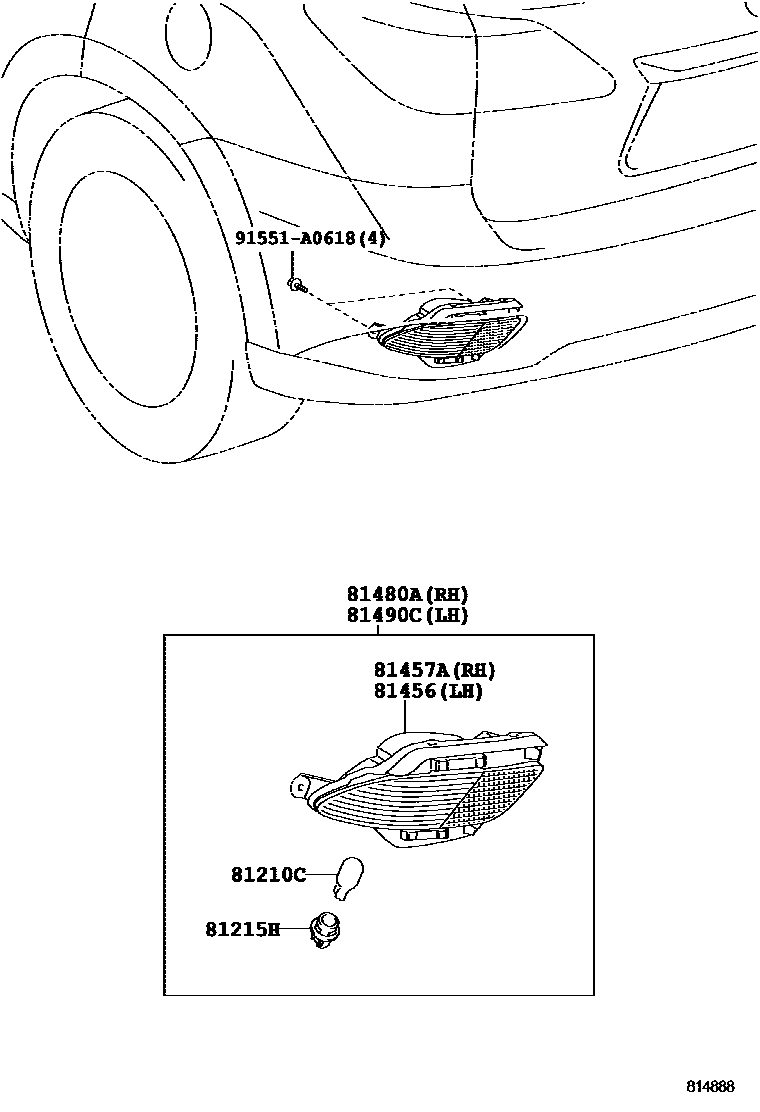

REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main90981-13043iAGL10,GGL15,GYL1#..EUR200812-201509

12V 21W

81215HSOCKET, REAR FOG LAMP

main90075-99080iAGL10,GGL15,GYL1#..EUR200812-201203

81456LENS & BODY, REAR FOG LAMP, LH

main81456-48020iAGL10,GGL15,GYL1#..EUR200812-201203

81457ALENS & BODY, REAR FOG LAMP, RH

main81457-48020iAGL10,GGL15,GYL1#..EUR200812-201203

81480ALAMP ASSY, REAR FOG, RH

main81480-48020iAGL10,GGL15,GYL1#..EUR200812-201509

81490CLAMP ASSY, REAR FOG, LH

main81490-48020iAGL10,GGL15,GYL1#..EUR200812-201509

91551A0618

main91551-A0618

7 parts on this diagram · 1 diagram in section
