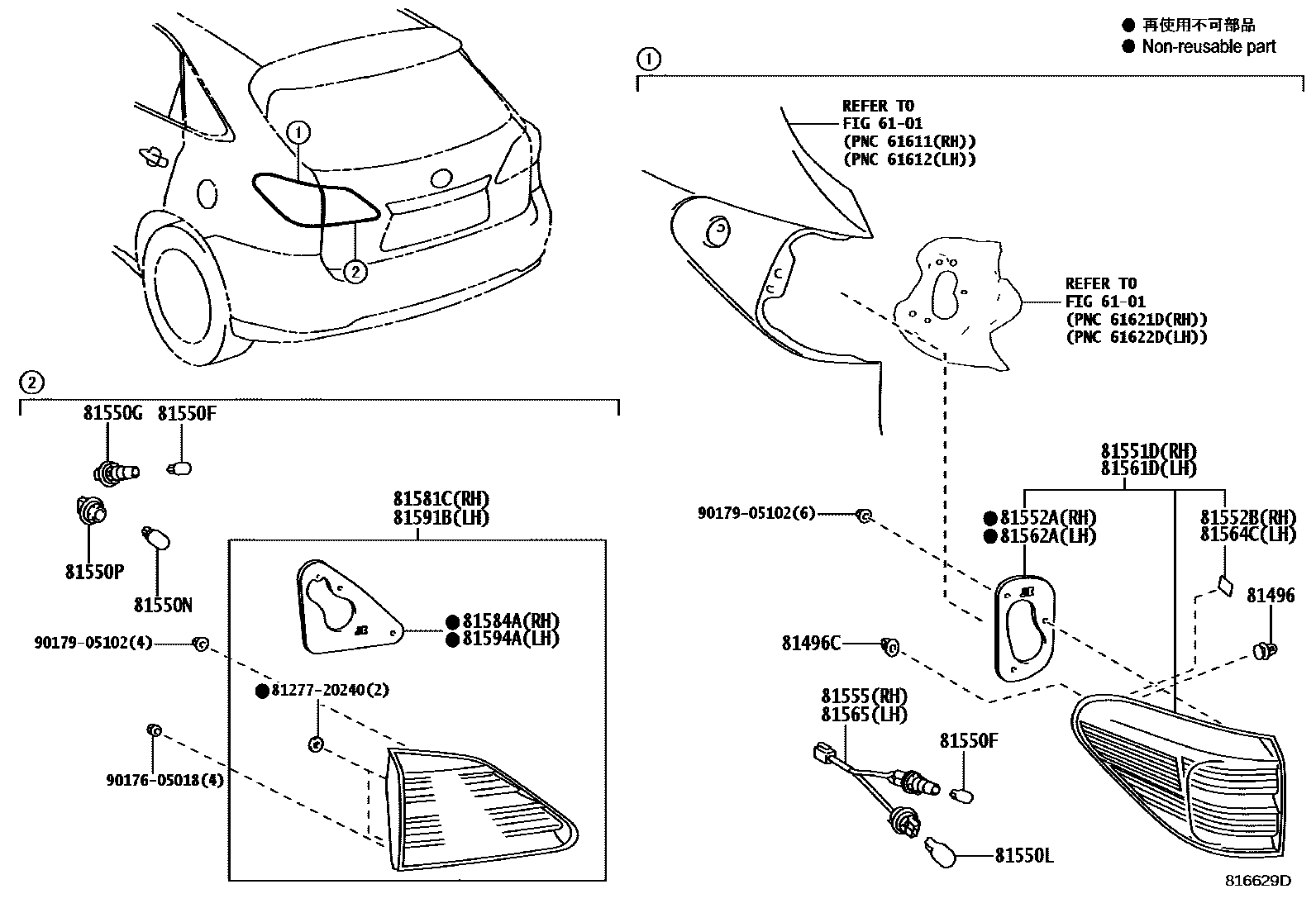

REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81550FBULB, TAILLAMP
81550GSOCKET, TAILLAMP
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81550PSOCKET, BACK UP LAMP
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81552AGASKET, REAR COMBINATION LAMP, RH
81552BPACKING, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81562AGASKET, REAR COMBINATION LAMP, LH
81564CPACKING, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81581CLENS AND BODY, REAR LAMP, RH
81584AGASKET, REAR LAMP RH
81591BLENS AND BODY, REAR LAMP, LH
81594AGASKET, REAR LAMP LH
8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS
main81277-20240
9017605018
main90176-05018
9017905102
main90179-05102
23 parts on this diagram · 1 diagram in section
