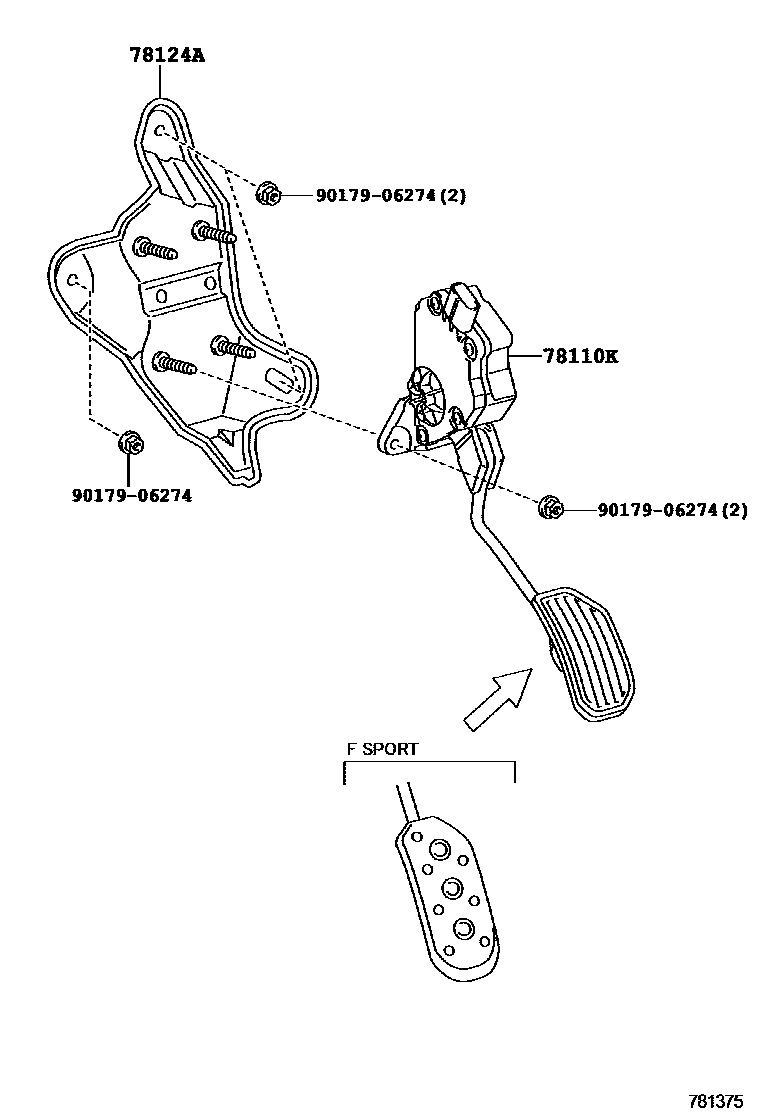

ACCELERATOR LINK

0001 1 0002 1W(KICK DOWN SWITCH SYSTEM) 0003 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-33010iAGL10,GYL1#..RHD200903-201101

main78110-33011iAGL10,GYL1#..RHD201203-201403

sub78110-33012

main78110-33020iGYL1#..LHD200903-201007

main78110-33110iAGL10,GYL1#..LHD201203-201403

sub78110-33111

main78110-48010iGGL15..RHD200812-201104

main78110-48011iGGL15..RHD201104-201203

sub78110-48012

main78110-48020iGGL15..LHD200812-201203

sub78110-48021

main78110-48050iAGL10,GYL1#..RHD201403

sub78110-48051

main78110-48080iAGL10,GYL1#..LHD201403

sub78110-48081

main78110-48030supersedes 78110-48011iGYL15..RHD201203-201403

F SPORT

sub78110-48031

main78110-48040supersedes 78110-48020iGGL15..LHD201203-201403

F SPORT

sub78110-48041

main78110-48070supersedes 78110-48060iGYL15..RHD201403

F SPORT

sub78110-48071

main78110-48100supersedes 78110-48090iGGL15..LHD201403

F SPORT

sub78110-48101

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-48030iAGL10,GGL15,GYL1#..RHD200812-201203

main78124-48031iAGL10,GGL15,GYL1#..RHD201408

9017906274

main90179-06274

3 parts on this diagram · 3 diagrams in section
