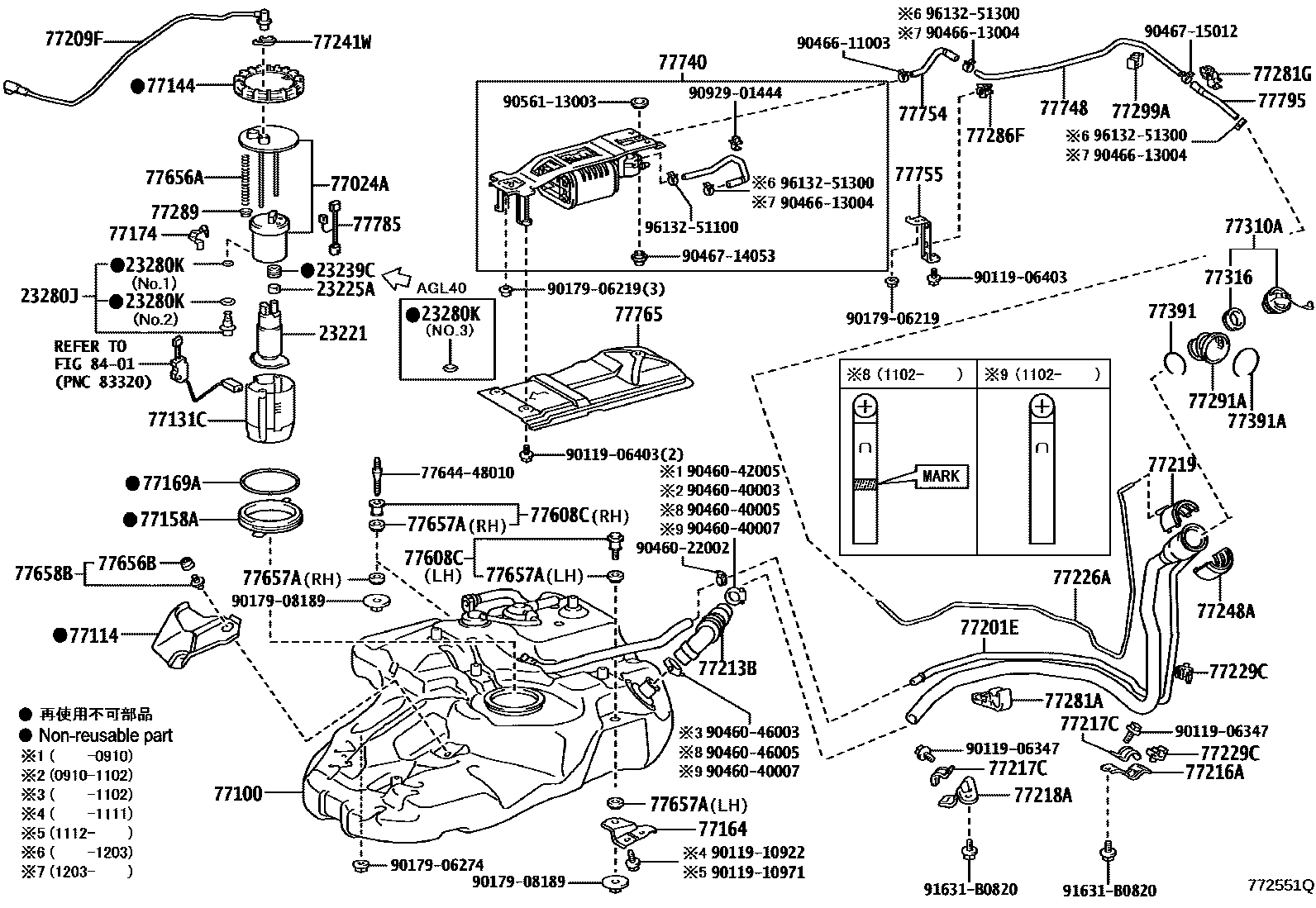

FUEL TANK & TUBE
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23239CSEAL, FUEL PUMP FILTER
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.3
NO.2
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
77114PLATE, FUEL TANK SIDE, REAR
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77158ASUPPORT, TANK SUCTION TUBE
77164BRACKET, FUEL TANK, REAR LH
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
BEIJING SPEC
CHINA(EXCEPT BEIJING) SPEC
BEIJING SPEC
CHINA(EXCEPT BEIJING) SPEC
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77219COVER, FUEL TANK FILLER PIPE
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77248AHOLDER, FUEL TANK FILLER PIPE COVER
77281ACLAMP, FUEL FILLER PIPE
77281GCLAMP, FUEL HOSE
77286FCLAMP, FUEL TUBE, NO.2
77289HOLDER, FUEL TANK PIPE SETTING
77291ASHIELD, FUEL TANK FILLER PIPE
77299ACLAMP, FUEL TUBE, NO.5
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77608CCUSHION SET, FUEL TANK
RH
LH
77656ACUSHION, FUEL TANK, NO.4
77656BCUSHION, FUEL TANK, NO.6
77657ACUSHION, FUEL TANK, NO.5
RH
LH
77658BCUSHION, FUEL TANK, NO.6
77740CANISTER ASSY, CHARCOAL
77748PIPE, CHARCOAL CANISTER, NO.2
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
77755BRACKET, CHARCOAL CANISTER OUTLET HOSE
77765PROTECTOR, CHARCOAL CANISTER
77785HARNESS, FUEL PUMP
77795HOSE, CHARCOAL CANISTER OUTLET, NO.2
8401
7764448010BOLT, FUEL TANK
9011906347
9011906403
9011910922
9011910971
9017906219
9017906274
9017908189
9046022002
9046040003
9046040005
9046040007
9046042005
9046046003
9046046005
9046611003
9046613004
9046714053
9046715012
9056113003
9092901444
91631B0820
9613251100
9613251300
72 parts on this diagram · 5 diagrams in section
