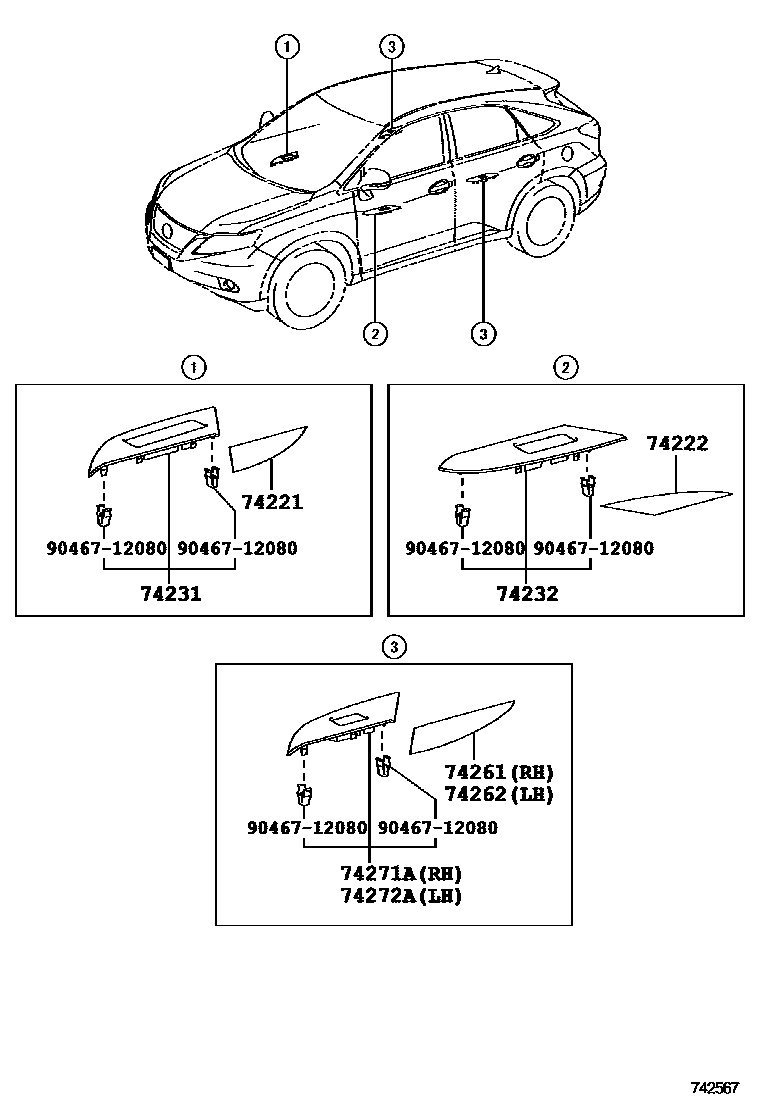

ARMREST & VISOR
74221COVER, DOOR ARMREST, RH
IVORY,TRIM0#
LIGHT GRAY,TRIM1#
BLACK,TRIM2#
74222COVER, DOOR ARMREST, LH
IVORY,TRIM0#
LIGHT GRAY,TRIM10
BLACK,TRIM1#,2#,3#,4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM10,11,20,22,30,31,32,41
F SPORT&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM00,40
WOOD PACKAGE,MD.BROWN,TRIM0#,2#
SEMI-ANILINE LEATHER SEAT & PANEL:BAMBOO&ORNAMENT PANEL-BAMBOO,NATURAL BROWN,TRIM00,20,30,40
SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM10,11,20,22,3#,41
F SPORT&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40
WOOD PACKAGE,MD.BROWN,TRIM0#,2#
SEMI-ANILINE LEATHER SEAT & PANEL:BAMBOO&ORNAMENT PANEL-BAMBOO,NATURAL BROWN,TRIM00,10,20,40
SECOND LINE
F SPORT&ORNAMENT PANEL-SILVER(PAINT),SILVER,TRIM1#,2#,3#,4#
F SPORT&ORNAMENT PANEL-SILVER(PAINT),SILVER,TRIM1#,2#,3#,4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#
WOOD PACKAGE,DK.BROWN,TRIM1#
WOOD PACKAGE,MD.BROWN,TRIM0#,2#
SEMI-ANILINE LEATHER SEAT & PANEL:BAMBOO&ORNAMENT PANEL-BAMBOO,NATURAL BROWN,TRIM00,20,30,40
WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#,3#,41
F SPORT&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40
WOOD PACKAGE,MD.BROWN,TRIM0#,2#
SECOND LINE
F SPORT&ORNAMENT PANEL-SILVER(PAINT),SILVER,TRIM1#,2#,3#,4#
F SPORT&ORNAMENT PANEL-SILVER(PAINT),SILVER,TRIM1#,2#,3#,4#
74261COVER, REAR DOOR ARMREST, RH
IVORY,TRIM0#
LIGHT GRAY,TRIM1#
BLACK,TRIM2#
74262COVER, REAR DOOR ARMREST, LH
IVORY,TRIM0#
LIGHT GRAY,TRIM10
BLACK,TRIM1#,2#,3#,4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM10,11,20,22,30,31,32,41
F SPORT&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40
WOOD PACKAGE,MD.BROWN,TRIM0#,2#
SEMI-ANILINE LEATHER SEAT & PANEL:BAMBOO&ORNAMENT PANEL-BAMBOO,NATURAL BROWN,TRIM00,10,20,40
SECOND LINE
F SPORT&ORNAMENT PANEL-SILVER(PAINT),SILVER,TRIM1#,2#,3#,4#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#
F SPORT&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40
WOOD PACKAGE,MD.BROWN,TRIM0#,2#
SEMI-ANILINE LEATHER SEAT & PANEL:BAMBOO&ORNAMENT PANEL-BAMBOO,NATURAL BROWN,TRIM00,10,20,40
SECOND LINE
F SPORT&ORNAMENT PANEL-SILVER(PAINT),SILVER,TRIM1#,2#,3#,4#
9046712080
main90467-12080
9 parts on this diagram · 3 diagrams in section
