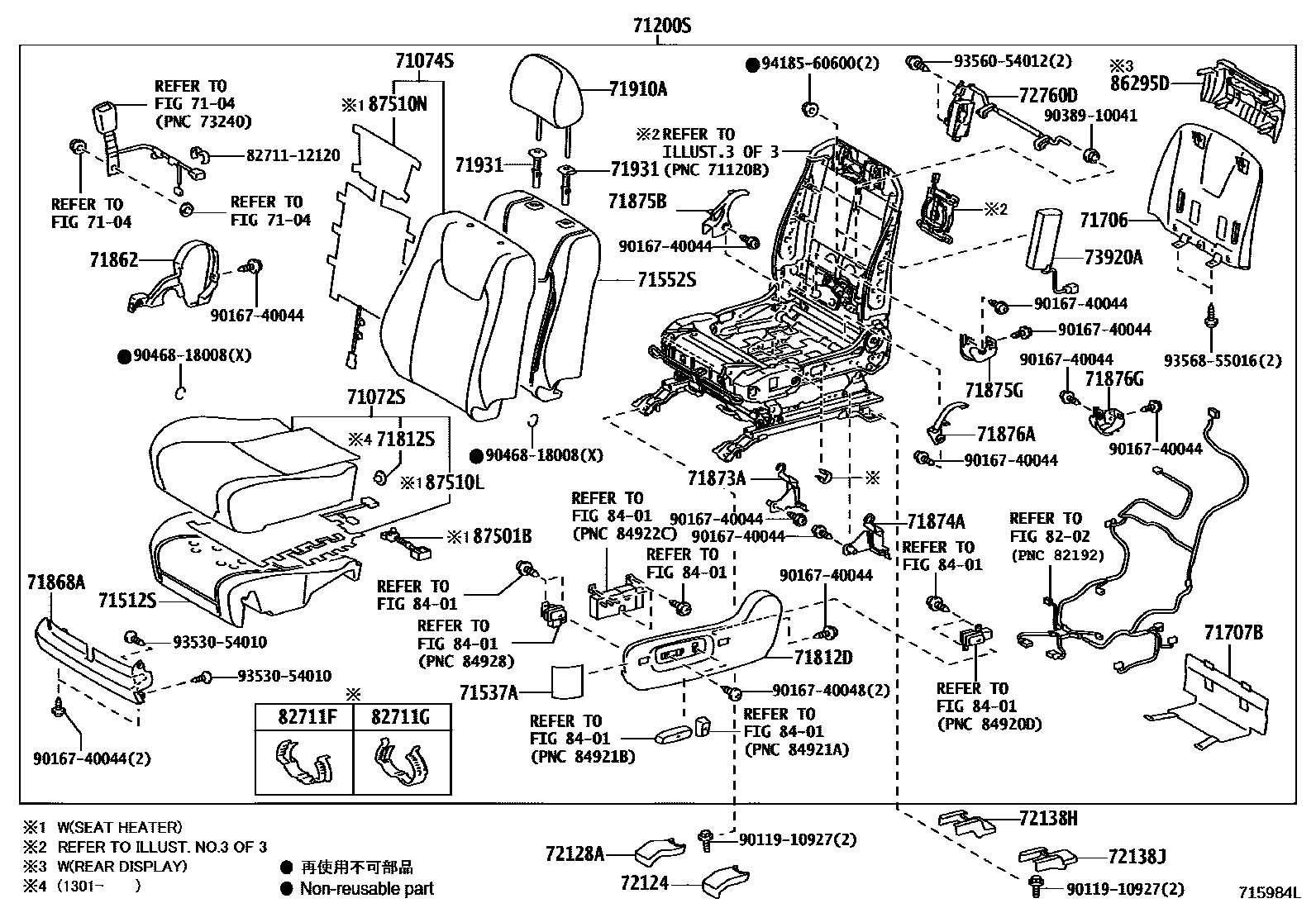

FRONT SEAT & SEAT TRACK
7104
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
PHILIPPINE SPEC,IVORY,TRIM0#
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71200SSEAT ASSY, FRONT LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
CHINA(EXCEPT BEIJING) SPEC,IVORY,TRIM0#
sub71200-48K32
CHINA(EXCEPT BEIJING) SPEC,LT.GRAY,TRIM1#
sub71200-48K32
CHINA(EXCEPT BEIJING) SPEC,BLACK,TRIM2#
sub71200-48K32
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71537APROTECTOR, FRONT SEAT CUSHION
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
71707BCOVER SUB-ASSY, FRONT SEATBACK BOARD
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#
71812DSHIELD, FRONT SEAT CUSHION, LH
71812SCLIP, FRONT SEAT CUSHION SHIELD, LH
ULTRA LUXURY PACKAGE&SEMI-ANILINE LEATHER SEAT & WOOD PANEL&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&SEAT HEATER-WITH(DRIVER & PASSENGER)&WITH(REAR
ULTRA LUXURY PACKAGE&SEMI-ANILINE LEATHER SEAT & WOOD PANEL&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
ULTRA LUXURY PACKAGE&SEMI-ANILINE LEATHER SEAT & WOOD PANEL&SEAT HEATER-WITH(DRIVER & PASSENGER)&WITH(REAR DISPLAY),IVORY,TRIM0#
ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)&WITH(REAR DISPLAY),IVORY,TRIM0#
LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION,IVORY,TRIM0#
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&SEAT HEATER-WITH(DRIVER & PASSENGER)&WITH(REAR DISPLAY),IVORY,TRIM0#
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
ULTRA LUXURY PACKAGE&SEMI-ANILINE LEATHER SEAT & WOOD PANEL&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&SEAT HEATER-WITH(DRIVER & PASSENGER),IVORY,TRI
ULTRA LUXURY PACKAGE&SEMI-ANILINE LEATHER SEAT & WOOD PANEL&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRI
ULTRA LUXURY PACKAGE&SEMI-ANILINE LEATHER SEAT & WOOD PANEL&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&SEAT HEATER-WITH(DRIVER & PASSENGER)&WITH(REAR
ULTRA LUXURY PACKAGE&SEMI-ANILINE LEATHER SEAT & PANEL:BAMBOO&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,3#,4#
ULTRA LUXURY PACKAGE&SEMI-ANILINE LEATHER SEAT & PANEL:BAMBOO&SEAT HEATER-WITH(DRIVER & PASSENGER)&WITH(REAR DISPLAY),BLACK,TRIM2#,3#,4#
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION,BLACK,TRIM2#,3#,4#
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,3#,4#
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&SEAT HEATER-WITH(DRIVER & PASSENGER)&WITH(REAR DISPLAY),BLACK,TRIM2#,3#,4#
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,3#,4#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
BLACK
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71873ASHIELD, FRONT SEAT CUSHION, LOWER
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876COVER, RECLINING ADJUSTER INSIDE, LH
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71910AHEADREST ASSY, FRONT SEAT
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK)&W(BUTTON),ULTRA LUXURY PACKAGE&SEMI-ANILINE LEATHER SEAT & WOOD PANEL&SEATHEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#
W(LOCK)&W(BUTTON),LUXURY PACKAGE,LT.GRAY,TRIM1#
W(LOCK)&W(BUTTON),LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#
W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1#
W(LOCK)&W/O(BUTTON),ULTRA LUXURY PACKAGE&SEMI-ANILINE LEATHER SEAT & WOOD PANEL&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#
W(LOCK)&W/O(BUTTON),LUXURY PACKAGE,LT.GRAY,TRIM1#
W(LOCK)&W/O(BUTTON),LUXURY PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
IVORY,TRIM0#
LT.GRAY,TRIM10
LT.GRAY,TRIM1#
BLACK,TRIM11,2#,3#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM1#,2#
BLACK,TRIM2#
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
IVORY,TRIM0#
LT.GRAY,TRIM10
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,3#,4#
BLACK,TRIM11,2#,3#,4#
BLACK,TRIM1#,2#
72138HCOVER, FRONT SEAT TRACK, LH REAR INNER
IVORY,TRIM0#
LT.GRAY,TRIM10
LT.GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM11,2#,3#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM10
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#,3#,4#
BLACK,TRIM11,2#,3#,4#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
73920AAIRBAG ASSY, FRONT SEAT, LH
8202
82711FCLAMP, WIRING HARNESS
82711GCLAMP, WIRING HARNESS
8401
86295DBASE, TELEVISION, NO.2
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
87510NHEATER ASSY, FRONT SEATBACK, LH
8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9011910927
9016740044
9016740048
9038910041
9046818008
9353054010
9356054012
9356855016
9418560600
48 parts on this diagram · 5 diagrams in section
