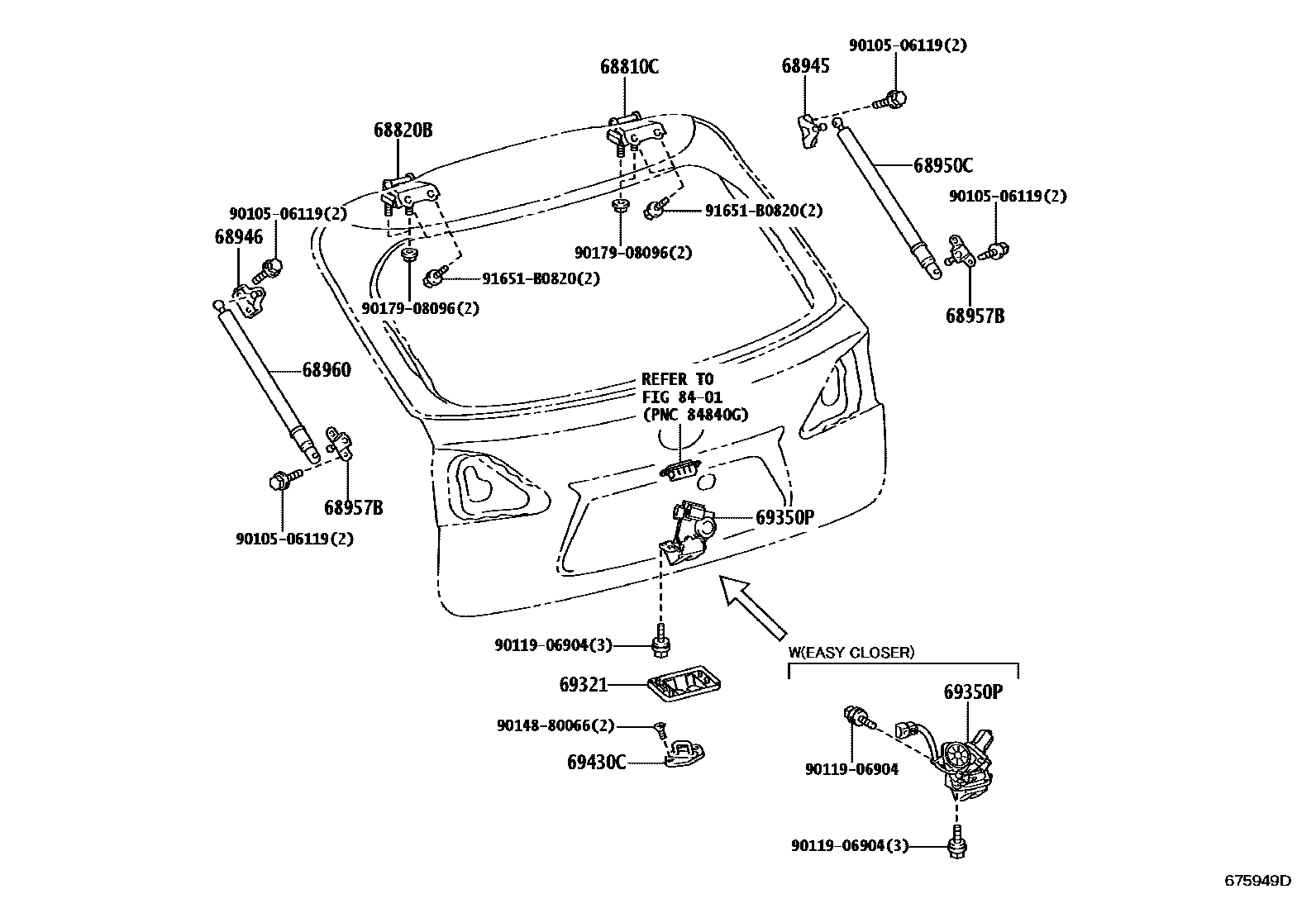

BACK DOOR LOCK & HANDLE

0001 1 0002 1W(POWER BACK DOOR) 0003 1W(POWER BACK DOOR)

68810CHINGE ASSY, BACK DOOR, RH

main68810-48010iAGL10,GGL15,GYL1#201203-201509

sub68810-48011

68820BHINGE ASSY, BACK DOOR, LH

main68810-48010iAGL10,GGL15,GYL1#200812-201203

sub68810-48011

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-48050iAGL10,GGL15,GYL1#200812-201203

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-48050iAGL10,GGL15,GYL1#200812-201203

68950CSTAY ASSY, BACK DOOR, RH

main68950-0E030supersedes 68950-0W510iAGL10,GGL15..RHD;GGL15,GYL15..GCC201203

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

sub68950-0E160

main68950-0W490iAGL10,GGL15,GYL15..LHD..EUR201203

HONG KONG SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

sub68950-0WG10

main68950-0W500iGYL15..RHD201203

TAIWAN SPEC

sub68950-0WG20

68957BBRACKET, BACK DOOR STAY, LOWER

main68957-48030×2iAGL10,GGL15,GYL1#200812-201203

68960STAY ASSY, BACK DOOR, LH

main68960-0E030supersedes 68960-0W510iAGL10,GGL15..RHD;GGL15,GYL15..GCC201203

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

sub68960-0E160

main68960-0W490iAGL10,GGL15,GYL15..LHD..EUR200812-201203

HONG KONG SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

sub68960-0WG10

main68960-0W500iGYL15..RHD201203

TAIWAN SPEC

sub68960-0WG20

69321COVER, BACK DOOR LOCK

main69321-48030supersedes 69321-48020iGYL1#..RHD201203

ICELAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-48060supersedes 69350-48080iAGL10,GGL15..RHD;GGL15,GYL15..GCC201203-201301

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

main69350-48061iAGL10,GGL15..RHD;GGL15,GYL15..GCC201302-201309

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

main69350-48062supersedes 69350-48080iAGL10,GGL15..RHD;GGL15,GYL15..GCC201310-201509

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

sub69350-48063

main69350-48070iGGL15..LHD..EUR200812-201008

CYPRUS SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

main69350-48071iAGL10,GGL15,GYL1#..LHD..EUR201302-201309

ICELAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

main69350-48072iAGL10,GGL15,GYL1#..LHD..EUR201310-201509

ICELAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iAGL10,GGL15,GYL1#200812-201203

8401

9010506119

main90105-06119

9011906904

main90119-06904

9014880066

main90148-80066

9017908096

main90179-08096

91651B0820

main91651-B0820

16 parts on this diagram · 3 diagrams in section
