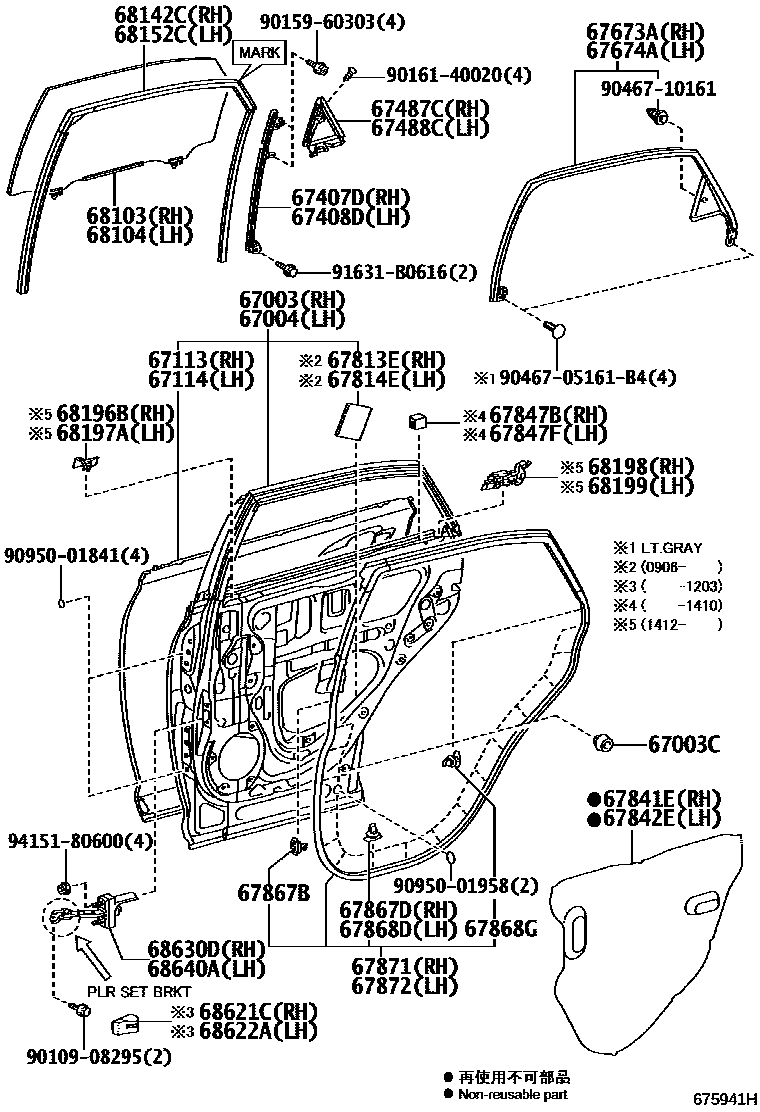

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-48130iAGL10,GGL15,GYL1#¥93,900200812-201509

67003CCUSHION, REAR DOOR PANEL

main90541-09069iAGL10,GGL15,GYL1#¥170200812-201203

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-48130iAGL10,GGL15,GYL1#¥93,900200812-201509

67113PANEL, REAR DOOR, OUTER RH

main67113-48060iAGL10,GGL15,GYL1#200812-201509

67114PANEL, REAR DOOR, OUTER LH

main67114-48060iAGL10,GGL15,GYL1#200812-201509

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-48050iAGL10,GGL15,GYL1#¥2,230200812-201203

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-48050iAGL10,GGL15,GYL1#¥2,230200812-201203

67487CSEAL, REAR DOOR REAR GUIDE, RH

main67487-48040iAGL10,GGL15,GYL1#¥3,160200812-201204

sub67487-48041¥3,160

main67487-48041iAGL10,GGL15,GYL1#¥3,160201205-201410

sub67487-48042¥3,160

main67487-48042iAGL10,GGL15,GYL1#¥3,160201410

67488CSEAL, REAR DOOR REAR GUIDE, LH

main67488-48040iAGL10,GGL15,GYL1#¥3,160200812-201204

sub67488-48041¥3,160

main67488-48041iAGL10,GGL15,GYL1#¥3,160201205-201410

sub67488-48042¥3,160

main67488-48042iAGL10,GGL15,GYL1#¥3,160201410

67673AGARNISH, REAR DOOR FRAME, RH

main67673-48030iAGL10,GGL15,GYL1#¥7,600200812-201101

sub67673-48031¥7,600

main67673-48031iAGL10,GGL15,GYL1#¥7,600201101-201203

67674AGARNISH, REAR DOOR FRAME, LH

main67674-48030iAGL10,GGL15,GYL1#¥7,600200812-201101

sub67674-48031¥7,600

main67674-48031iAGL10,GGL15,GYL1#¥7,600201101-201203

67813ESHEET, QUARTER PANEL SILENCER, RH

main67817-47010iAGL10,GGL15,GYL1#¥1,060200906-201203

67814ESHEET, QUARTER PANEL SILENCER, LH

main67817-47010iAGL10,GGL15,GYL1#¥1,060200906-201203

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-48050iAGL10,GGL15,GYL1#¥1,610200812-201203

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-48050iAGL10,GGL15,GYL1#¥1,610200812-201203

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-48040iAGL10,GGL15,GYL1#¥220200812-201410

67847FSEAL, REAR DOOR VENT, LH

main67847-48040iAGL10,GGL15,GYL1#¥220200812-201410

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main90467-04034iAGL10,GGL15,GYL1#¥60200812-201203

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iAGL10,GGL15,GYL1#¥100200812-201203

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iAGL10,GGL15,GYL1#¥100200812-201203

67868GRETAINER, DOOR WEATHERSTRIP

main67867-12150iGGL15¥100200812-201203

67871WEATHERSTRIP, REAR DOOR, RH

main67871-48060iAGL10,GGL15,GYL1#¥9,700200812-201203

67872WEATHERSTRIP, REAR DOOR, LH

main67872-48060iAGL10,GGL15,GYL1#¥9,700200812-201203

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-48100iAGL10,GGL15,GYL15..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY,NEW ZEALAND SPEC

main68103-48100iAGL10,GGL15,GYL15..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY,IRELAND SPEC

main68103-48100iAGL10,GGL15,GYL15..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY,CYPRUS SPEC

main68103-48100iAGL10,GGL15,GYL15..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY,AUSTRALIA SPEC

main68103-48100iAGL10,GGL15,GYL15..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY,SOUTH AFRICA SPEC

main68103-48100iAGL10,GGL15,GYL15..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY,THAILAND SPEC

main68103-48100iAGL10,GGL15,GYL15..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY,INDONESIA SPEC

main68103-48100iAGL10,GGL15,GYL1#..LHD..EUR¥28,800200812-201509

*TEM,T=4.0,DARK GLAY

main68103-48110iGGL15..GCC¥12,700200812-200907

*UVCT,T=4.0,GREEN

main68103-48110iGGL15..LHD..EUR¥12,700200812-200907

*UVCT,T=4.0,GREEN,KAZAKHSTAN SPEC

main68103-48150iGGL15,GYL1#..RHD200812-201007

*LAM,T=4.36,GREEN

sub68103-48151

main68103-48151iAGL10,GGL15,GYL1#..RHD201008-201509

*LAM,T=4.36,PRIVACY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-48130iGYL1#..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY,THAILAND SPEC

main68104-48130iAGL10,GGL15,GYL15..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY,INDONESIA SPEC

main68104-48130iGGL15,GYL15..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY

main68104-48130iGGL15,GYL15..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY,IRELAND SPEC

main68104-48130iGGL15,GYL15..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY,CYPRUS SPEC

main68104-48130iGGL15,GYL15..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY,AUSTRALIA SPEC

main68104-48130iGGL15,GYL15..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY,NEW ZEALAND SPEC

main68104-48130iGGL15,GYL15..RHD¥28,800200812-201509

*TEM,T=4.0,DARK GLAY,SOUTH AFRICA SPEC

main68104-48140iGGL15..GCC200812-200907

*UVCT,T=4.0,GREEN,KAZAKHSTAN SPEC

main68104-48140iGGL15..LHD..EUR200812-200907

*UVCT,T=4.0,GREEN

main68104-48150iGGL15,GYL1#..RHD200812-201007

*LAM,T=4.36,GREEN

sub68104-48151

main68104-48151iAGL10,GGL15,GYL1#..RHD201008-201509

*LAM,T=4.36,PRIVACY

68142CRUN, REAR DOOR GLASS, RH

main68142-48050iAGL10,GGL15,GYL1#¥4,510200812-201205

MARK 68142-48050

sub68142-48H00¥5,600

main68142-48051iAGL10,GGL15,GYL1#¥4,510201205-201401

MARK 68142-48051

main68142-48052iAGL10,GGL15,GYL1#¥4,510201401

MARK 68142-48052

68152CRUN, REAR DOOR GLASS, LH

main68152-48050iAGL10,GGL15,GYL1#¥4,510200812-201205

MARK 68152-48050

sub68152-48H00¥5,600

main68152-48051iAGL10,GGL15,GYL1#¥4,510201205-201401

MARK 68152-48051

main68152-48052iAGL10,GGL15,GYL1#¥4,510201401

MARK 68152-48052

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-48020iAGL10,GGL15,GYL1#¥350201412

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-48020iAGL10,GGL15,GYL1#¥350201412

68198SEAL, REAR DOOR BELT, REAR RH

main68198-48020iAGL10,GGL15,GYL1#¥850201412

68199SEAL, REAR DOOR BELT, REAR LH

main68199-48020iAGL10,GGL15,GYL1#¥850201412

68621CCOVER, REAR DOOR CHECK, RH

main68621-53010iAGL10,GGL15,GYL1#¥300200812-201203

68622ACOVER, REAR DOOR CHECK, LH

main68622-53010iAGL10,GGL15,GYL1#¥300200812-201203

68630DCHECK ASSY, REAR DOOR, RH

main68630-48050iGGL15,GYL1#¥4,460200812-201004

PLR SET BRKT:BLACK

main68630-48051iAGL10,GGL15,GYL1#¥4,460201004-201203

PLR SET BRKT:SILVER

main68630-48060iAGL10,GGL15,GYL1#¥4,460201203

68640ACHECK ASSY, REAR DOOR, LH

main68640-48040iGGL15,GYL1#¥4,460200812-201004

PLR SET BRKT:BLACK

main68640-48041iAGL10,GGL15,GYL1#¥4,460201004-201203

PLR SET BRKT:BLACK

main68640-48050iAGL10,GGL15,GYL1#¥4,460201203

9010908295

main90109-08295¥80

9015960303

main90159-60303¥70

9016140020

main90161-40020¥80

9046705161B4

main90467-05161B4

9046710161

main90467-10161¥90

9095001841

main90950-01841¥110

9095001958

main90950-01958¥120

91631B0616

main91631-B0616¥90

9415180600

main94151-80600¥60

44 parts on this diagram · 2 diagrams in section
