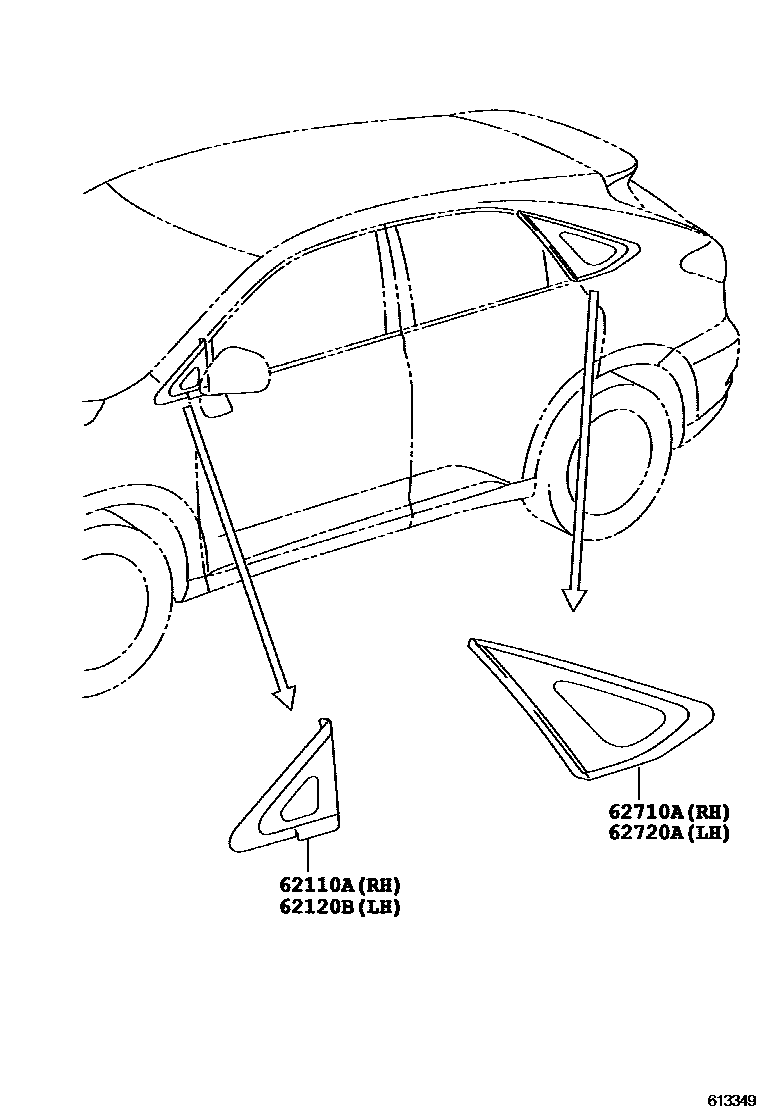

QUARTER WINDOW

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-48040iAGL10,GGL15,GYL1#200812-201203

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-48040iAGL10,GGL15,GYL1#200812-201203

62710AWINDOW ASSY, QUARTER, RH

main62710-48210iAGL10,GGL15,GYL1#..EUR200812-201203

*TEM,T=3.5,DARK.GRAY

62720AWINDOW ASSY, QUARTER, LH

main62720-48270iAGL10,GGL15,GYL1#201203

*TEM,T=3.5,DARK GRAY

4 parts on this diagram · 1 diagram in section
