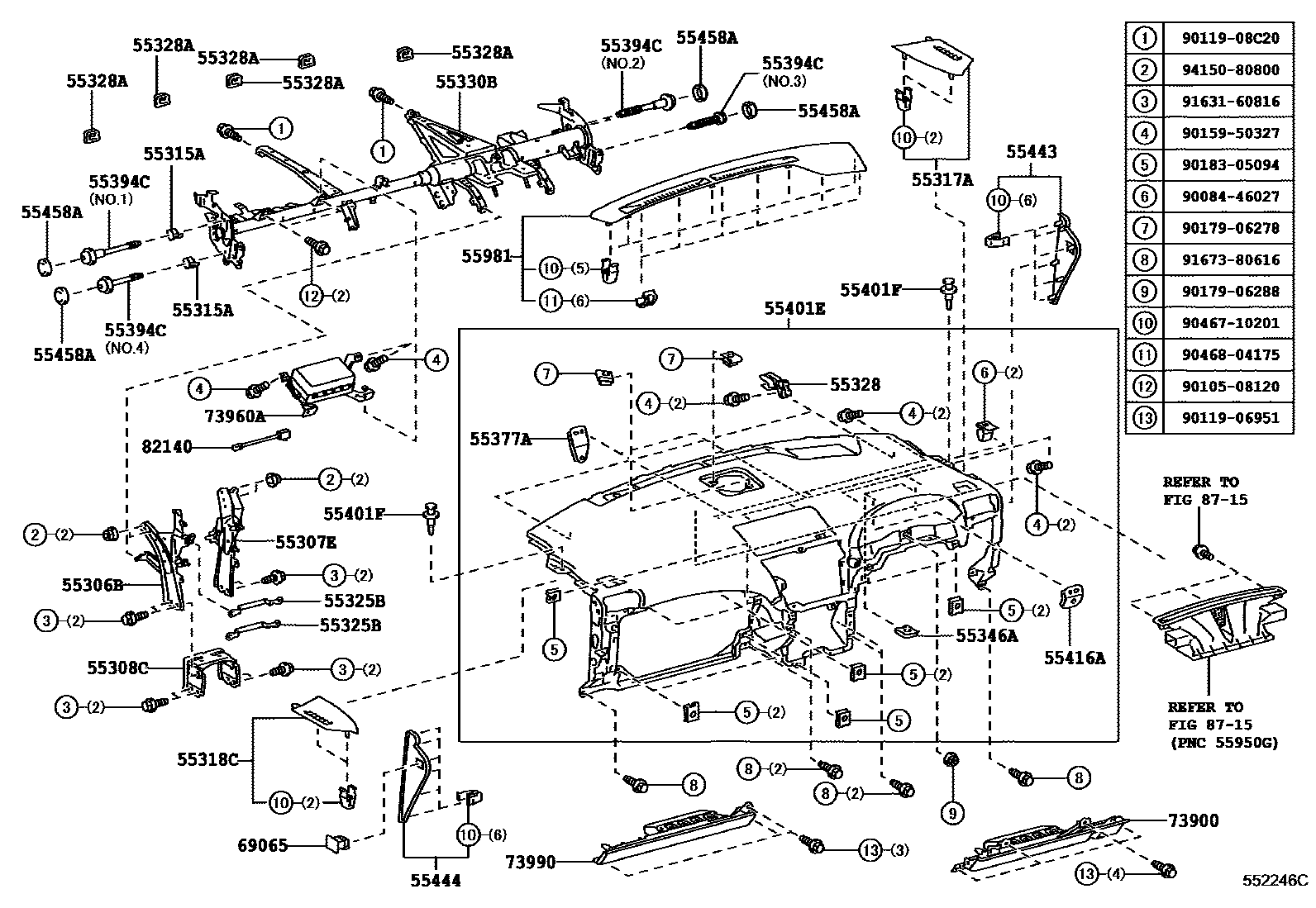

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1DRIVER SIDE 0004 1CENTER 0005 1CENTER 0006 1PASSENGER SIDE 0007 1PASSENGER SIDE 0008 1 0009 1DRIVER SIDE 0010 1DRIVER SIDE 0011 1CENTER 0012 1CENTER 0013 1PASSENGER SIDE 0014 1PASSENGER SIDE

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-48110iAGL10,GGL15,GYL1#..RHD200812-201203

main55306-48120iAGL10,GGL15,GYL1#..LHD201203

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-48110iAGL10,GGL15,GYL1#..RHD201203

main55307-48120iAGL10,GGL15,GYL1#..LHD200812-201203

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-48080iAGL10,GGL15,GYL1#200812-201203

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-48160×2iAGL10,GGL15,GYL1#201203-201509

55317APANEL, INSTRUMENT SIDE, RH

main55317-48140-C0iAGL10,GGL15,GYL1#201203-201306

BLACK,TRIM1#,2#,3#,4#

main55317-48140-E0iAGL10,GGL15,GYL1#201203-201306

DK. BROWN,TRIM0#

main55317-48141-C0iGYL10201307

BLACK,TRIM1#,2#,4#

main55317-48141-E0iAGL10,GGL15,GYL1#201307

DK. BROWN,TRIM0#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-48100-C0iAGL10,GGL15200812-201203

BLACK,TRIM1#,2#

main55318-48100-E0iAGL10,GGL15201203-201306

DK. BROWN,TRIM0#

main55318-48101-C0iAGL10,GGL15201307

BLACK,TRIM1#,2#,3#,4#

main55318-48101-E0iAGL10,GGL15201307

DK. BROWN,TRIM0#

main55318-48130-C0iGYL1#201203-201306

BLACK,TRIM1#,2#,3#,4#

main55318-48130-E0iGYL1#201203-201306

DK. BROWN,TRIM0#

main55318-48131-C0iGYL10201307

BLACK,TRIM1#,2#,4#

main55318-48131-E0iGYL1#201307

DK. BROWN,TRIM0#

55325BBRACKET, INSTRUMENT PANEL, NO.5

main55325-48040×2iAGL10..RHD;GGL15,GYL15200812-201203

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)

55328PIN, INSTRUMENT PANEL, NO.1

main55328-50160×2iAGL10,GGL15,GYL1#200812-201203

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-48110×5iAGL10,GGL15,GYL1#200812-201203

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-48170iAGL10,GGL15,GYL1#..RHD200812-201203

main55330-48180iAGL10,GGL15,GYL1#..LHD200812-201203

main55330-48190iAGL10,GGL15,GYL1#..RHD201203

main55330-48200iAGL10,GGL15,GYL1#..LHD201203

55346ACLIP, INSTRUMENT PANEL, NO.2

main55345-12060×2iAGL10,GGL15,GYL1#200812-201203

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-48070×2iAGL10,GGL15,GYL1#200812-201203

55394CBOLT, INSTRUMENT PANEL

main55394-48030iAGL10,GGL15,GYL1#200812-201203

NO.1

main55394-48040×2iAGL10,GGL15,GYL1#201203

NO.2

main55394-48050iAGL10,GGL15,GYL1#200812-201203

NO.3

main55394-48060iAGL10,GGL15,GYL1#200812-201203

NO.4

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-48110-C0iAGL10,GGL15..RHD200812-201203

BLACK,TRIM1#,2#

main55401-48110-E0iAGL10,GGL15..RHD200812-201203

DK. BROWN,TRIM0#

main55401-48120-C0iAGL10,GGL15..LHD201203

BLACK,TRIM1#,2#,3#,4#

sub55401-48121

main55401-48120-E0iAGL10,GGL15..LHD200812-201203

DK. BROWN,TRIM0#

sub55401-48121

main55401-48130-C0iGYL1#..RHD201203

BLACK,TRIM1#,2#,3#,4#

main55401-48130-E0iGYL1#..RHD200903-201203

DK. BROWN,TRIM0#

main55401-48140-C0iGYL1#..LHD200903-201203

BLACK,TRIM1#,2#

sub55401-48141

main55401-48140-E0iGYL1#..LHD200903-201203

DK. BROWN,TRIM0#

sub55401-48141

55401FCLIP(FOR SAFETY PAD)

main52161-16010×2iAGL10,GGL15,GYL1#200812-201203

sub52161-0K040

55416ARETAINER, METER HOOD, NO.1

main55416-30140×2iAGL10,GGL15,GYL1#200812-201203

55443GARNISH, INSTRUMENT PANEL, RH

main55443-48070-C0iAGL10,GGL15,GYL15..LHD..EUR200812-201203

PHILIPPINE SPEC,BLACK,TRIM1#,2#

main55443-48070-E0iAGL10,GGL15,GYL15..LHD..EUR200812-201203

TAIWAN SPEC,DK. BROWN,TRIM0#

main55443-48080-C0iAGL10,GGL15,GYL1#..LHD..EUR200812-201203

BLACK,TRIM1#,2#

main55443-48080-E0iAGL10,GGL15,GYL1#..LHD..EUR200812-201203

DK. BROWN,TRIM0#

55444GARNISH, INSTRUMENT PANEL, LH

main55444-48050-C0iGGL15,GYL15..RHD201203

BRUNEI SPEC,BLACK,TRIM1#,2#,3#,4#

main55444-48050-E0iAGL10,GGL15,GYL1#..LHD200812-201203

HONG KONG SPEC,DK. BROWN,TRIM0#

main55444-48060-C0iAGL10,GGL15,GYL1#..RHD201203

BLACK,TRIM1#,2#,3#,4#

main55444-48060-E0iAGL10,GGL15,GYL1#..RHD201203

DK. BROWN,TRIM0#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100×5iAGL10,GGL15,GYL1#201203

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-48050-C0supersedes 55981-48030-C0iAGL10,GGL15,GYL1#..RHD200812-201203

HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2#

main55981-48050-E0supersedes 55981-48030-E0iAGL10,GGL15,GYL1#..RHD200812-201203

HEAD UP DISPLAY-WITH,DK. BROWN,TRIM0#

main55981-48060-C0supersedes 55981-48040-C0iAGL10,GGL15,GYL1#..LHD201203

HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2#,3#,4#

sub55981-48061

main55981-48060-E0supersedes 55981-48040-E0iAGL10,GGL15,GYL1#..LHD200812-201203

HEAD UP DISPLAY-WITH,DK. BROWN,TRIM0#

sub55981-48061

69065CYLINDER SUB-ASSY, AIRBAG CUT OFF SW

main69065-12460iAGL10,GGL15,GYL1#..EUR201209

INDONESIA SPEC

main69065-47040iAGL10,GGL15,GYL1#..EUR201203-201208

INDONESIA SPEC

main69065-53010iGGL15,GYL15..RHD200812-200911

INDONESIA SPEC

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-48050-A0iAGL10,GGL15,GYL1#..RHD200812-201203

IVORY,TRIM0#

main73900-48050-B0iAGL10,GGL15,GYL10..RHD200812-201203

LT.GRAY,TRIM1#

main73900-48050-C0iGYL15..RHD200903-201203

BLACK,TRIM12,2#

main73900-48051-A0iAGL10,GGL15,GYL1#..RHD201203

IVORY,TRIM0#

main73900-48051-C0iAGL10,GGL15,GYL1#..RHD201203

BLACK,TRIM1#,2#,3#,4#

main73900-48060-A0iAGL10,GGL15,GYL1#..LHD200812-201203

IVORY,TRIM0#

main73900-48060-B0iGYL15..LHD200903-201203

LT.GRAY,TRIM10,12

main73900-48060-C0iGYL15..LHD200903-201203

BLACK,TRIM12,2#

main73900-48061-A0iAGL10,GGL15,GYL1#..LHD201203

IVORY,TRIM0#

main73900-48061-C0iAGL10,GGL15,GYL1#..LHD201203

BLACK,TRIM1#,2#,3#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-48060iAGL10,GGL15,GYL1#200812-201203

73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2

main73990-48010-A0iAGL10,GGL15,GYL1#..RHD200812-201203

IVORY,TRIM0#

main73990-48010-B0iAGL10,GGL15,GYL10..RHD200812-201203

LT.GRAY,TRIM1#

main73990-48010-C0iAGL10,GGL15,GYL10..RHD200812-201203

BLACK,TRIM2#

main73990-48011-A0iAGL10,GGL15,GYL1#..RHD201203

IVORY,TRIM0#

main73990-48011-C0iAGL10,GGL15,GYL1#..RHD201203

BLACK,TRIM1#,2#,3#,4#

main73990-48020-A0iAGL10,GGL15,GYL1#..LHD200812-201203

IVORY,TRIM0#

main73990-48020-B0iGYL15..LHD200903-201203

LT.GRAY,TRIM10,12

main73990-48020-C0iGYL15..LHD200903-201203

BLACK,TRIM12,2#

main73990-48021-A0iAGL10,GGL15,GYL1#..LHD201203

IVORY,TRIM0#

main73990-48021-C0iAGL10,GGL15,GYL1#..LHD201203

BLACK,TRIM1#,2#,3#,4#

82140WIRE ASSY, INSTRUMENT PANEL

main82140-48010iAGL10,GGL15,GYL1#200812-201203

8715

9008446027

main90084-46027

9010508120

main90105-08120

9011906951

main90119-06951

9011908C20

main90119-08C20

9015950327

main90159-50327

9017906278

main90179-06278

9017906288

main90179-06288

9018305094

main90183-05094

9046710201

main90467-10201

9046804175

main90468-04175

9163160816

main91631-60816

9167380616

main91673-80616

9415080800

main94150-80800

39 parts on this diagram · 14 diagrams in section
