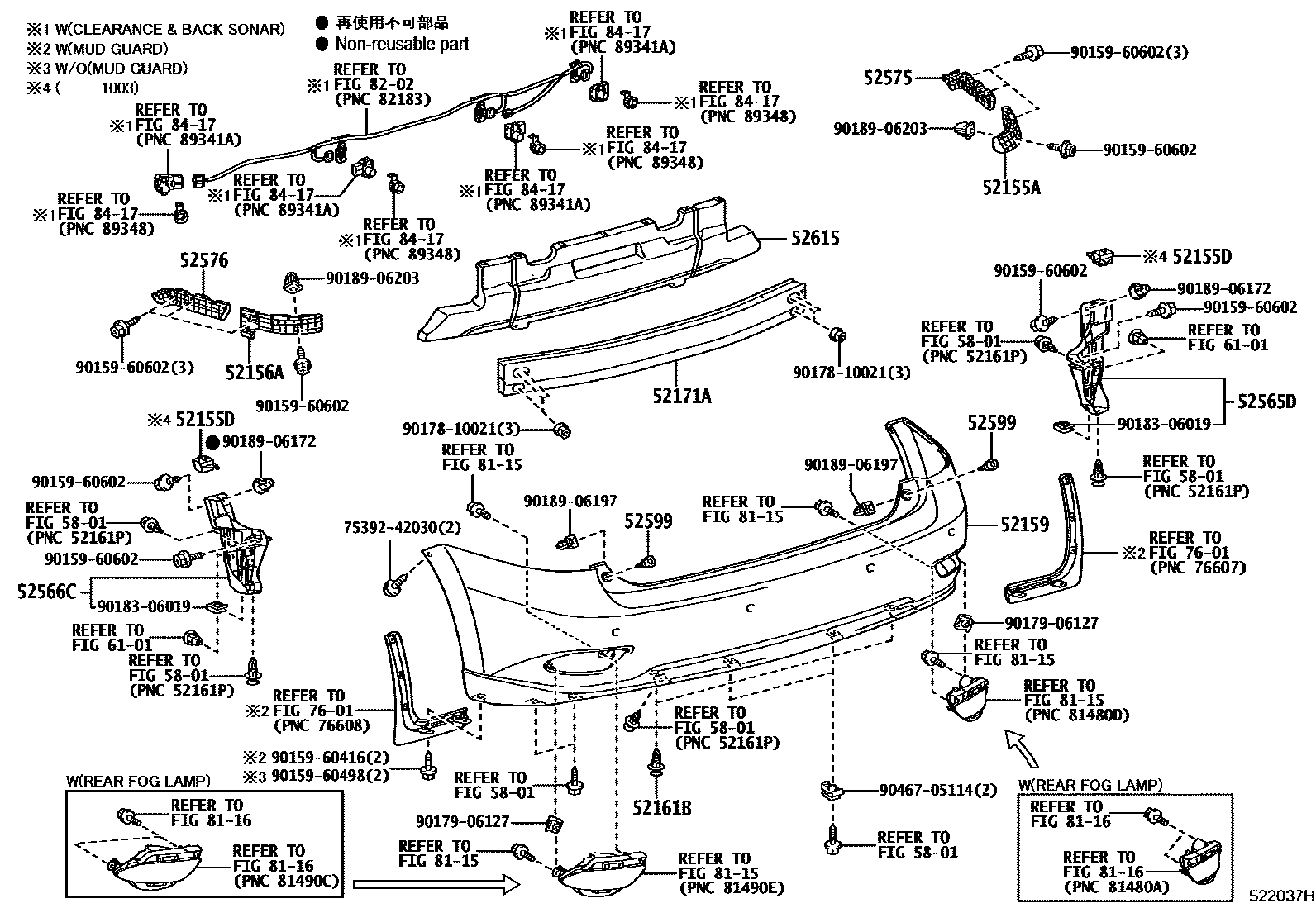

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-48030iGGL15,GYL1#¥3,540200812-200911

sub52155-48031¥3,540

main52155-48031iAGL10,GGL15,GYL1#¥3,540200912-201203

52155DSUPPORT, REAR BUMPER SIDE

main52154-48010iGGL15,GYL1#¥900200812-201003

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-48030iGGL15,GYL1#¥3,540200812-200911

sub52156-48031¥3,540

main52156-48031iAGL10,GGL15,GYL1#¥3,540200912-201203

52159COVER, REAR BUMPER

main52159-48914iGGL15,GYL1#¥64,700200812-200912

PAINT REQ.

sub52159-48919¥65,400

main52159-48919iAGL10,GGL15,GYL1#¥65,400200912-201509

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iAGL10,GGL15,GYL1#¥120200812-201203

sub52161-0K040¥120

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-48180iAGL10,GGL15,GYL1#¥56,400200812-201203

52565DRETAINER, REAR BUMPER, LOWER RH

main52565-48010iAGL10,GGL15,GYL1#¥7,500200812-201110

sub52565-48020¥6,800

main52565-48020iAGL10,GGL15,GYL1#¥6,800201110-201203

52566CRETAINER, REAR BUMPER, LOWER LH

main52566-48010iAGL10,GGL15,GYL1#¥7,500200812-201110

sub52566-48020¥6,800

main52566-48020iAGL10,GGL15,GYL1#¥6,800201110-201203

52575RETAINER, REAR BUMPER SIDE, RH

main52575-48040iAGL10,GGL15,GYL1#¥4,870200812-201203

52576RETAINER, REAR BUMPER SIDE, LH

main52576-48040iAGL10,GGL15,GYL1#¥4,870200812-201203

52599STOPPER, REAR BUMPER, UPPER

main52599-48040iGGL15¥360200812-200902

sub52599-48041¥360

main52599-48041iAGL10,GGL15,GYL1#¥360200903-201203

52615ABSORBER, REAR BUMPER ENERGY

main52615-48130iAGL10,GGL15,GYL1#¥15,900200812-201203

5801

6101

7601

8115

8116

8202

8417

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030¥280

9015960416

main90159-60416¥120

9015960498

main90159-60498¥70

9015960602

main90159-60602¥60

9017810021

main90178-10021¥100

9017906127

main90179-06127¥90

9018306019

main90183-06019¥80

9018906172

main90189-06172¥80

9018906197

main90189-06197¥70

9018906203

main90189-06203¥70

9046705114

main90467-05114¥200

30 parts on this diagram · 1 diagram in section
