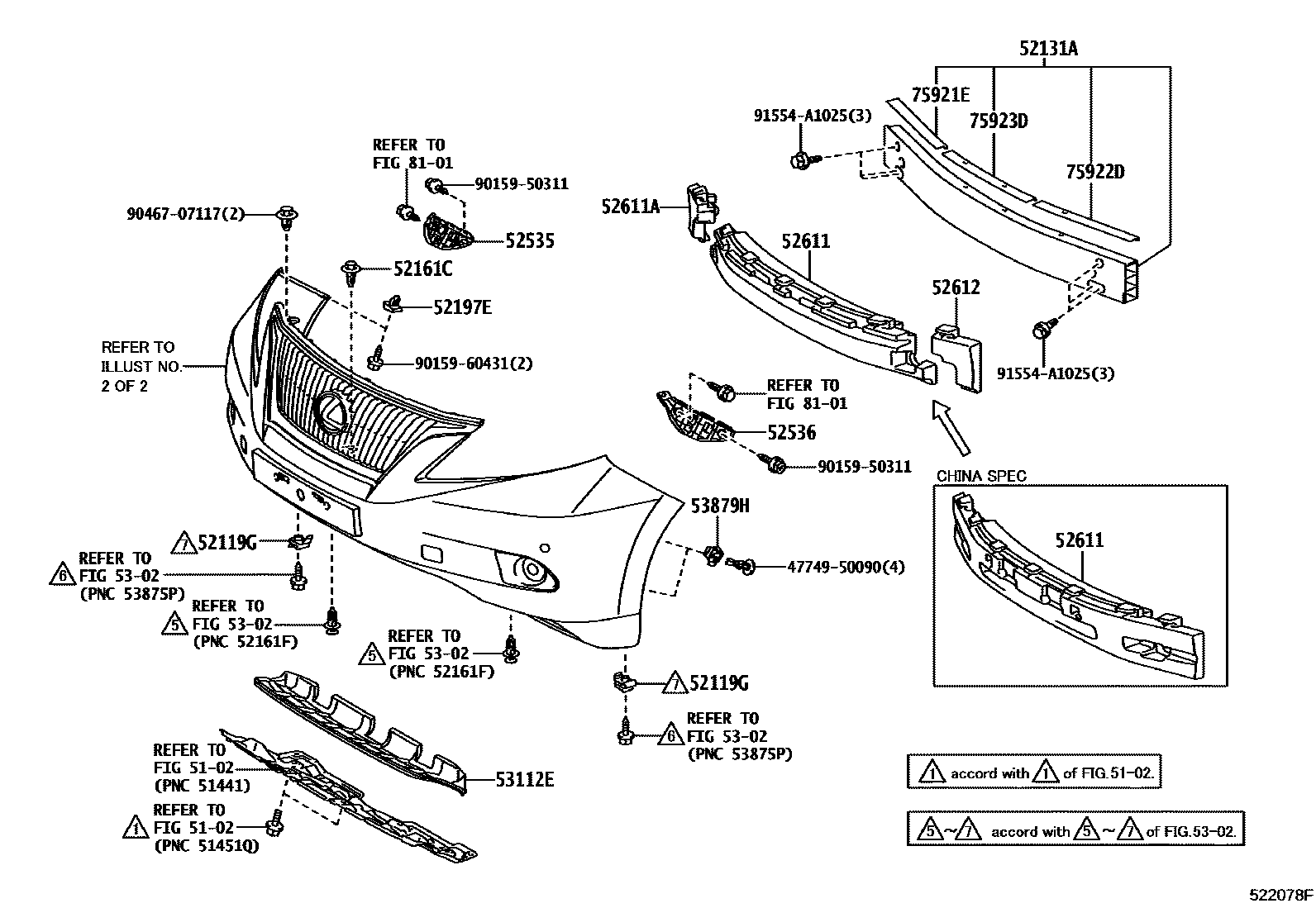

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1F SPORT OR AERO BUMPER(FRONT)0010 1F SPORT OR AERO BUMPER(FRONT)0011 1 0012 1

5102

52119GCLIP, NO.1

main90467-05114×2iAGL10,GGL15,GYL1#201203-201509

52131AREINFORCEMENT, FRONT BUMPER

main52131-48110iAGL10,GGL15,GYL1#200812-201203

main52131-48111iAGL10,GGL15,GYL1#201203-201509

52161CPIECE, FRONT BUMPER

main52161-16010iAGL10,GGL15,GYL1#200812-201203

sub52161-0K040

52197EBRACKET, FRONT BUMPER SEAL

main52197-30040×2iAGL10,GGL15,GYL1#200812-201203

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-48010iGGL15,GYL15200812-200908

main52535-48011iGGL15,GYL15200909-200910

main52535-48012iAGL10,GGL15,GYL1#200911-201112

main52535-48013iAGL10,GGL15,GYL1#201201-201203

main52535-48030iAGL10,GGL15,GYL1#201203

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-48010iGGL15,GYL15200812-200908

main52536-48011iGGL15,GYL15200909-200910

main52536-48012iAGL10,GGL15,GYL1#200911-201112

main52536-48013iAGL10,GGL15,GYL1#201201-201203

main52536-48020iAGL10,GGL15,GYL1#201203

52611ABSORBER, FRONT BUMPER ENERGY

main52611-48080iAGL10,GGL15,GYL1#200812-201203

main52611-48100iAGL10,GGL15,GYL15..LHD..EUR200812-201203

CHINA(EXCEPT BEIJING) SPEC

main52611-48140iAGL10,GGL15,GYL15..LHD..EUR201203

BEIJING SPEC&F SPORT

main52611-48150supersedes 52611-48160iGGL15,GYL15201203

AERO BUMPER(FRONT)

52611AABSORBER, FRONT BUMPER ENERGY, RH

main52613-48010iAGL10,GGL15,GYL1#200812-201203

main52613-48020iAGL10,GGL15,GYL1#201203

52612ABSORBER, FRONT BUMPER ENERGY, LH

main52612-48010iAGL10,GGL15,GYL1#200812-201203

main52612-48020iAGL10,GGL15,GYL1#201203

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-48100iAGL10,GGL15,GYL1#200812-201203

NO PAINT REQ.

main53112-48130supersedes 53112-48120iAGL10,GYL1#..LHD..EUR201203

NO PAINT REQ.,RUSSIA SPEC&AERO BUMPER(FRONT)&HEADLAMP-LED & AFS

main53112-48140iGGL15,GYL15..LHD..EUR201203

NO PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH

53879HRETAINER, FRONT FENDER LINER

main53879-30040×4iAGL10,GGL15,GYL1#201203-201509

main53879-50020×4iAGL10,GGL15,GYL1#200812-201203

75921ETAPE, BLACK OUT, NO.1 RH

main75921-48040iGGL15,GYL15200812-200904

main75921-48041iAGL10,GGL15,GYL1#200905-201203

75922DTAPE, BLACK OUT, NO.1 LH

main75922-48040iGGL15,GYL15200812-200904

main75922-48041iAGL10,GGL15,GYL1#200905-201203

75923DTAPE, BLACK OUT, NO.2 RH

main75923-48040iGGL15,GYL15200812-200905

8101

4774950090CLIP, PIN HOLD

main47749-50090

9015950311

main90159-50311

9015960431

main90159-60431

9046707117

main90467-07117

91554A1025

main91554-A1025

22 parts on this diagram · 12 diagrams in section
