BRAKE PEDAL & BRACKET

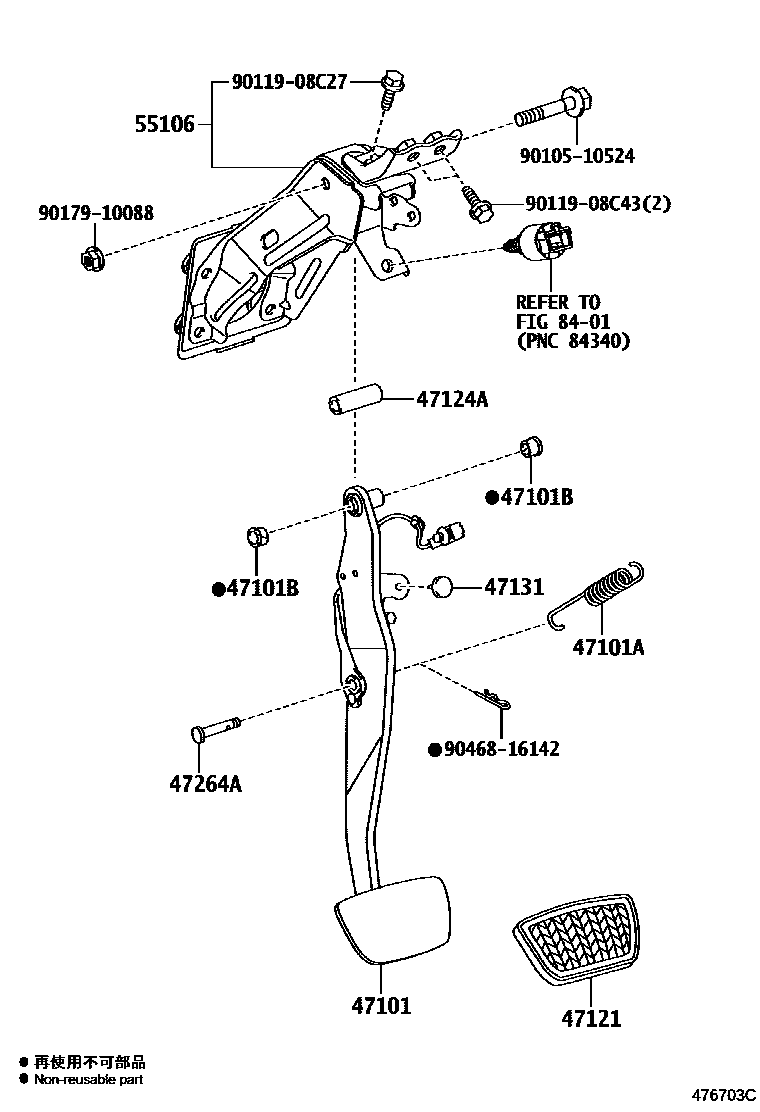

Parts diagram

47101PEDAL SUB-ASSY, BRAKE

main47101-48170i200903-201307

main47101-48171i201307

main47101-48190i200903-201307

main47101-48191i201307

main47106-48060i200812-201203

main47106-48080i200812-201203

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011i200903-201203

main90507-15004i200812-201203

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015i200812-201203

47121PAD, BRAKE PEDAL

main47121-50020i200812-201203

main47121-53010i201203

F SPORT&ACCELERATOR PEDAL-ALUMINUM TYPE&KICK DOWN SWITCH SYSTEM-WITHOUT

main47121-53010i201203

F SPORT&ACCELERATOR PEDAL-ALUMINUM TYPE

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003i200812-201203

main90387-10105i200903-201203

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036i200812-201203

47264APIN(FOR PUSH ROD)

main47148-48010i201209

main90249-06180i200812-201209

main90249-08051i201307

main90249-10064i200903-201307

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-48170i200812-201402

main55106-48171i201403

main55106-48180i200903-201402

main55106-48181i201403

main55106-48200i200903-201402

main55106-48201i201403

main55106-48210i200812-201402

main55106-48211i201403

8401

9010510524

main90105-10524

9011908C27

main90119-08C27

9011908C43

main90119-08C43

9017910088

main90179-10088

9046816142

main90468-16142

14 parts on this diagram · 4 diagrams in section
