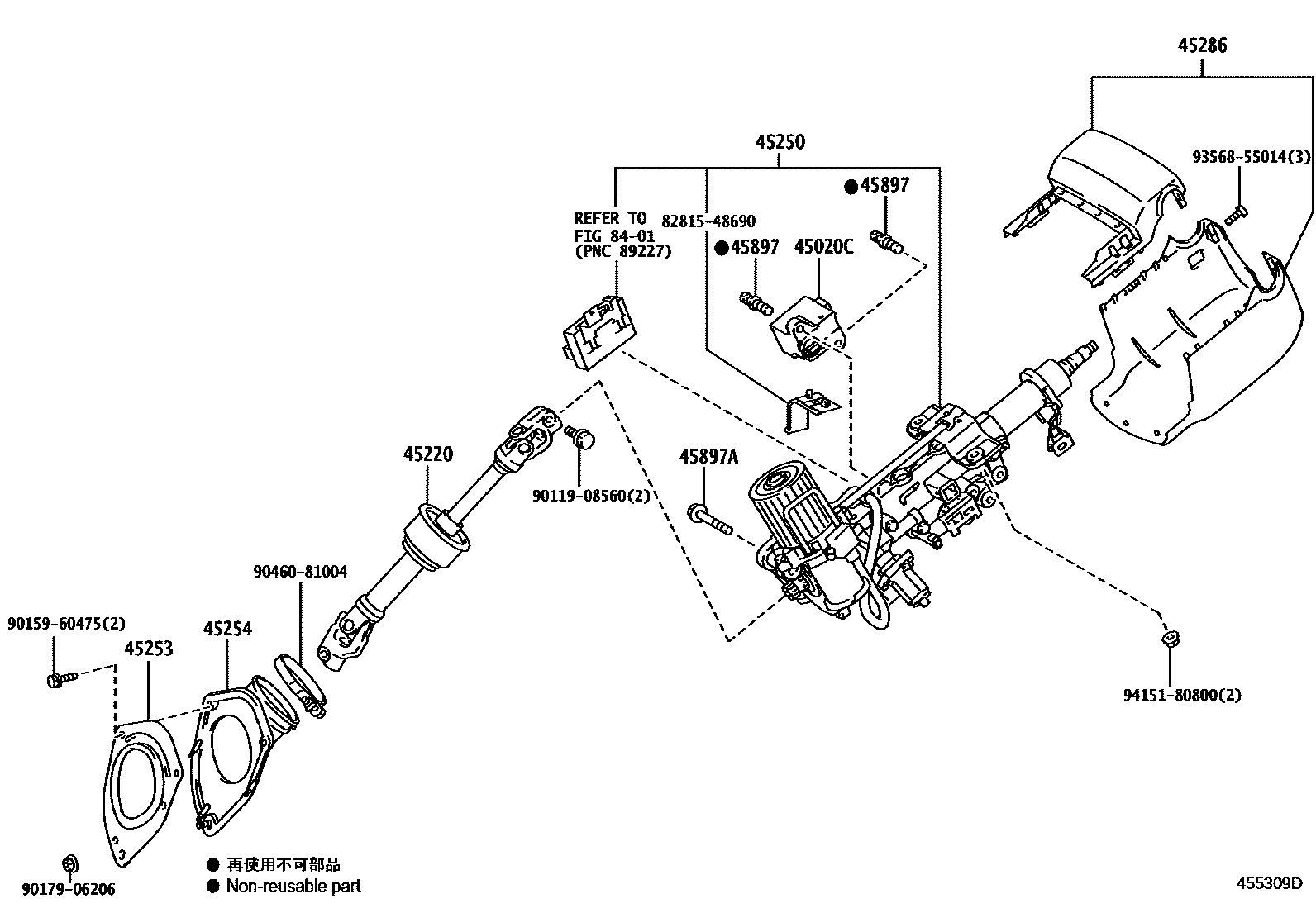

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
BEIJING SPEC
CHINA(EXCEPT BEIJING) SPEC
45250COLUMN ASSY, STEERING
CHINA(EXCEPT BEIJING) SPEC,(L)
sub45250-48241
sub45250-48231
sub45250-48232
CHINA(EXCEPT BEIJING) SPEC,(J)
sub45250-48241
CHINA(EXCEPT BEIJING) SPEC,(J)
BEIJING SPEC,(J)
sub45250-48251
sub45250-48252
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45286COVER, STEERING COLUMN
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
DK. BROWN,TRIM0#
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
8401
8281548690COVER, WIRING HARNESS PROTECTOR
main82815-48690
9011908560
main90119-08560
9015960475
main90159-60475
9017906206
main90179-06206
9046081004
main90460-81004
9356855014
main93568-55014
9415180800
main94151-80800
16 parts on this diagram · 2 diagrams in section
