FRONT AXLE HUB

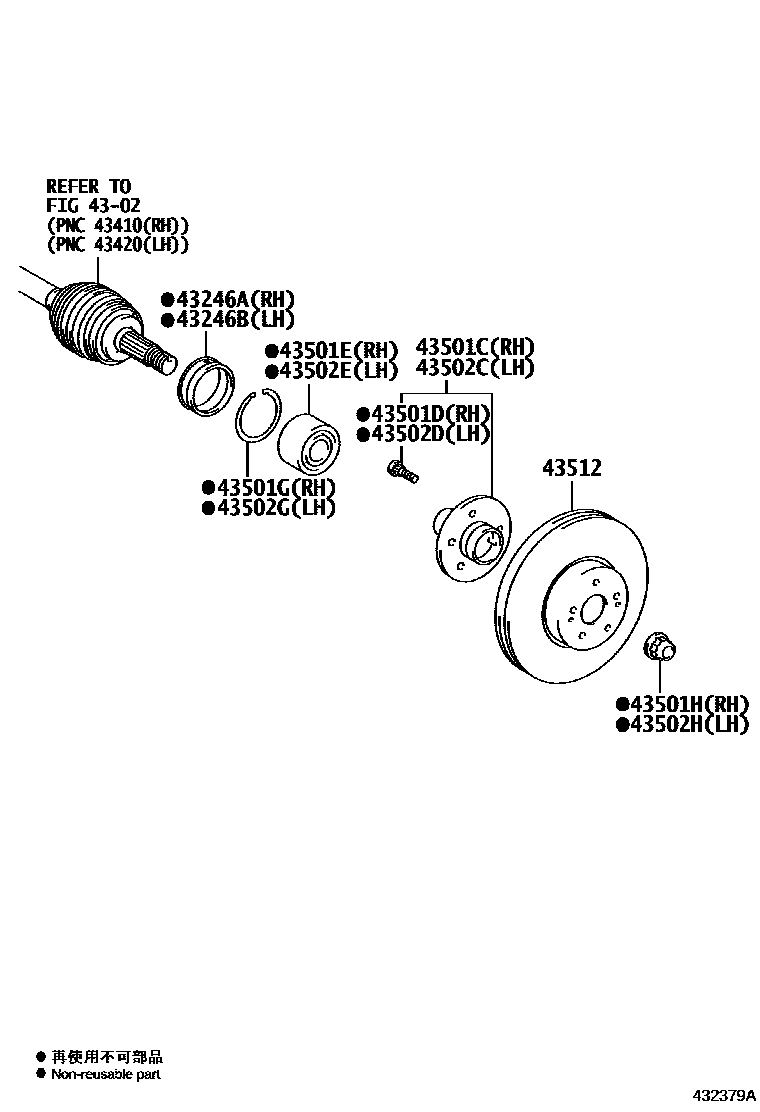

Parts diagram
4302
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
main43246-48010i200812-201405
sub43246-48011
main43246-48011i201406
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
main43246-48010i200812-201405
sub43246-48011
main43246-48011i201406
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-28100i200812-201203
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02049i200812-201203
43501EBEARING (FOR FRONT AXLE HUB RH)
main90369-45006i200812-201203
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90520-79002i200812-201203
43501HNUT (FOR FRONT AXLE SHAFT RH)
main90177-22001i200812-201203
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-28100i200812-201203
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049i200812-201203
43502EBEARING (FOR FRONT AXLE HUB LH)
main90369-45006i200812-201203
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90520-79002i200812-201203
43502HNUT (FOR FRONT AXLE SHAFT LH)
main90177-22001i200812-201203
43512DISC, FRONT
main43512-48110i201008-201203
MALAYSIA SPEC
main43512-48110i201203
SINGAPORE SPEC
main43512-48110i201008-201203
INDONESIA SPEC
main43512-48110i201008-201203
CHILE SPEC
main43512-48110i201203
LATIN AMERICA SPEC W/O(CHILE)
main43512-48110i201008-201203
PHILIPPINE SPEC
main43512-48110i201008-201203
SOUTH AFRICA SPEC
main43512-48110i201008-201203
BRUNEI SPEC
main43512-48110i201203
BRAZIL SPEC
main43512-48110i201203
TAIWAN SPEC
main43512-48110i201203
CHINA(EXCEPT BEIJING) SPEC
main43512-48110i201203
BEIJING SPEC
main43512-48110i201203
AUSTRALIA SPEC
main43512-48110i201203
NEW ZEALAND SPEC
main43512-48110i201203
THAILAND SPEC
main43512-48110i201203
HONG KONG SPEC
main43512-48120i200812-201203
SUSPENSION-AIR SUSPENTION
main43512-48120i201203
F SPORT

14 parts on this diagram · 1 diagram in section
