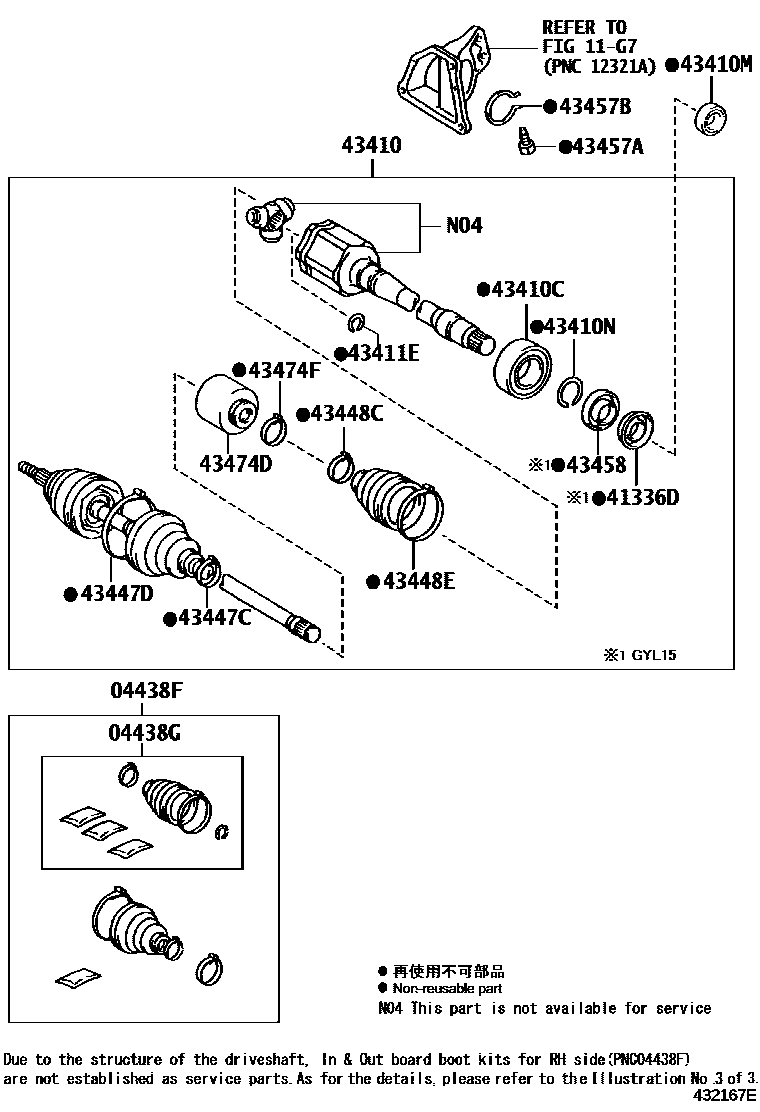

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1LH 0006 1LH 0007 1LH 0008 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0W110iGYL1#¥10,800201203-201509

main04427-48170iAGL10¥10,800201008-201411

sub04427-48171¥10,800

main04427-48171iAGL10¥10,800201411-201509

(J)

sub04427-48172¥10,800

main04428-0E060iGGL15,GYL1#¥10,800200812-201003

main04428-0W060iGGL15¥10,800201004-201509

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0R050iAGL10201301-201509

(L)

main04437-48140iAGL10¥5,500201203-201509

(J)

main04437-48140iAGL10¥5,500201008-201203

main04438-08130iGGL15¥5,500200812-201509

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iGYL1#¥890200903-201203

main41336-12020iAGL10¥330201008-201203

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0E040iGGL15¥85,400200812-200909

sub43410-0E041¥85,400

main43410-0E041iGGL15¥85,400200910-201203

main43410-0W250iGYL1#¥85,400200903-201203

main43410-0W340iGGL15¥82,800201203

main43410-0W350iGYL1#¥85,400201203

main43410-48110iAGL10¥85,400201008-201301

main43410-48110iAGL10¥85,400201301

(J)

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133iGYL1#¥2,750200903-201203

main90363-36006iGGL15¥2,470200812-200902

main90363-41003iAGL10¥2,750201008-201203

main90363-41003iAGL10¥2,750201203

(J)

main90363-A0007iGGL15200903-201203

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40029iAGL10¥400200903-201302

sub90311-40038¥400

main90311-40038iAGL10¥400201212-201509

main90311-40039iGYL1#¥400201302-201509

main90316-34001iGGL15¥450200812-201509

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iGYL1#¥140200903-201203

main90080-52054iGGL15¥120200812-201203

main90520-38015iAGL10¥100201008-201203

main90520-38015iAGL10¥100201203

(J)

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-08040iGGL15,GYL1#¥60200812-201203

main43425-28010iAGL10¥40201008-201203

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iGGL15,GYL1#¥190200812-201203

main42345-48030iAGL10¥410201008-201203

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06250iGGL15,GYL1#¥800200812-201203

main42345-44020iAGL10¥570201008-201203

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-08070iGGL15,GYL1#¥360200812-201203

main42345-42010iAGL10¥200201008-201203

TYPE A:REFER ILLUST.

main90949-01559iAGL10¥320201008-201203

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06240iGGL15,GYL1#¥430200812-201203

main42345-12160iAGL10¥300201008-201203

43457BRACKET, DRIVE SHAFT BEARING

main43457-48010iAGL10¥4,270201008-201203

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iAGL10,GYL1#¥200200903-201203

*10-1.25PX19.8-8.3

main90901-19060iGGL15¥130200812-201203

*10-1.25PX28.5-14.8

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iGGL15¥140200812-201203

main90521-78002iAGL10,GYL1#¥160200903-201203

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iGYL1#¥650200903-201508

main43458-12010iAGL10¥910201008-201509

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0W030iGGL15¥3,940200812-201203

main43474-0W080iGYL1#¥3,940201203

main43474-48020iAGL10¥3,940201203-201410

(J)

sub43474-48080¥2,480

main43474-48020iAGL10¥3,940201008-201203

sub43474-48080¥2,480

main43474-48080iAGL10¥2,480201411

(J)

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06100iGGL15¥200200812-201203

main42345-0W070iGYL1#¥310201203

main42345-14010iAGL10¥700201008-201203

main42345-14010iAGL10¥700201203-201411

(J)

18 parts on this diagram · 7 diagrams in section
