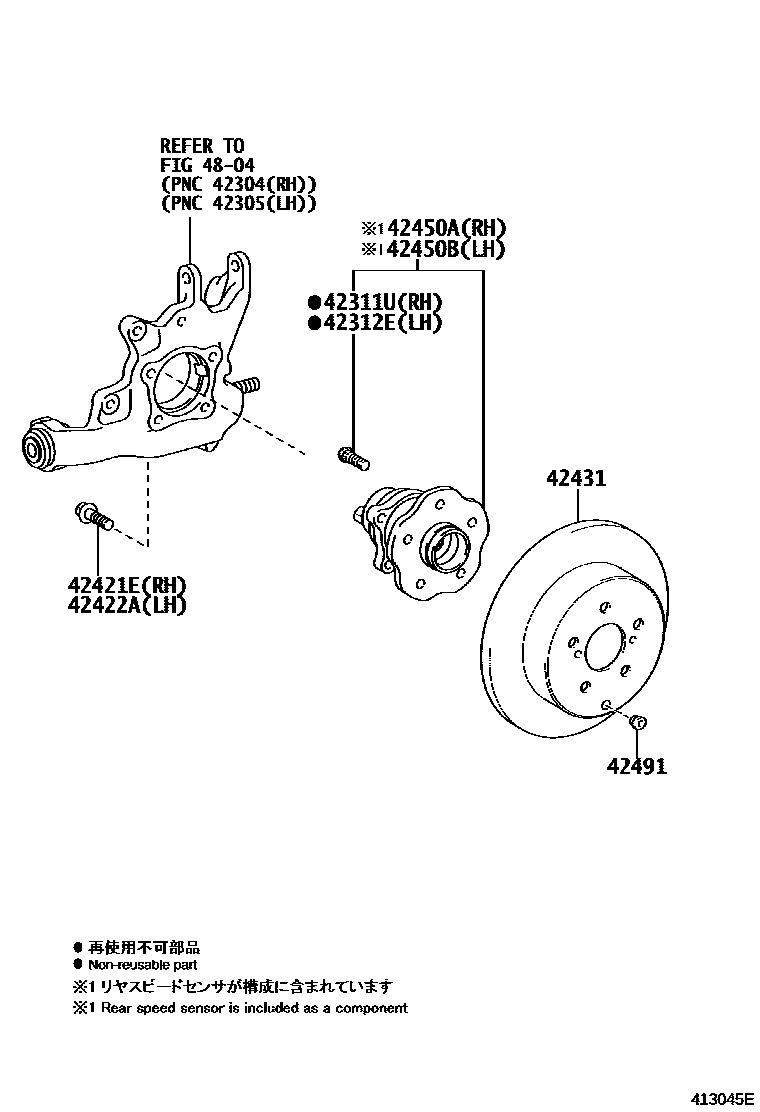

REAR AXLE SHAFT & HUB
42311UBOLT, HUB(FOR REAR AXLE RH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42421EBOLT (FOR REAR AXLE BEARING CASE RH)
42422ABOLT (FOR REAR AXLE BEARING CASE LH)
42431DISC, REAR
BRAZIL SPEC
TAIWAN SPEC
PHILIPPINE SPEC
CHINA(EXCEPT BEIJING) SPEC
BEIJING SPEC
AUSTRALIA SPEC
NEW ZEALAND SPEC
SOUTH AFRICA SPEC
THAILAND SPEC
HONG KONG SPEC
BRUNEI SPEC
MALAYSIA SPEC
SINGAPORE SPEC
INDONESIA SPEC
CHILE SPEC
LATIN AMERICA SPEC W/O(CHILE)
42450AHUB & BEARING ASSY, REAR AXLE, RH
42450BHUB & BEARING ASSY, REAR AXLE, LH
42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
4804
9 parts on this diagram · 4 diagrams in section
