OIL COOLER & TUBE (HEV OR BEV OR FCEV)

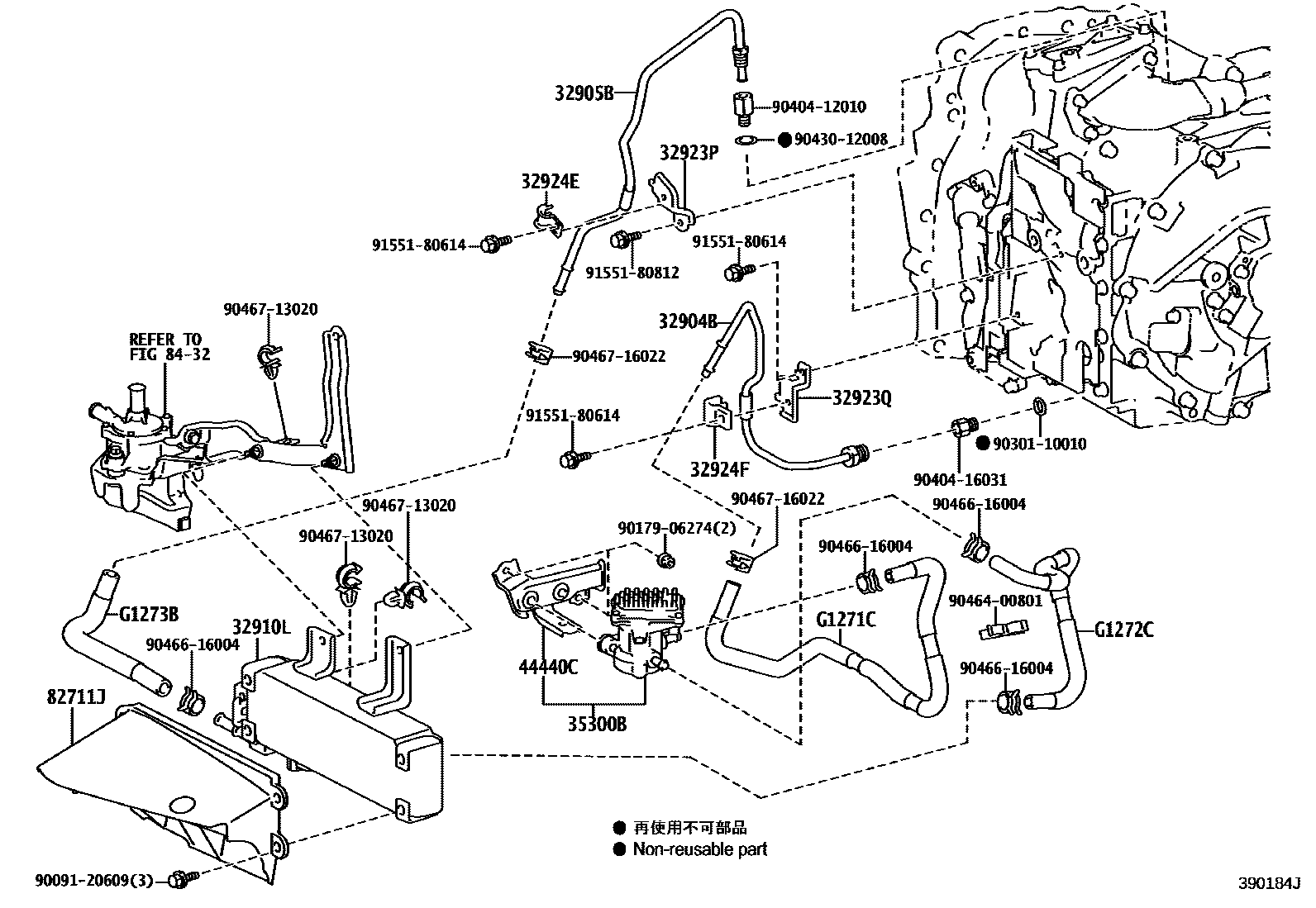

Parts diagram

32904BTUBE SUB-ASSY, OIL COOLER INLET

main32904-48160i¥1,960200903-201509

32905BTUBE SUB-ASSY, OIL COOLER OUTLET

main32905-48191i¥3,410200903-201203

32910LCOOLER ASSY, OIL

main32910-48100i¥56,300200903-201203

main32910-48130i¥56,300201203-201509

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-48020i¥610200903-201203

32923QCLAMP, OIL COOLER TUBE

main32923-48030i¥590200903-201509

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-48010i¥200200903-201203

32924FCLAMP, OIL COOLER TUBE, NO.2

main32924-48010i¥200200903-201509

35300BPUMP ASSY, OIL W/MOTOR

main35300-48011i¥65,200200903-201203

44440CBRACKET ASSY, PUMP

main44440-48010i¥4,190200903-201203

82711JDUCT, AIR

main32917-48040i¥3,700201203-201509

main87211-48160i200903-201203

8432

G1271CHOSE, MOTOR COOLING, NO.1

mainG127148020i200903-201203

G1272CHOSE, MOTOR COOLING, NO.2

mainG127248020i200903-201203

mainG127248040i201203

G1273BHOSE, MOTOR COOLING, NO.3

mainG127348020i200903-201509

9009120609

main90091-20609

9017906274

main90179-06274¥70

9030110010

main90301-10010¥240

9040412010

main90404-12010¥340

9040416031

main90404-16031¥340

9043012008

main90430-12008¥90

9046400801

main90464-00801¥110

9046616004

main90466-16004¥180

9046713020

main90467-13020¥240

9046716022

main90467-16022¥300

9155180614

main91551-80614¥60

9155180812

main91551-80812¥80

26 parts on this diagram · 2 diagrams in section
