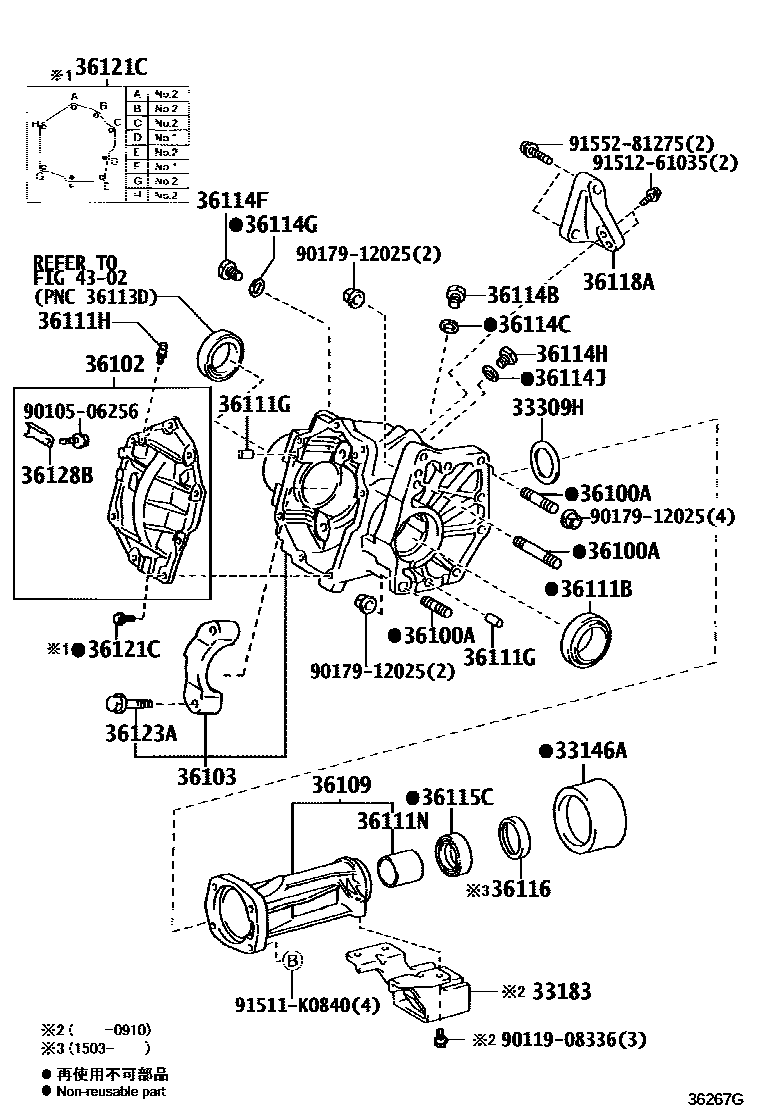

TRANSFER CASE & EXTENSION HOUSING
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33183DAMPER, TRANSFER DYNAMIC
33309HWASHER, TRANSFER OUTPUT SHAFT
T=2.10,MARK AA
T=2.12,MARK AC
T=2.14,MARK BB
T=2.16,MARK CA
T=2.18,MARK CC
T=2.20,MARK DB
T=2.22,MARK EA
T=2.24,MARK EC
T=2.26,MARK FB
T=2.28,MARK GA
T=2.30,MARK GC
T=2.32,MARK HB
T=2.34,MARK JA
T=2.36,MARK JC
T=2.38,MARK KB
T=2.40,MARK LA
T=2.42,MARK LC
T=2.44,MARK MB
T=2.46,MARK NA
T=2.48,MARK NC
T=2.50,MARK PB
T=2.52,MARK QA
T=2.54,MARK QC
T=2.00,MARK ZA
T=2.02,MARK ZB
T=2.04,MARK ZC
T=2.06,MARK ZD
T=2.08,MARK ZE
T=2.56,MARK RA
T=2.58,MARK RB
T=2.60,MARK RC
T=2.62,MARK SA
T=2.64,MARK SB
T=2.66,MARK SC
T=2.68,MARK TA
T=2.70,MARK TB
T=2.72,MARK TC
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
S=30 & 22,L=64
S=22 & 22,L=73
S=22 & 22,L=53
36102COVER SUB-ASSY, TRANSFER CASE
36103CASE SUB-ASSY, TRANSFER
sub36103-48011
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=16,OD=8
L=20,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111NBUSH (FOR TRANSFER CASE)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
sub90341-18006
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36114JGASKET, NO.2 (FOR TRANSFER CASE)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36116RETAINER, TRANSFER EXTENSION HOUSING DUST SEAL
36118APLATE, TRANSFER STIFFENER, RH
36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)
NO.1
NO.2
36123ABOLT, DIFFERENTIAL BEARING CAP
36128BDEFLECTOR, BREATHER OIL
4302
9010506256
main90105-06256
9011908336
main90119-08336
9017912025
main90179-12025
91511K0840
main91511-K0840
9151261035
main91512-61035
9155281275
main91552-81275
30 parts on this diagram · 4 diagrams in section
