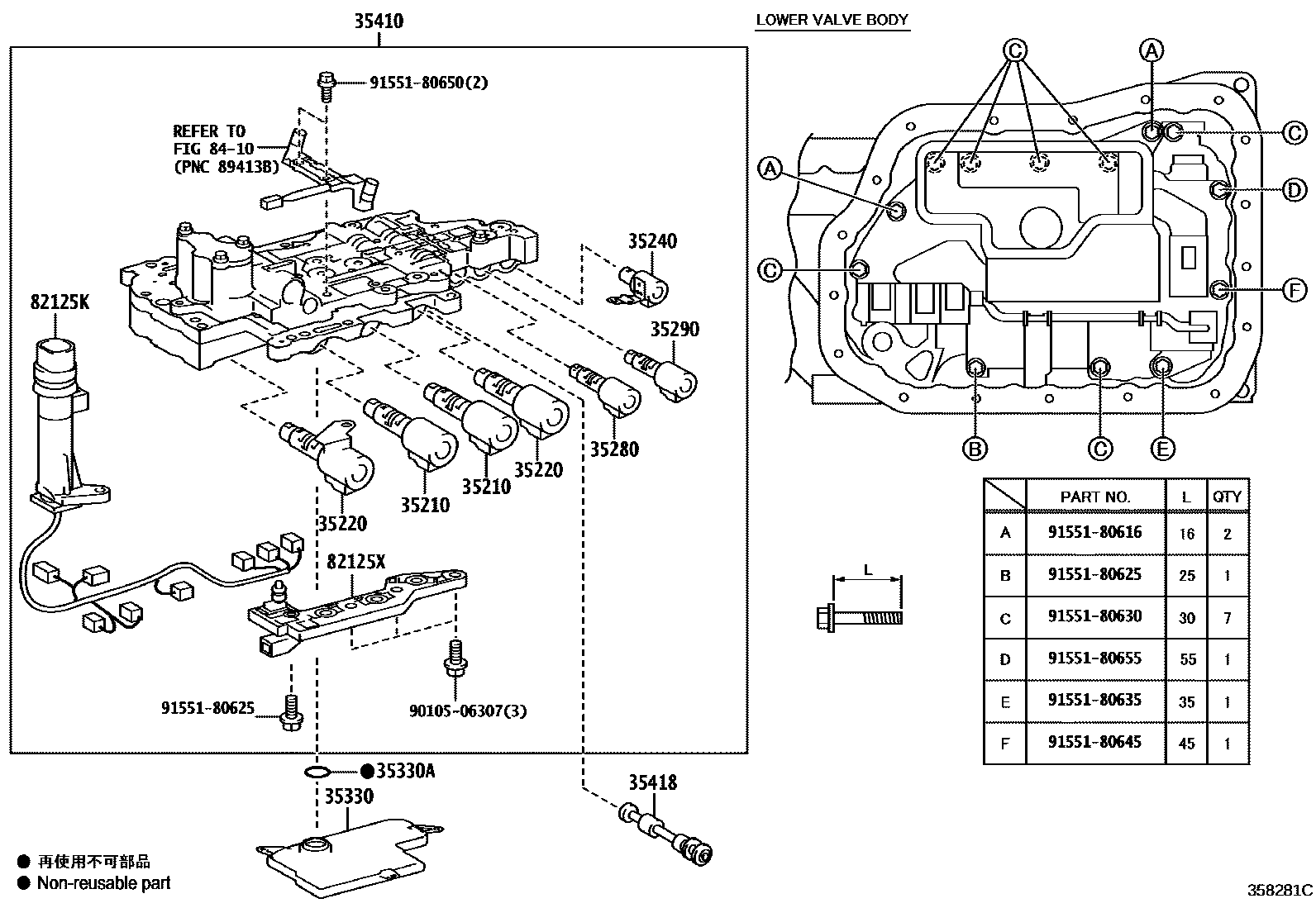

VALVE BODY & OIL STRAINER (ATM)

0001 1U660F 0002 1U760E 0003 1U660F,U760E

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030iGGL15200812-201509

main35210-73010iAGL10201008-201409

sub35210-33030

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33040iGGL15200812-201203

main35220-48020iAGL10201410

main35220-73010iAGL10201008-201409

sub35220-48020

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-73010iAGL10,GGL15200812-201203

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-33020iAGL10201106-201203

main35280-52040iAGL10200812-201203

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iAGL10,GGL15200812-201203

35330STRAINER ASSY, VALVE BODY OIL

main35330-33050iGGL15200812-201308

sub35330-48020

main35330-48020iGGL15201308

main35330-73010iAGL10201008-201203

35330ARING, O (FOR OIL STRAINER)

main90301-27010iAGL10,GGL15200812-201108

main90301-27015iAGL10,GGL15201108-201203

35410BODY ASSY, TRANSMISSION VALVE

main35410-33171iGGL15200812-201108

main35410-33210iAGL10201008-201106

sub35410-33260

main35410-33240iGGL15201108-201203

main35410-33260iAGL10201106-201203

35418VALVE, MANUAL

main35418-73010iAGL10,GGL15200812-201203

82125KWIRE, TRANSMISSION

main82125-33100iGGL15200812-201108

main82125-33160iGGL15201108-201203

82125XWIRE, TRANSMISSION, WITH TEMPERATURE SENSOR

main82125-33090iGGL15200812-201108

sub82125-33091

main82125-33150iGGL15201108-201509

sub82125-33151

main82125-73010iAGL10201008-201509

sub82125-73011

8410

9010506307

main90105-06307

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

9155180635

main91551-80635

9155180645

main91551-80645

9155180650

main91551-80650

9155180655

main91551-80655

20 parts on this diagram · 3 diagrams in section
