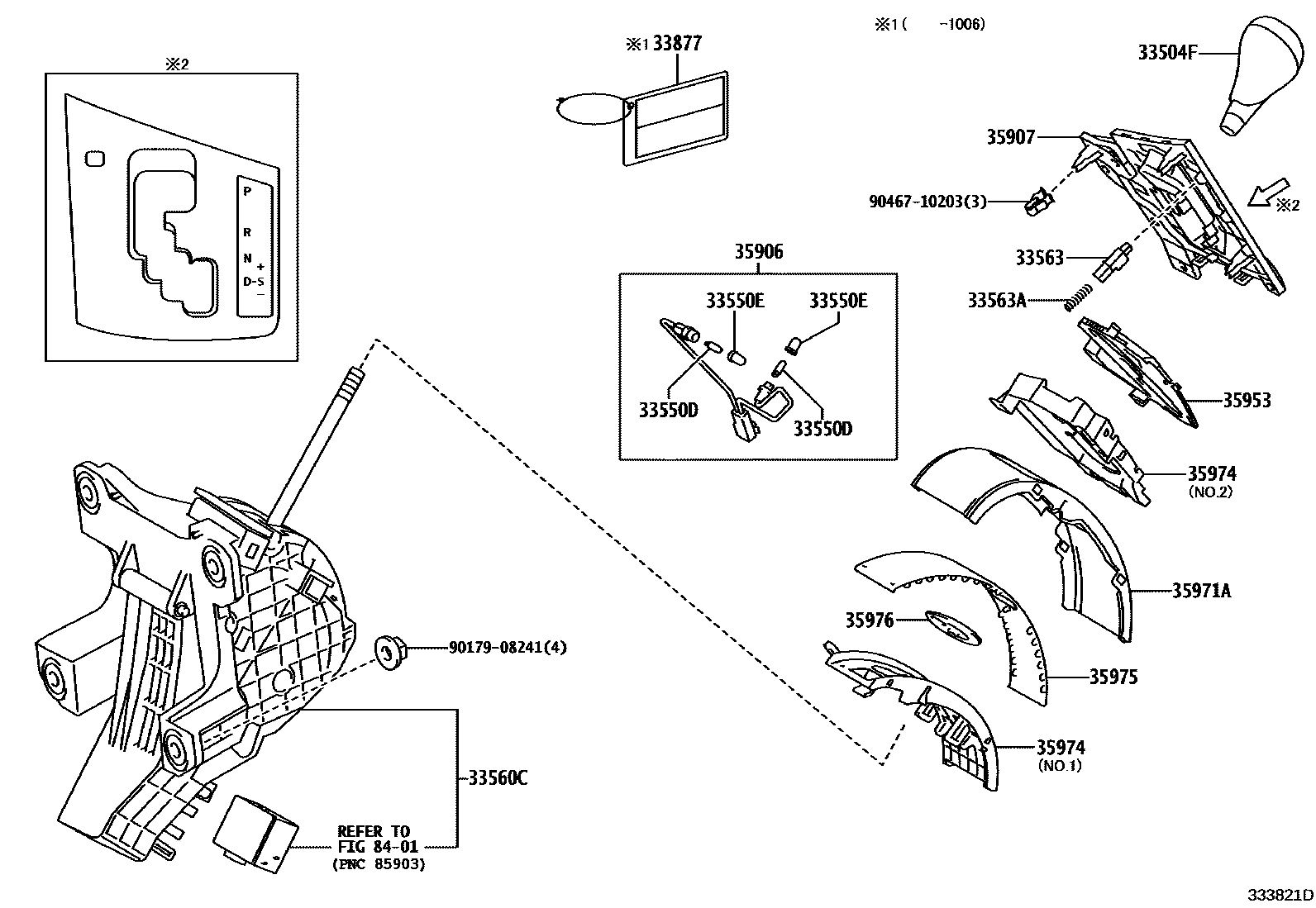

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
33550DBULB, POSITION INDICATOR LAMP
12V 2W
33550ECAP, POSITION INDICATOR LAMP
33560CLEVER ASSY, SHIFT, LOWER
33563BUTTON, SHIFT LOCK RELEASE
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#,4#
DK. BROWN,TRIM0#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#,4#
DK. BROWN,TRIM0#
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33877LABEL, SHIFT LOCK INFORMATION, NO.1
35906WIRE SUB-ASSY, INDICATOR LAMP
35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#,4#
DK. BROWN,TRIM0#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#,4#
DK. BROWN,TRIM0#
35953GUIDE, POSITION INDICATOR LIGHT
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
NO.1
NO.1
NO.2
NO.2
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401
9017908241
main90179-08241
9046710203
main90467-10203
17 parts on this diagram · 8 diagrams in section
