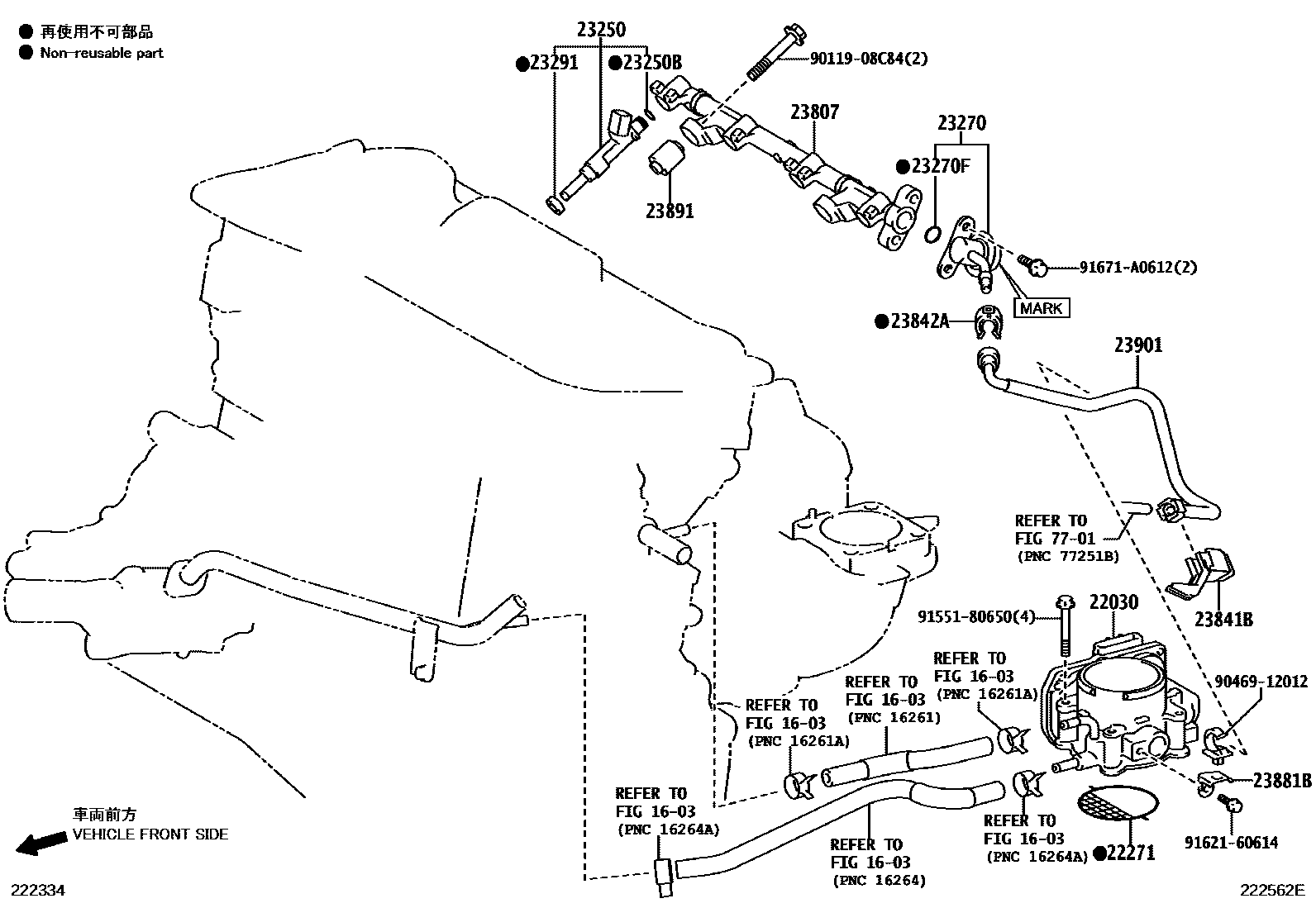

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P050i2GR#..GGL15,GYL1#201203

(L)

main22030-31030i2GR#..GGL15,GYL1#200812-201203

main22030-36010i1ARFE..AGL10201008-201203

22271GASKET, THROTTLE BODY

main22271-31040i2GR#..GGL15,GYL1#201203

main22271-36010i1ARFE..AGL10201008-201203

23250INJECTOR ASSY, FUEL

main23209-31090×6i2GR#..GGL15,GYL1#201203

main23209-39175×4i1ARFE..AGL10201008-201203

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i2GR#..GGL15,GYL1#200812-201203

main90301-07037×4i1ARFE..AGL10201008-201203

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-36010i1ARFE..AGL10201008-201109

MARK 23270-36010

main23270-36031i1ARFE..AGL10201109-201203

MARK 23270-36031

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i1ARFE..AGL10201008-201203

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFE..GGL15200812-201203

main23291-28020×4i2GRFXE..GYL1#201203

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-36010i1ARFE..AGL10201203-201412

main23814-36040i1ARFE..AGL10201412

main23870-31010i2GR#..GGL15,GYL1#201203

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2GR#..GGL15,GYL1#200812-201203

main23841-31070i1ARFE..AGL10201008-201203

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i1ARFE..AGL10201008-201203

main23842-31040i2GR#..GGL15,GYL1#201203

23881BBRACKET, FUEL HOSE

main23881-36010i1ARFE..AGL10201008-201203

23891SPACER, FUEL DELIVERY

main23891-36010×2i1ARFE..AGL10201412

main23891-37010×2i1ARFE..AGL10201008-201203

23901TUBE SUB-ASSY, FUEL

main23901-31200i2GRFE..GGL15200812-201203

main23901-31210i2GRFXE..GYL1#201203

main23901-31240i1ARFE..AGL10201008-201203

7701

9011908C84

main90119-08C84

9046912012

main90469-12012

9155180650

main91551-80650

9162160614

main91621-60614

91671A0612

main91671-A0612

20 parts on this diagram · 3 diagrams in section
