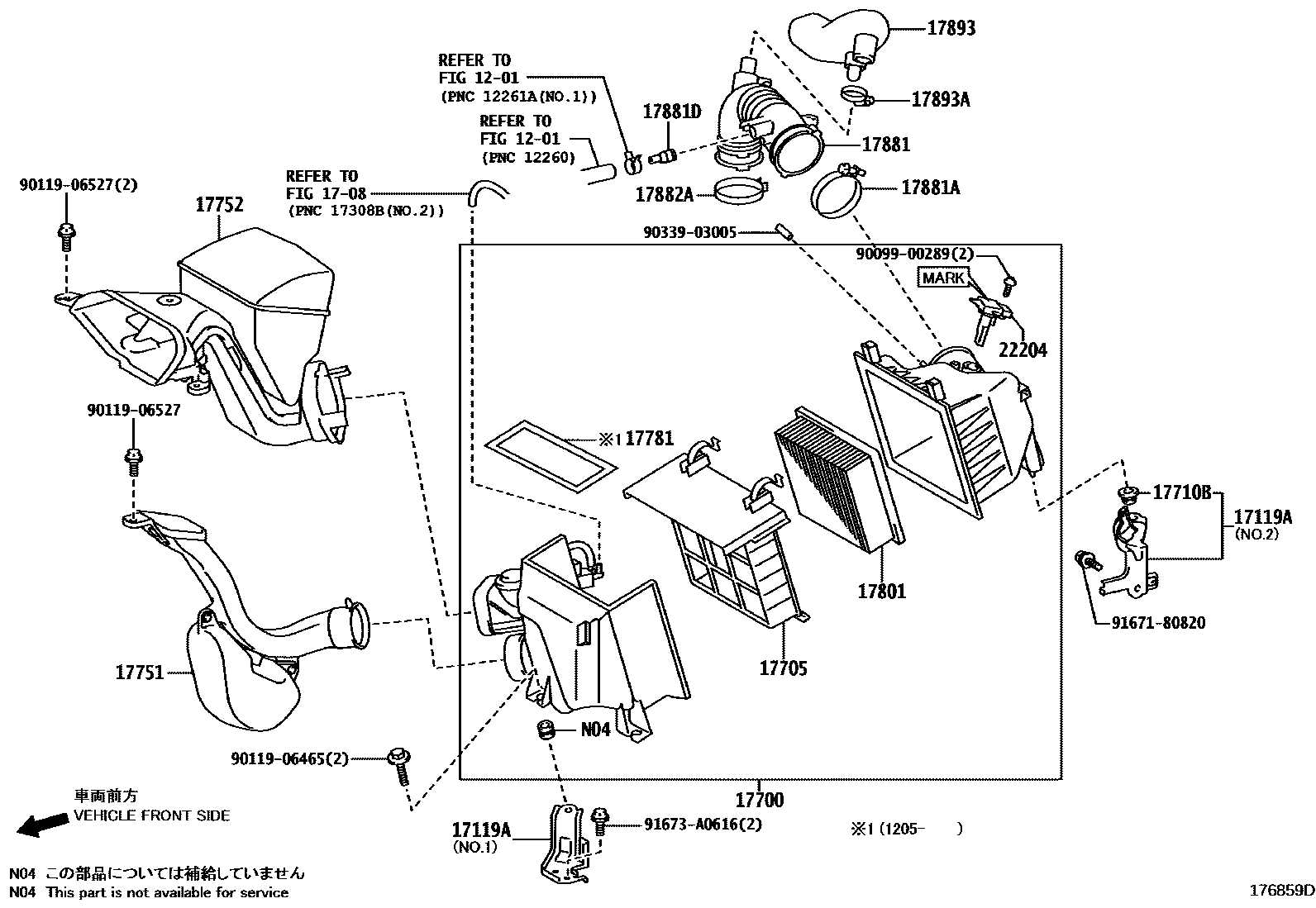

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

1201

1708

17119ABRACKET, AIR CLEANER

main17119-31080i1ARFE..AGL10200812-201203

NO.1

main17119-31090i2GRFE..GGL15200812-201203

NO.2

17700CLEANER ASSY, AIR

main17700-31780i2GRFE..GGL15200812-201005

sub17700-31781

sub17308-31060

sub17308-31070

main17700-31781i2GRFE..GGL15201005-201103

sub17700-31782

main17700-31782i1ARFE..AGL10201104-201106

sub17700-31783

main17700-31783i2GRFE..GGL15201107-201203

main17700-31800i2GRFXE..GYL1#200903-201103

sub17700-31801

main17700-31801i2GRFXE..GYL1#201104-201106

sub17700-31802

main17700-31802i2GRFXE..GYL1#201107-201203

17705CAP SUB-ASSY, AIR CLEANER

main17705-31320i1ARFE..AGL10200812-201205

sub17705-31321

sub17781-31040

main17705-31321i1ARFE..AGL10201205

main17705-31330i2GRFXE..GYL1#200903-201203

17710BGROMMET

main90480-18006i2GR#..GGL15,GYL1#200812-201203

17751INLET, AIR CLEANER, NO.1

main17751-31290i2GRFE..GGL15200812-201203

main17751-31300i2GRFXE..GYL1#200903-201203

main17751-36040i1ARFE..AGL10201008-201203

17752INLET, AIR CLEANER, NO.2

main17752-31100i2GRFE..GGL15200812-201203

main17752-31110i2GRFXE..GYL1#200903-201203

main17752-36020i1ARFE..AGL10201008-201203

17781SEAL, AIR CLEANER INLET

main17781-31040i2GRFE..GGL15201205

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31130i2GRFE..GGL15200812-201106

sub17801-31131

main17801-31131i2GRFE..GGL15201107-201509

main17801-31140i2GRFXE..GYL1#200903-201106

sub17801-31141

main17801-31141i2GRFXE..GYL1#201107-201509

17881HOSE, AIR CLEANER, NO.1

main17881-31220i2GRFE..GGL15200812-201203

main17881-31230i2GRFXE..GYL1#200903-201203

main17881-36090i1ARFE..AGL10201008-201203

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10400i2GRFXE..GYL1#200903-201203

NO.1

main96111-10900i2GRFE..GGL15200812-201203

main96111-10900i2GRFXE..GYL1#200903-201203

NO.2

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i2GRFE..GGL15200812-201203

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10850i1ARFE..AGL10201008-201203

17893RESONATOR, INTAKE AIR

main17893-31100i2GRFE..GGL15200812-201203

main17893-31110i2GRFXE..GYL1#200903-201203

main17893-36040i1ARFE..AGL10201008-201203

17893ACLAMP, HOSE

main96111-10380i2GRFE..GGL15200812-201203

main96111-10400i1ARFE..AGL10201008-201203

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i1ARFE..AGL10201104-201203

MARK 22204-0T040

sub22204-28010

main22204-0V010i2GR#..GGL15,GYL1#201104-201203

MARK 22204-0V010

sub22204-0V020

main22204-0V020i1ARFE..AGL10201104-201203

MARK 22204-0V020

main22204-28010i2GR#..GGL15,GYL1#201104-201203

MARK 22204-28010

main22204-37010i2GR#..GGL15,GYL1#200812-201103

sub22204-28010

9009900289

main90099-00289

9011906465

main90119-06465

9011906527

main90119-06527

9033903005

main90339-03005

9167180820

main91671-80820

91673A0616

main91673-A0616

23 parts on this diagram · 4 diagrams in section
