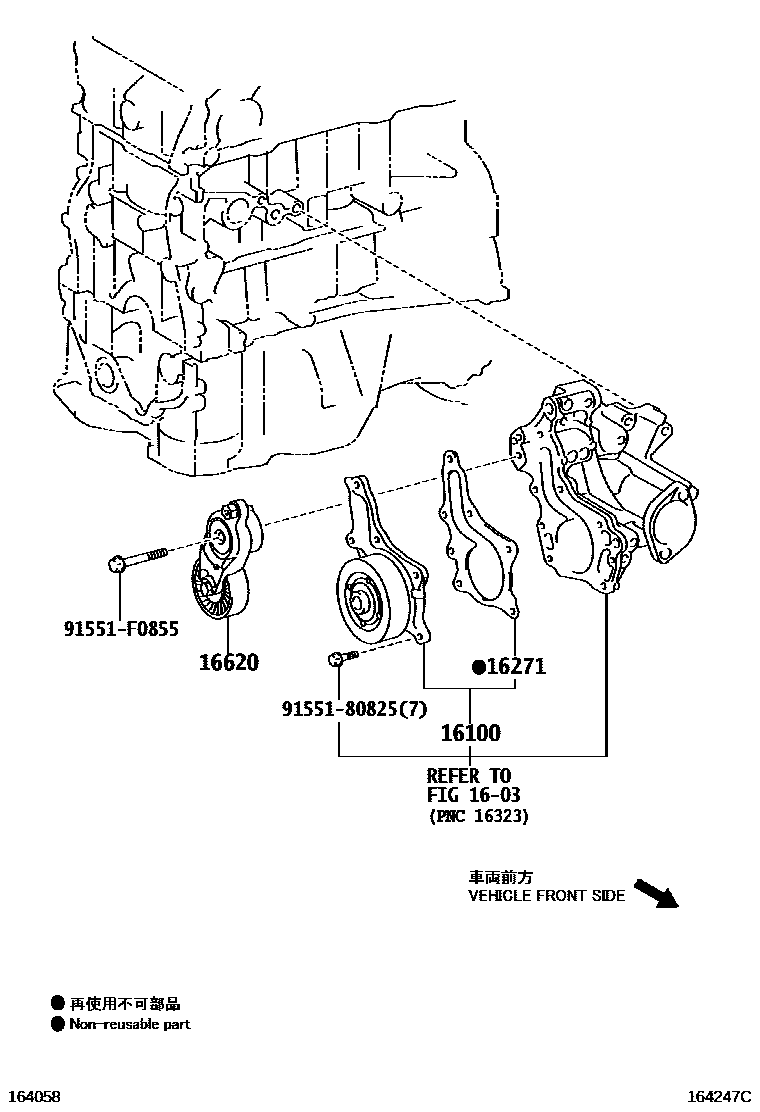

WATER PUMP

0001 1 0002 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39455i2GRFE..GGL15¥17,600200812-200903

sub16100-39456¥13,800

main16100-39456i2GR#..GGL15,GYL1#¥13,800200903-201203

main16100-39515i1ARFE..AGL10¥11,800201008-201203

sub16100-39516¥11,800

16271GASKET, WATER PUMP

main16271-31030i2GR#..GGL15,GYL1#¥1,360200812-201203

main16271-36010i1ARFE..AGL10¥610201008-201203

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31040i2GRFE..GGL15¥16,700200812-201203

main16620-31060i2GRFXE..GYL1#¥26,900200903-201108

main16620-31080i2GRFXE..GYL1#¥24,000201108-201203

main16620-36010i1ARFE..AGL10¥16,100201008-201402

sub16620-36011¥16,100

main16620-36011i1ARFE..AGL10¥16,100201402-201509

sub16620-36012¥13,400

9155180825

main91551-80825¥80

91551F0855

main91551-F0855¥100

6 parts on this diagram · 2 diagrams in section
