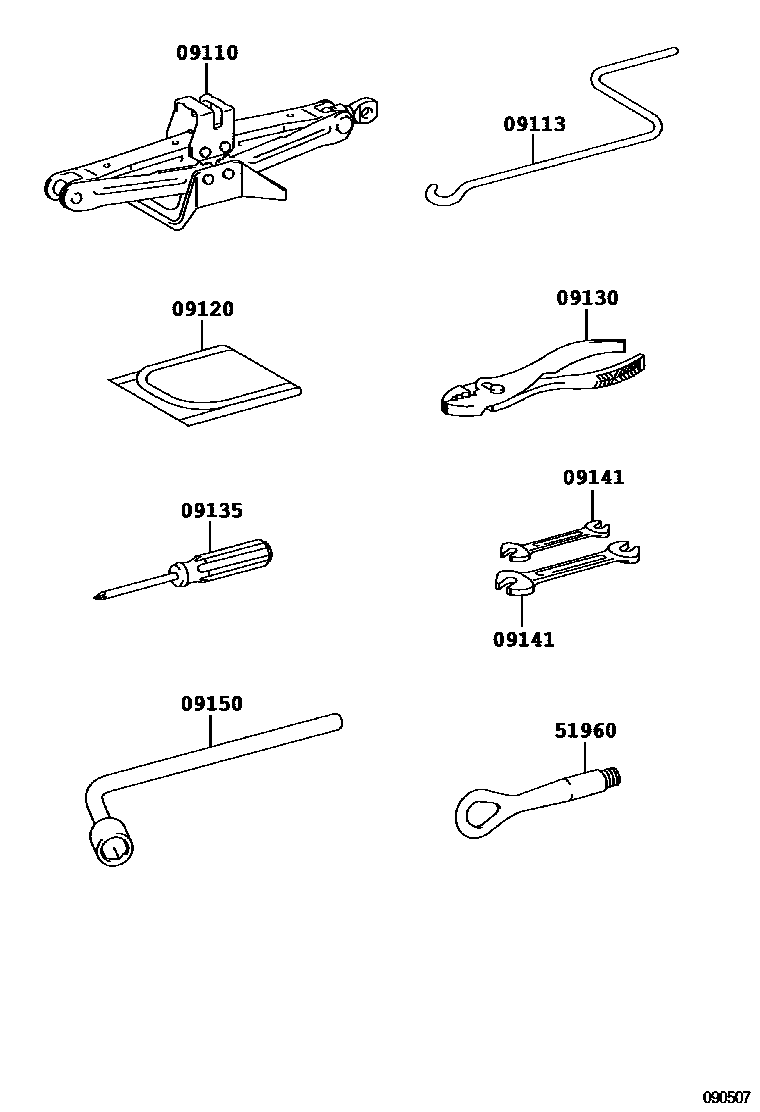

STANDARD TOOL

09110JACK ASSY

main09111-0E010iAGL10,GGL15,GYL1#200812-201108

main09111-0E011iAGL10,GGL15,GYL1#201109-201203

09113HANDLE, JACK

main09113-06020iAGL10,GGL15,GYL1#200812-201203

09120BAG, TOOL

main09120-48010iAGL10,GGL15,GYL1#200812-201403

09130PLIERS

main09130-50030iGGL15,GYL15200812-200906

main09130-50040iAGL10,GGL15,GYL1#200907-201310

main99913-11500iAGL10,GGL15,GYL1#201311-201403

09135DRIVER, SCREW

main09135-50050iGGL15,GYL15200812-200906

main09135-50060iAGL10,GGL15,GYL1#201001-201403

main99915-10700iGGL15,GYL1#200907-200912

09141SPANNER

main09141-50050iGGL15,GYL15200812-200906

8 X 10

main09141-50060iGGL15,GYL15200812-200906

12 X 14

main09141-60010iAGL10,GGL15,GYL1#200907-201208

8 X 10

main09141-60020iAGL10,GGL15,GYL1#200907-201208

12 X 14

main99914-10810iAGL10,GGL15,GYL1#201209-201403

8 X 10

main99914-11214iAGL10,GGL15,GYL1#201209-201403

12 X 14

09150WRENCH, HUB NUT BOX

main09150-48010iAGL10,GGL15,GYL1#200812-201509

main09150-76020iAGL10,GGL15,GYL1#201203-201206

51960HOOK ASSY, FRONT

main51961-48050iAGL10,GGL15,GYL1#200812-201109

sub51961-48051

main51961-48051iAGL10,GGL15,GYL1#201110-201203

8 parts on this diagram · 1 diagram in section
