NAVIGATION & FRONT MONITOR DISPLAY

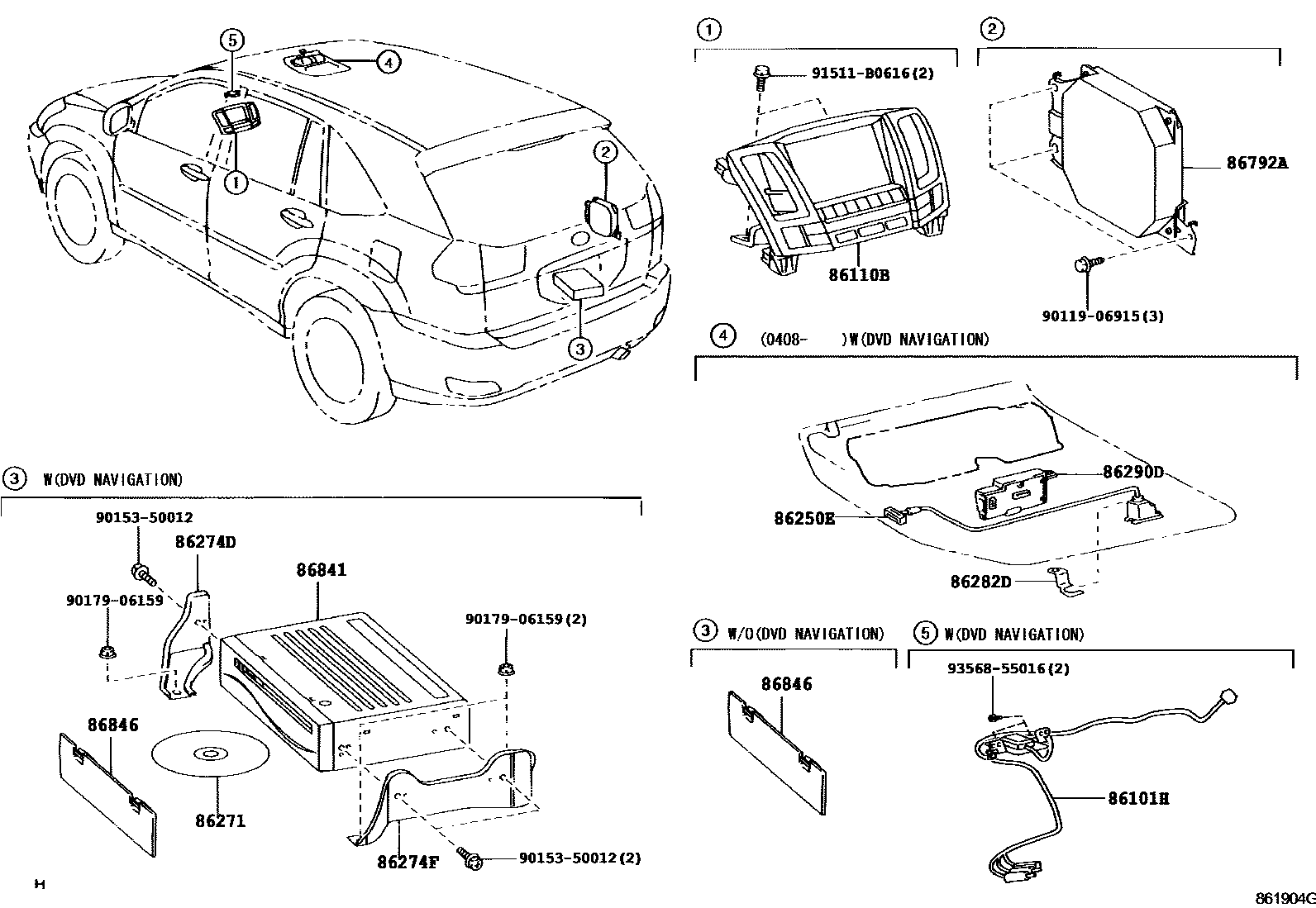

Parts diagram
86101HCORD SUB-ASSY, ANTENNA
main86101-48190i200302-200601
W/MOON ROOF&W/DVD NAVIGATION
main86101-48190i200302-200601
W/DVD NAVIGATION
main86101-48580i200601-200812
TAIWAN SPEC&SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86101-48580i200601-200812
TAIWAN SPEC&SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86101-48580i200601-200812
SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV& 05NAVIGATION)
main86101-48580i200601-200812
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
86110BMULTI-DISPLAY ASSY
main86110-48120i200302-200408
FUJITSU TEN,W/DVD NAVIGATION
main86110-48130i200302-200408
FUJITSU TEN,W/DVD NAVIGATION
main86110-48140i200302-200408
FUJITSU TEN,W/DVD NAVIGATION
main86110-48260i200408-200601
FUJITSU TEN,W/DVD NAVIGATION
main86110-48270i200408-200601
FUJITSU TEN,W/DVD NAVIGATION
main86110-48280i200408-200601
FUJITSU TEN,W/DVD NAVIGATION
main86110-48290i200408-200601
FUJITSU TEN,CHINA SPEC&W/DVD NAVIGATION
main86110-48330i200601-200812
FUJITSU TEN,EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
sub86110-48331
main86110-48340i200601-200812
FUJITSU TEN,EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
sub86110-48341
main86110-48350i200601-200812
FUJITSU TEN,EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
sub86110-48351
main86110-48360i200601-200812
FUJITSU TEN,CHINA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
sub86110-48361
main86110-48370i200601-200612
FUJITSU TEN,TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
sub86110-48371
main86110-48371i200701-200812
FUJITSU TEN,TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
sub86110-48372
86250EMICROPHONE ASSY, AMPLIFIER
main86250-48020i200408-200601
W/MOON ROOF&W/DVD NAVIGATION
main86250-48020i200408-200601
CHINA SPEC&W/MOON ROOF&W/DVD NAVIGATION
main86250-48030i200408-200601
W/MOON ROOF&W/DVD NAVIGATION
main86250-48040i200601-200812
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86250-48050i200601-200812
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86250-48060i200601-200812
SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV& 05NAVIGATION)
main86250-48070i200601-200812
SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86250-48070i200601-200812
SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV& 05NAVIGATION)
main86250-50060i200408-200601
W/DVD NAVIGATION
main86250-50070i200408-200601
W/DVD NAVIGATION
main86250-50070i200408-200601
CHINA SPEC&W/DVD NAVIGATION
86271DISC, DISC PLAYER
main86271-24111i200302-200308
W/DVD NAVIGATION
main86271-24121i200302-200308
W/DVD NAVIGATION
sub86271-24122
main86271-24122i200308-200311
W/DVD NAVIGATION
sub86271-24123
main86271-24123i200311-200408
W/DVD NAVIGATION
sub86271-24124
main86271-33060i200601-200608
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
sub86271-33061
main86271-33060i200507-200601
W/DVD NAVIGATION
sub86271-33061
main86271-33061i200609-200707
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
sub86271-33062
main86271-33062i200708-200808
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
sub86271-33063
main86271-33063i200808-200812
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
sub86271-33064
main86271-33070i200308-200311
W/DVD NAVIGATION
sub86271-53010
main86271-33071i200311-200507
W/DVD NAVIGATION
main86271-50870i200408-200409
W/DVD NAVIGATION
sub86271-50871
main86271-50871i200409-200507
W/DVD NAVIGATION
sub86271-33060
main86271-53010i200507-200601
W/DVD NAVIGATION
main86271-53010i200601-200609
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86271-53011i200609-200710
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86271-53012i200710-200810
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86271-53013i200810-200812
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86271-53030i200601-200609
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
sub86271-53031
main86271-53030i200507-200601
W/DVD NAVIGATION
sub86271-53031
main86271-53031i200609-200708
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86271-64011i200408-200409
W/DVD NAVIGATION
sub86271-64012
main86271-64012i200409-200507
W/DVD NAVIGATION
sub86271-53030
main86807-0N010i200408-200409
CHINA SPEC&MAP DISC(DOP)-WITH(DOP)
sub86807-0N011
main86807-0N011i200410-200503
CHINA SPEC&MAP DISC(DOP)-WITH(DOP)
sub86807-0N012
main86807-0N012i200504-200508
CHINA SPEC&MAP DISC(DOP)-WITH(DOP)
sub86807-0N013
main86807-0N013i200509-200601
CHINA SPEC&MAP DISC(DOP)-WITH(DOP)
sub86807-0W021
main86807-0W020i200601-200602
CHINA SPEC&MAP DISC(DOP)-MAP DISC(DOP)
sub86807-0W022
main86807-0W021i200603-200607
CHINA SPEC&MAP DISC(DOP)-MAP DISC(DOP)
sub86807-0W022
main86807-0W022i200608-200707
CHINA SPEC&MAP DISC(DOP)-MAP DISC(DOP)
sub86807-0W023
main86807-0W023i200708-200804
CHINA SPEC&MAP DISC(DOP)-MAP DISC(DOP)
sub86807-0W024
main86807-0W024i200805-200812
CHINA SPEC&MAP DISC(DOP)-MAP DISC(DOP)
sub86807-0W025
main86807-0W030i200601-200608
TAIWAN SPEC&MAP DISC(DOP)-MAP DISC(DOP)
sub86807-0W031
main86807-0W031i200609-200709
TAIWAN SPEC&MAP DISC(DOP)-MAP DISC(DOP)
sub86807-0W032
main86807-0W032i200710-200809
TAIWAN SPEC&MAP DISC(DOP)-MAP DISC(DOP)
main86807-0W033i200809-200812
TAIWAN SPEC&MAP DISC(DOP)-MAP DISC(DOP)
86274DBRACKET, DISC PLAYER
main86274-48090i200302-200601
W/DVD NAVIGATION
main86274-48090i200408-200601
CHINA SPEC&W/DVD NAVIGATION
main86274-48130i200601-200812
CHINA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86274-48130i200601-200812
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86274-48130i200601-200812
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
86274FBRACKET, DISC PLAYER, NO.2
main86274-48100i200302-200601
W/DVD NAVIGATION
main86274-48100i200408-200601
CHINA SPEC&W/DVD NAVIGATION
main86274-48140i200601-200812
CHINA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86274-48140i200601-200812
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86274-48140i200601-200812
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
86282DBRACKET, MICROPHONE
main86282-50040i200408-200601
W/DVD NAVIGATION
main86282-50040i200408-200601
CHINA SPEC&W/DVD NAVIGATION
main86282-50040i200408-200601
W/MOON ROOF&W/DVD NAVIGATION
main86282-50040i200408-200601
CHINA SPEC&W/MOON ROOF&W/DVD NAVIGATION
main86282-50040i200601-200812
SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV& 05NAVIGATION)
main86282-50040i200601-200812
SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86282-50040i200601-200812
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
86290DAMPLIFIER ASSY, MICROPHONE
main86290-48010i200601-200703
SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV& 05NAVIGATION)
sub86290-50020
main86290-48010i200601-200703
SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
sub86290-50020
main86290-48010i200601-200703
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
sub86290-50020
main86290-50020i200408-200601
CHINA SPEC&W/MOON ROOF&W/DVD NAVIGATION
main86290-50020i200408-200601
W/DVD NAVIGATION
main86290-50020i200408-200601
CHINA SPEC&W/DVD NAVIGATION
main86290-50020i200408-200601
W/MOON ROOF&W/DVD NAVIGATION
main86290-50020i200704-200812
SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV& 05NAVIGATION)
main86290-50020i200704-200812
SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86290-50020i200704-200812
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
86792ACONTROLLER, TELEVISION CAMERA
main86792-48030i200302-200407
W/DVD NAVIGATION
main86792-48031i200408-200601
W/DVD NAVIGATION
main86792-48050i200302-200407
W/DVD NAVIGATION
main86792-48051i200408-200601
W/DVD NAVIGATION
main86792-48140i200408-200601
CHINA SPEC&W/DVD NAVIGATION
86841COMPUTER, NAVIGATION
main86841-13020i200302-200408
W/DVD NAVIGATION
main86841-24020i200302-200408
W/DVD NAVIGATION
main86841-33070i200408-200601
W/DVD NAVIGATION
main86841-33090i200408-200601
CHINA SPEC&W/DVD NAVIGATION
main86841-48040i200601-200812
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86841-48060i200601-200812
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86841-48070i200601-200812
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86841-48080i200601-200812
CHINA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86841-48090i200601-200812
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
main86841-50100i200408-200601
W/DVD NAVIGATION
sub86841-50101
main86841-50110i200408-200601
W/DVD NAVIGATION
86846PLATE, NAVIGATION COMPUTER
main86846-48010i200302-200812
9011906915
main90119-06915
9015350012
main90153-50012
9017906159
main90179-06159
91511B0616
main91511-B0616

15 parts on this diagram · 2 diagrams in section
