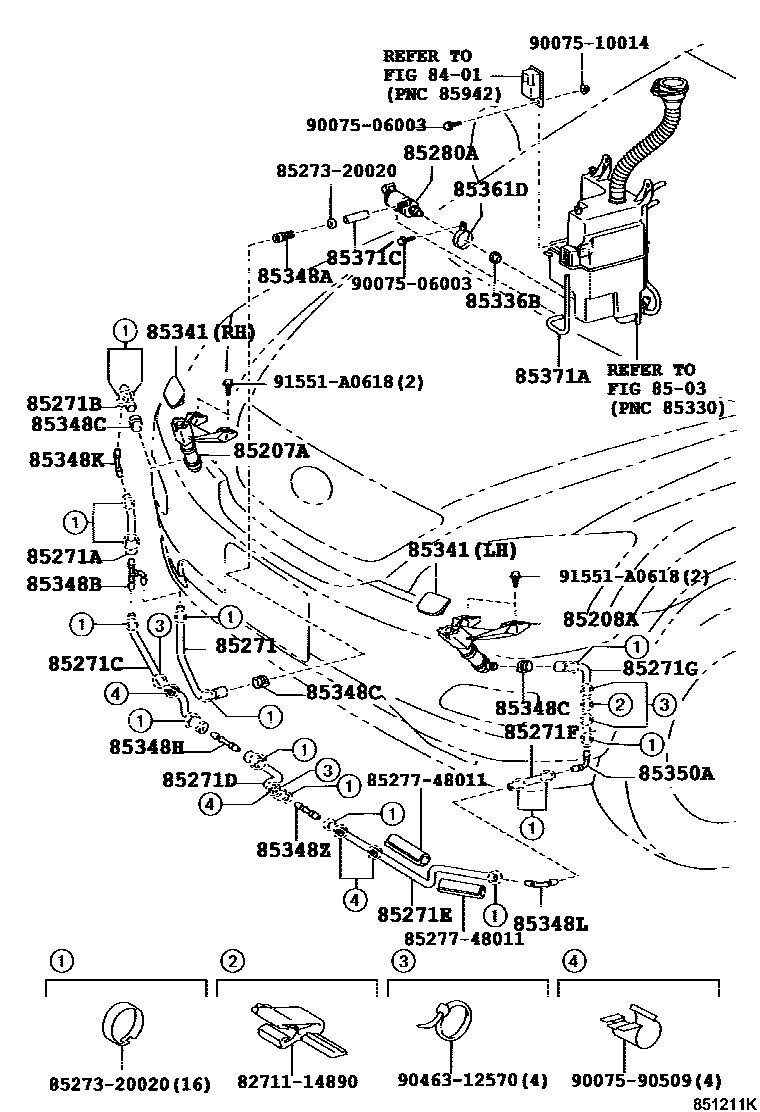

HEADLAMP CLEANER
8401
8503
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85271CHOSE, HEADLAMP CLEANER, NO.4
85271DHOSE, HEADLAMP CLEANER, NO.5
85271EHOSE, HEADLAMP CLEANER, NO.6
85271FHOSE, HEADLAMP CLEANER, NO.7
L=75
85271GHOSE, HEAD LAMP
sub85275-44050
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85336BPACKING, HEADLAMP CLEANER WASHER
85341NOZZLE, HEADLAMP CLEANER WASHER
WHITE PEARL CS.,062,RH
SILVER ME.,1C0,RH
DK.GRAY MC.,1E0,RH
SILVER ME.,1F7,RH
DK.GRAY MC.,1G0,RH
BLACK,202,RH
BLACK,212,RH
RED MC.CS.,3R1,RH
BEIGE ME.,4R4,RH
COPPER BROWN MC.,4S6,RH
BEIGE ME.,4T1,RH
SABLE M.M.,4T5,RH
LT.OLIVE M.M.,6T1,RH
DK.GREEN MC.,6T3,RH
MD.GREEN M.M.,6U3,RH
LT.BLUE ME.,8R6,RH
DK.BLUE M.M.,8R7,RH
LT.BLUE M.M.,8R8,RH
WHITE PEARL CS.,062,LH
SILVER ME.,1C0,LH
DK.GRAY MC.,1E0,LH
SILVER ME.,1F7,LH
DK.GRAY MC.,1G0,LH
BLACK,202,LH
BLACK,212,LH
RED MC.CS.,3R1,LH
BEIGE ME.,4R4,LH
COPPER BROWN MC.,4S6,LH
BEIGE ME.,4T1,LH
SABLE M.M.,4T5,LH
LT.OLIVE M.M.,6T1,LH
DK.GREEN MC.,6T3,LH
MD.GREEN M.M.,6U3,LH
LT.BLUE ME.,8R6,LH
DK.BLUE M.M.,8R7,LH
LT.BLUE M.M.,8R8,LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
85361DBRACKET, HEADLAMP CLEANER, NO.2
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85371CHOSE, HEADLAMP CLEANER, NO.1
L=40
8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14890
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8527748011HOSE, HEADLAMP CLEANER, C
main85277-48011
9007506003
main90075-06003
9007510014
main90075-10014
9007590509
main90075-90509
9046312570
main90463-12570
91551A0618
main91551-A0618
34 parts on this diagram · 1 diagram in section
