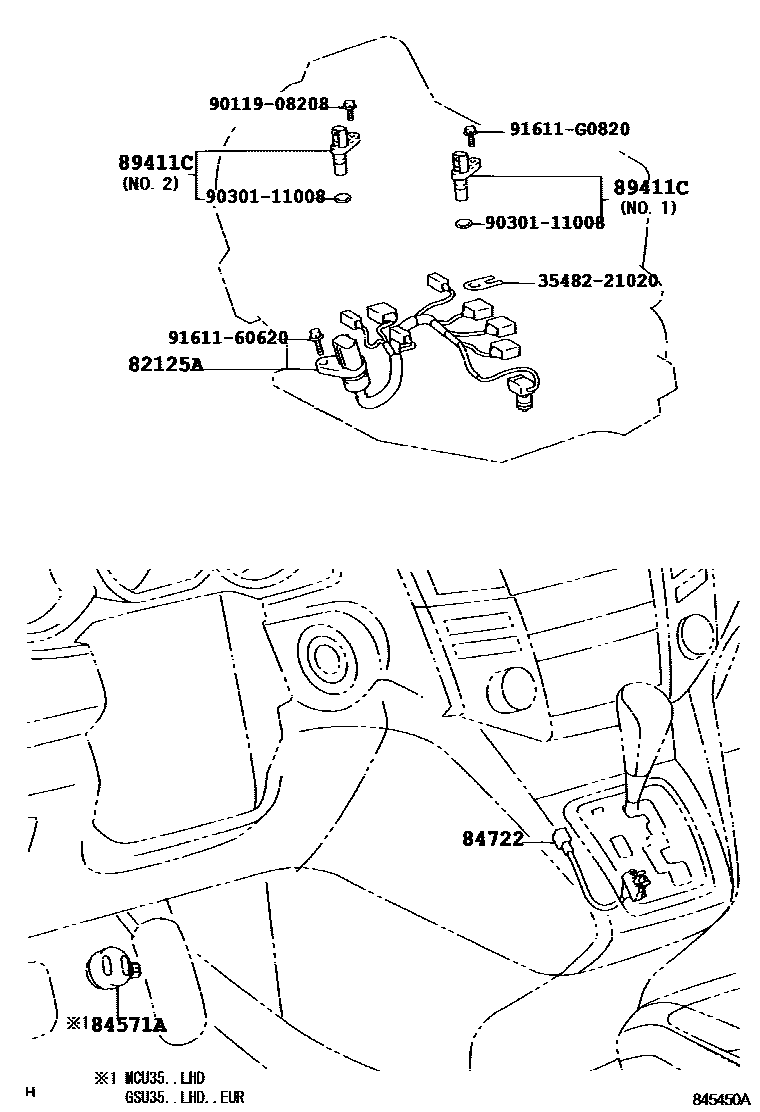

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

82125AWIRE, TRANSMISSION

main82125-33060iGSU35200302-200704

sub82125-48010

main82125-48010iGSU35200705-200812

84571ASWITCH, KICK DOWN

main84571-48010iMCU35..LHD200302-200812

CHINA SPEC

main84571-48010iMCU35..LHD200302-200812

TURKEY SPEC

main84571-48010iGSU35..LHD..EUR200601-200812

PHILIPPINE SPEC

main84571-48010iGSU35..LHD..EUR200601-200812

TAIWAN SPEC

84722SWITCH, TRANSMISSION CONTROL

main84722-48051iMCU3#..RHD200302-200812

main84722-48061iMCU3#..LHD200302-200812

89411CSENSOR, SPEED

main89411-33010iMCU3#200302-200309

NO.1,TOYOTA

sub89413-24010

main89413-24010iMCU3#200302-200601

NO.1,AISIN

main89413-24010iGSU35200601-200812

NO.1

main89413-48010iMCU3#200302-200812

NO.2

3548221020VALVE, GOVERNOR

main35482-21020

9011908208

main90119-08208

9030111008

main90301-11008

9161160620

main91611-60620

91611G0820

main91611-G0820

9 parts on this diagram · 2 diagrams in section
