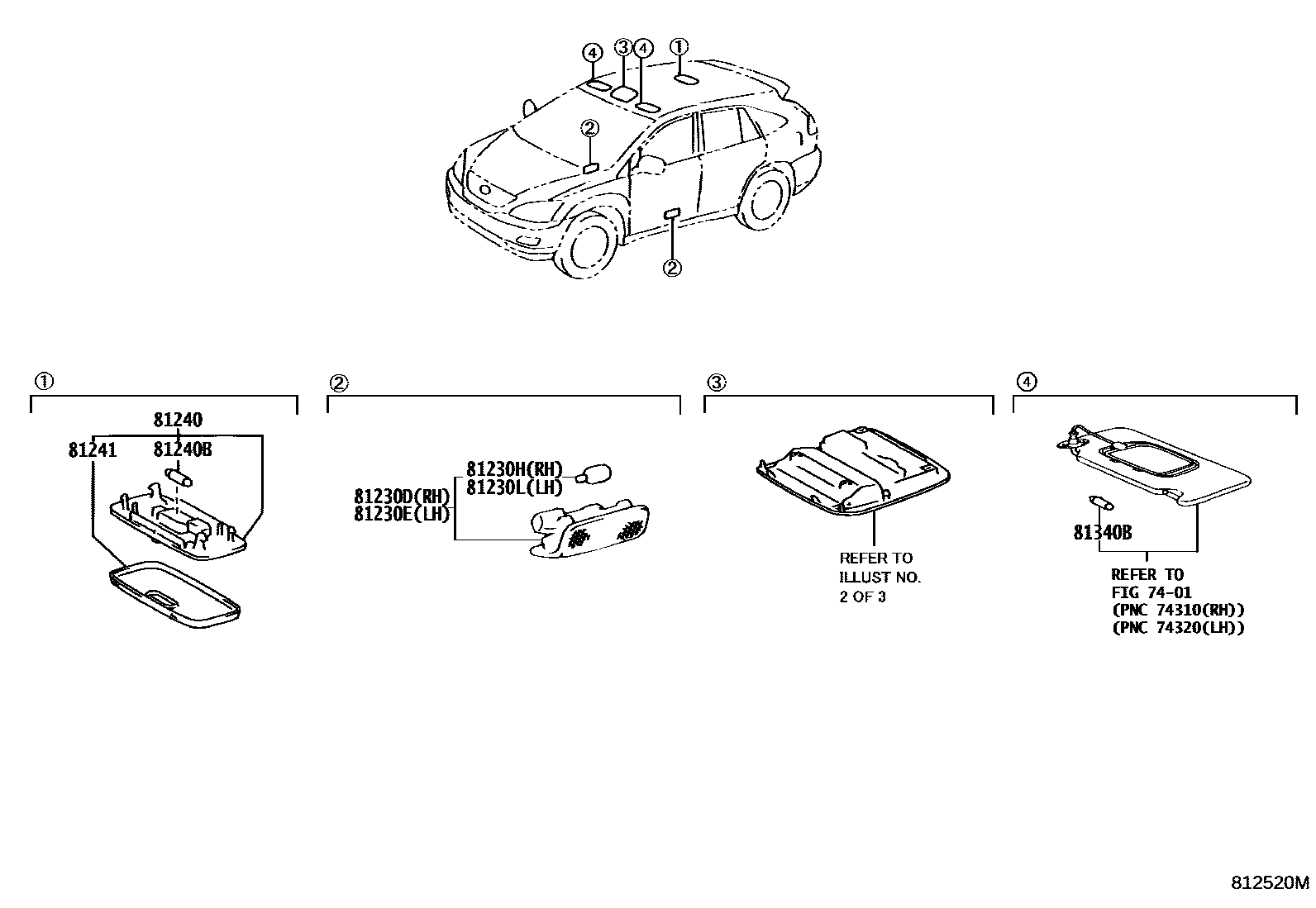

INTERIOR LAMP

0001 1 0002 1 0003 1

7401

81230DLAMP ASSY, FRONT DOOR COURTESY, RH

main81230-48020iMCU38200302-200601

main81230-48030iMCU35200302-200601

81230ELAMP ASSY, FRONT DOOR COURTESY, LH

main81230-48020iMCU38200302-200601

main81230-48030iMCU35200302-200601

81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)

main90981-12010×2iMCU3#200302-200601

12V 5W

81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)

main90981-12010iGSU35200601-200812

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-33030-A0iGSU35200601-200812

IVORY,TRIM0#

main81240-33030-B0iMCU3#200302-200601

LT.GRAY,TRIM1#,2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iMCU3#200302-200601

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-33030iGSU35200601-200812

81340BBULB (FOR VANITY LAMP)

main90981-AE001×2iGSU35200601-200812

14V 1.4W

9 parts on this diagram · 3 diagrams in section
